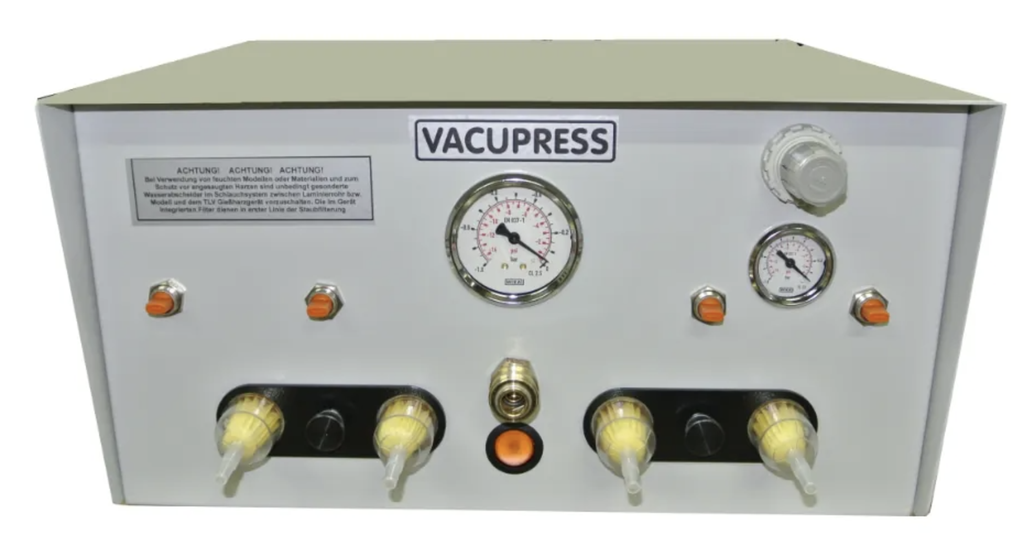

Laminating device TLV6-II PRO

Compact unit providing vacuum for two lamination workstations (4 individually switchable vacuum connections) plus 1 DIN coupling for thermoforming applications, equipped with an integrated vacuum pump and vacuum tank.

Type: Laminating device TLV6-II PRO
Vacuum pump: 6 m³/h, dry-running, oil-free and maintenance-free, final pressure 200 mbar
Connections: 4 × 8 mm, individually switchable; 2 of them with individual pressure control; 1 × DIN coupling for thermoforming work
Filter: Fine dust filter on each connection
Vacuum automation: Integrated as standard
Electrical connection: 230 V / 50–60 Hz
Dimensions: W 435 × D 390 × H 240 mm
Weight: 22 kg

Internal Reference: 121 W 008P
