Single Axis Pneumatic Knee Joint 6H29 with weight acti- vated stance control offers a safe and smooth gait for moderately and highly active users.
Pneumatic swing phase control with extension assist and independent flexion / extension adjustment may be set from regular to dynamic walking pace in the range up to 6 km/hour.
At the last 10° to full extension pneumatic damper has an additional feature that allows to reduce an angular rate and prevent an impact in extension phase.
Design of the pneumatic damper provides stability of settings for the entire operating period.
Knee joint is equipped with a weight activated brake mechanism that provides a secure stance phase and can be totally released when the weight is transferred to the forefoot without lifting the hip thus saving energy for dynamic pace.
Activity level: М1, М2, М3
Maximum flexion angle: 135°
Maximum weight of patient: 125kg
Material: Aluminium alloy
Weight: 890g

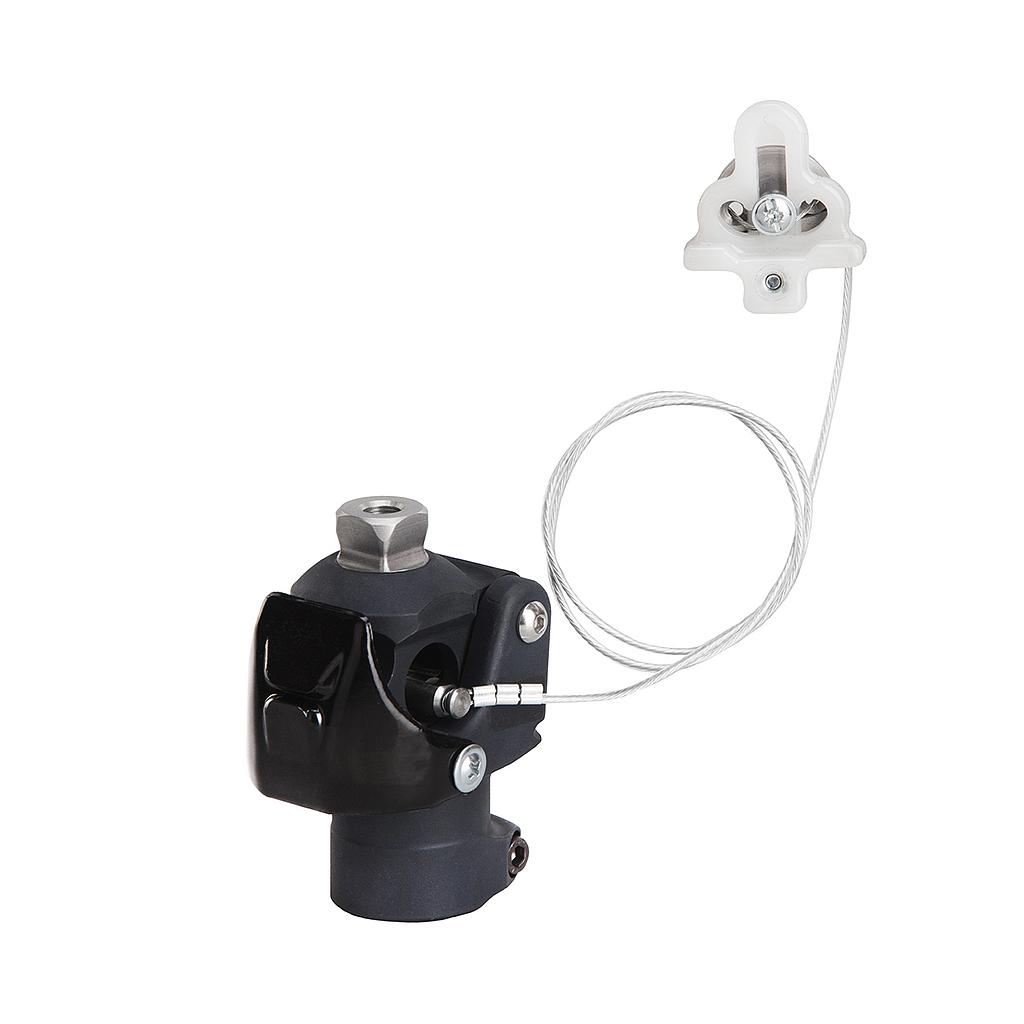

Single Axis Knee Joint with Lock 6H06A is intended for patients with low activity and maximum weight 125 kg, unilateral or bilateral amputations at any levels except of knee disarticulation.
The joint is provided with a locking device that locks the joint in extreme extended position thus ensuring a total secure at stance phase. Design of the joint eliminates backlash during operation due to design solution protected by patent of Russian Federation.
Flexible cable of the lock can be mounted on either the right or left side of the joint.
The knee joint is delivered with tube clamp of 30mm diameter (6H06A/3) but it is also available with pyramidal connection (6H06A/1).
Activity level: М1
Maximum flexion angle: 120°
Maximum weight of patient: 125kg
Material: Aluminum alloy
Weight: 295g

Single Axis Knee Joint with Lock 6H06A is intended for patients with low activity and maximum weight 125 kg, unilateral or bilateral amputations at any levels except of knee disarticulation.
The joint is provided with a locking device that locks the joint in extreme extended position thus ensuring a total secure at stance phase. Design of the joint eliminates backlash during operation due to design solution protected by patent of Russian Federation.
Flexible cable of the lock can be mounted on either the right or left side of the joint.
This knee joint is with the pyramid (6H06A/1) but it is also available with tube clamp of 30mm diameter (6H06A/3).
Activity level: М1
Maximum flexion angle: 120°
Maximum weight of patient: 125kg
Material: Aluminum alloy
Weight: 305g

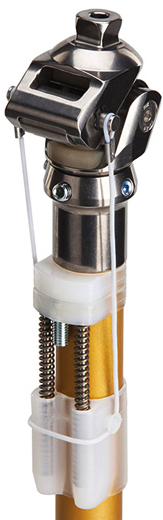

Single Axis Friction Knee Joint 6H02 is intended for patients with low and moderate activity, unilateral and bilateral amputations or disorder of support function of retained lower limb.
At angles of flexion up to 15 ° the further flexion of joint is blocked under the load that provides a secure stance phase.
The joint is fully released when unloaded, wherein the joint becomes movable again.
There is an adjustable extension assist with weight 60g.
Friction bearings of modern polymer material used in the knee joint provide the smoothness and compensate side play.
Activity level: М1, М2
Maximum flexion angle: 120°
Material: Stainless steel/Titanium
Maximum weight of patient: 125kg/150kg
Weight: 680g/480g

Mobility degree 2-3, Heel height 10mm, Max. load 100kg, Material PU

auch referenziert unter: OCPOFOOT1H...

Mobility degree : 1
Proximal & distal connection : Pyramid adapter
Knee flexion angle : 120°
System height : 82mm
Maximum body weight : 100kg
