Ultrasound therapy device, 1-3 MHz

https://www.atpsupply.org/web/image/product.template/5360/image_1920?unique=68819b1

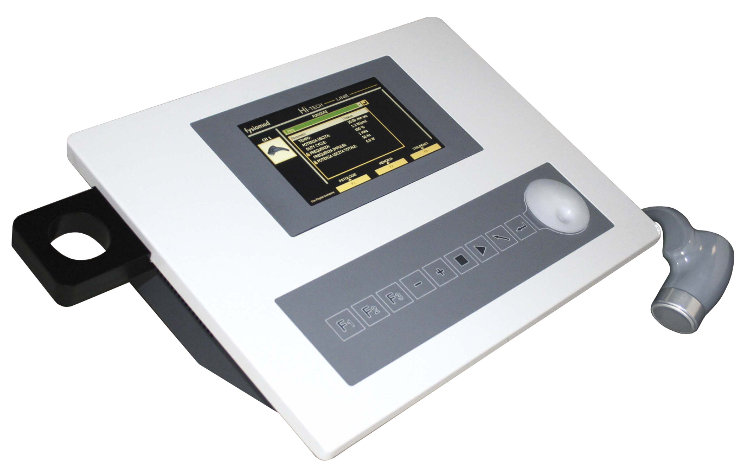

The new Sonic HT is an advanced and complete device for professionals allowing 1/3 MHz multifrequency ultrasound.
The Sonic HT is provided with a special ergonomic head capable to generate 1 or 3 MHz frequency but can also combine both frequencies allowing penetration into different cellular layers at the same time. Pulsed and continuous emission up to 15 W (3 W/cm²).
Provided with a special device attesting no-coupling and contact between the head and the patient's skin, with an acoustic and visual signal.
All the functions are visualized on a large color LCD. In addition to the usual and traditional keys and buttons, it is possible to adjust every parameter on the touchscreen.
The versatile Windows CE operating system ensures possible upgrading.

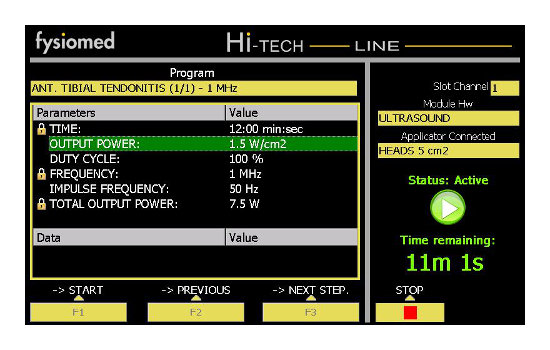

A wide range of preset protocols with body maps is available for setting most important therapies into the fields of physical therapy, sports medicine, orthopedics, vascular and aesthetic medicine.

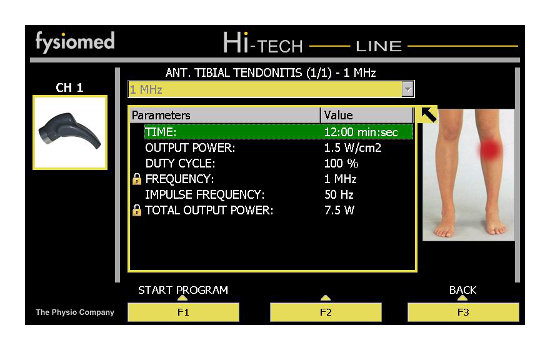

After a pathology is chosen, the screen will show the body parts to be treated and the unit will suggest the parameter values to set.

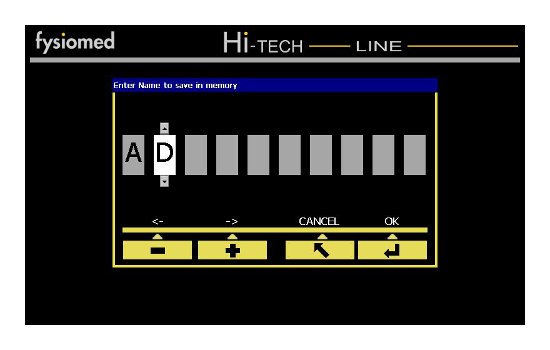

Free memories for entering customized protocols.

Technical Features
frequency: 1 - 3 MHz
modes: continuous and pulsed (from 20% to 80%)
modulation from 20 to 200 Hz
multifrequency head 5 cm²
intensity max.: 3 W/cm²
low BNR
contact control
color touchscreen 400 x 800 pixels
power supply: 115-230 V~ 50/60 Hz
consumed power: 80 VA
dimensions: 40 x 30 x 23 cm
safety class: class I type B according to IEC 601-1
Directive EEC 93/42: IIa

0.00 0.0 USD 0.00

1,869.80 CHF

Register to see prices

    This combination does not exist.


    Internal Reference: 00 K 90.1-3
