- Robust and sturdy three-wheel active wheelchair with a large rubber caster wheel, large 26” (66 cm) rear wheels, and a long wheelbase that allows for safe and stable mobility over uneven ground
- Provides a range of adjustable features to ensure optimal fitting and comfort
- Intended for use outdoors and for limited use indoors; suitable for use in rugged conditions and on uneven surfaces
- The length and weight of this wheelchair limits its ability to be transported easily
- Each chair comes with a foam pressure relief cushion, basic tool kit, and tire repair kit
- The Rough Terrain can be converted into a tricycle by attaching Motivation’s Clip-on Tricycle.
- Intended for active adult users, older adults (over 65 years old), and teenagers/older children who use the wheelchair as their primary method of mobility and do not require postural support that exceeds the support features of the Motivation Rough Terrain wheelchair

Can be easily installed onto the Motivation Rough Terrain wheelchair by user without transferring out of the wheelchair
Front wheel rolls easily over obstacles and provide a smooth ride
The pedal position can be adjusted horizontally by approximately 2″ (5 cm); vertical adjustment is fixed and is designed to suit most users
Kit includes tricycle attachment but does not include the Motivation Rough Terrain wheelchair
Strong V-brake style bicycle brake on the tricycle front wheel; standard parking brakes on the rear wheels of the wheelchair
Standard bicycle chain is included; chain tension is adjustable
Includes basic tool kit
Simple single speed freewheel gear to suit most users
Certifications: ISO 13485, ISO 14001, CE mark
Important! This product is intended for use with the Motivation Rough Terrain wheelchair only. Use of this product with any other wheelchair will void the warranty.

- Size adjustable, active, four-wheel active wheelchair for semi-urban environments
- Wide casters are shock absorbing for a smoother ride over bumpy terrain
- Intended for use indoors or outdoors
- This wheelchair can be folded to facilitate storage and transportation
- Each chair includes a foam pressure relief cushion, basic tool kit, and tire repair kit
- Active adults, including older adults (over 65 years old), and older children/teenagers who use the wheelchair as their primary method of mobility
- Users without postural support needs

- Handles rugged terrain with ease
- Super-durable daily-use chair
- Designed for use in wide indoor spaces or outdoors
- Each chair comes with a pressure relief cushion and basic tool kit for maintenance
- Active adult users, including older adults (over 65 years old), teenagers, and older children who use the wheelchair as their primary method of mobility
- Users without postural support needs

Folding frame
Material: plywood
Solid seat with adjustable ischial-shelf cushion
Padded backrest
Adjustable back height
Side trunk supports
Tilting seating system
Tipping prevention
Abductor (knee separator)
Adjustable pelvic strap
Chest strap
Head support
Tray table
Adjustable footrest with ankle strap
Includes basic tool kit
Estimated assembly time: 30 minutes
Certifications: CE Mark, ISO 9000, ISO 13845

- Three-wheel rigid frame design with a long wheelbase that allows for safe, stable, and independent mobility
- Provides excellent postural support for children with postural support needs
- Designed for better performance over rough terrain, also suitable for indoor use
- The supportive seating system and rear wheels clip off to facilitate transportation in parts
- Each chair includes a basic tool kit and tire repair kit
Intended for children who require postural support to sit up straight, for good postural health and improved physiological function

- Three-wheel rigid frame design with a long wheelbase that allows for safe, stable, and independent mobility
- Provides excellent postural support for children with postural support needs
- Designed for better performance over rough terrain, also suitable for indoor use
- The supportive seating system and rear wheels clip off to facilitate transportation in parts
- Each chair includes a basic tool kit and tire repair kit
Intended for children who require postural support to sit up straight, for good postural health and improved physiological function

- Rigid frame, tilt-in-space pediatric wheelchair with supportive seating system
- Made in three sizes using one frame and three adjustable seating system size options
- Height and angle adjustable planar backrest and a depth and angle adjustable seat cushion
- Backrest and seat cushions made of firm urethane foam with comfort layer on a metal base. Water resistant fabric covers can be removed easily for washing
- Seat cushion has a length adjustable 20 mm tall pre-seat bone shelf
- Seat to backrest angle is adjustable
- Lateral pelvic and thoracic supports are height, width, and depth adjustable
- Contoured head support with bending ends for better lateral support. Headrest is height, depth, angle, and rotational adjustable
- Rigid steel frame can be grown to three widths: 11″ (28 cm), 12” (30 cm), and 14″ (36 cm)
- Tilt-in-space adjustable range: 0-15° with tools
- Polyurethane front 7.9” x 2” (20 cm x 5 cm) casters
- Standard bicycle wheels with 24” (61 cm) pneumatic tires, quick release axles and wheel locks
- Rear wheels have four positions to adjust the center of gravity
- Height, depth, and angle adjustable footplate made of shock resistance grade polypropylene with heel edge
- Height-adjustable armrests with polyurethane pads
- Calf strap, pelvic strap, and chest harness
- Includes plastic tray table with lock mechanism
- Abductors and anti-tippers available in the Modification Kit
- Certifications: ISO 13485
- Passed ISO 7176

Tubular steel frame, with aluminum components and zinc plated steel fasteners
Rigid frame
A single medium size rubber castor wheel at the front and a long wheelbase to help the user to propel safely over uneven and inclined ground
Posturally supportive padded fabric backrest, with tensional adjustable straps
Adjustable backrest height
Adjustable footrest height, depth, and angle
Adjustable seat depth
Ergonomically positioned and height adjustable push handles with non-PVC grips
Includes curved armrests
Includes one calf strap
Pelvic strap included
Anti-tip wheel
Pneumatic, medium tread tires
Chromium plated steel pushrims
Quick release axles
Water resistant and fire retardant nylon fabric upholstery
Includes a contoured pressure relief cushion with a water-resistant, size adjustable cover
Easily collapsible for transport: the rear wheels can be removed, and the push handles can be lowered, without requiring tools
Reflective stickers in the front and back of the wheelchair
Certifications: ISO: 7176, including fire retardant foam and fabric; ISO 14001 (2018-2021); OHS180001 (2018-2021); and ISO 13845 (2019- 2022)

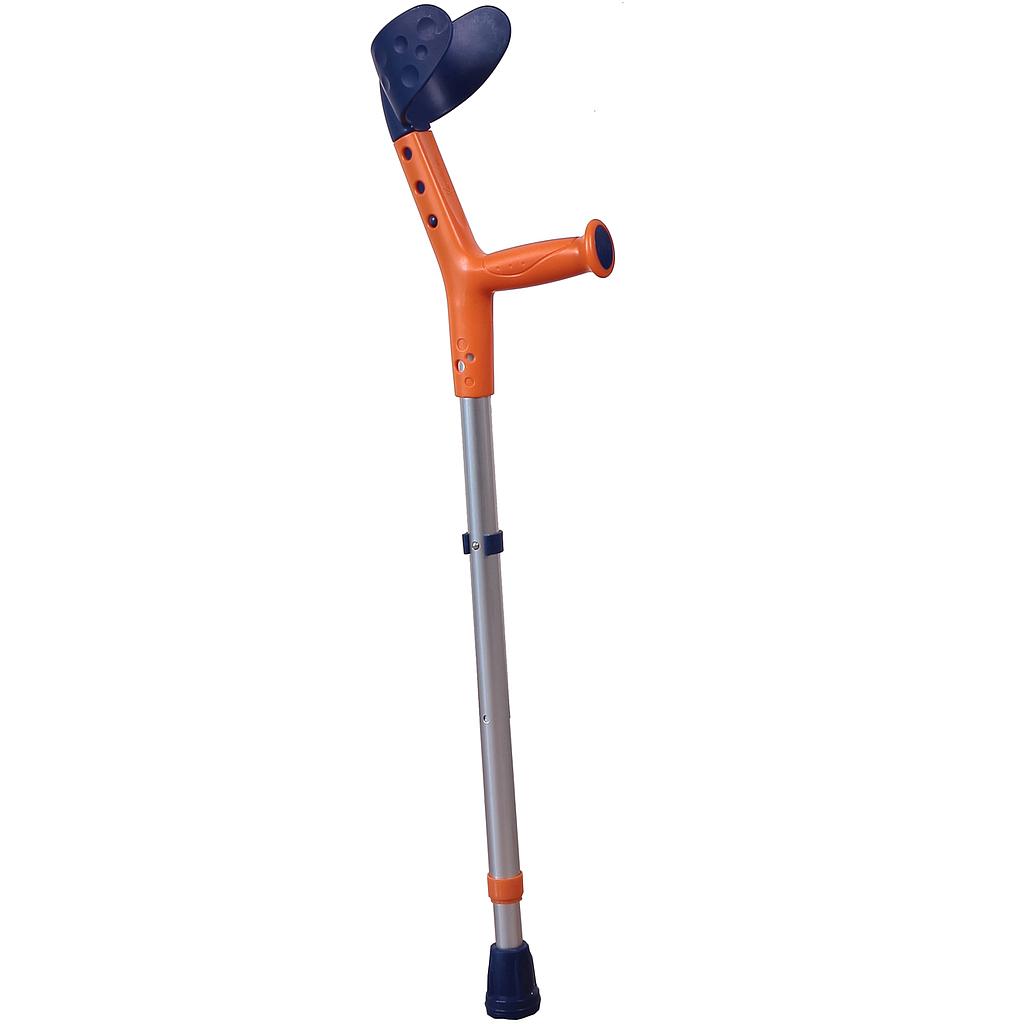

Playful with its variegated colors, and adaptable to all body types of children and adolescents, the Tiki cane has a double adjustment. Indeed, the handle as the tubes adjust in height to adapt to all children and adolescents. Tested and certified 100 kg per rod. French made.
Height, handle / ground: 55 / 77cm
Handle adjustment: 11-21cm
Cuff width: 7cm
Weight: 0.33kg

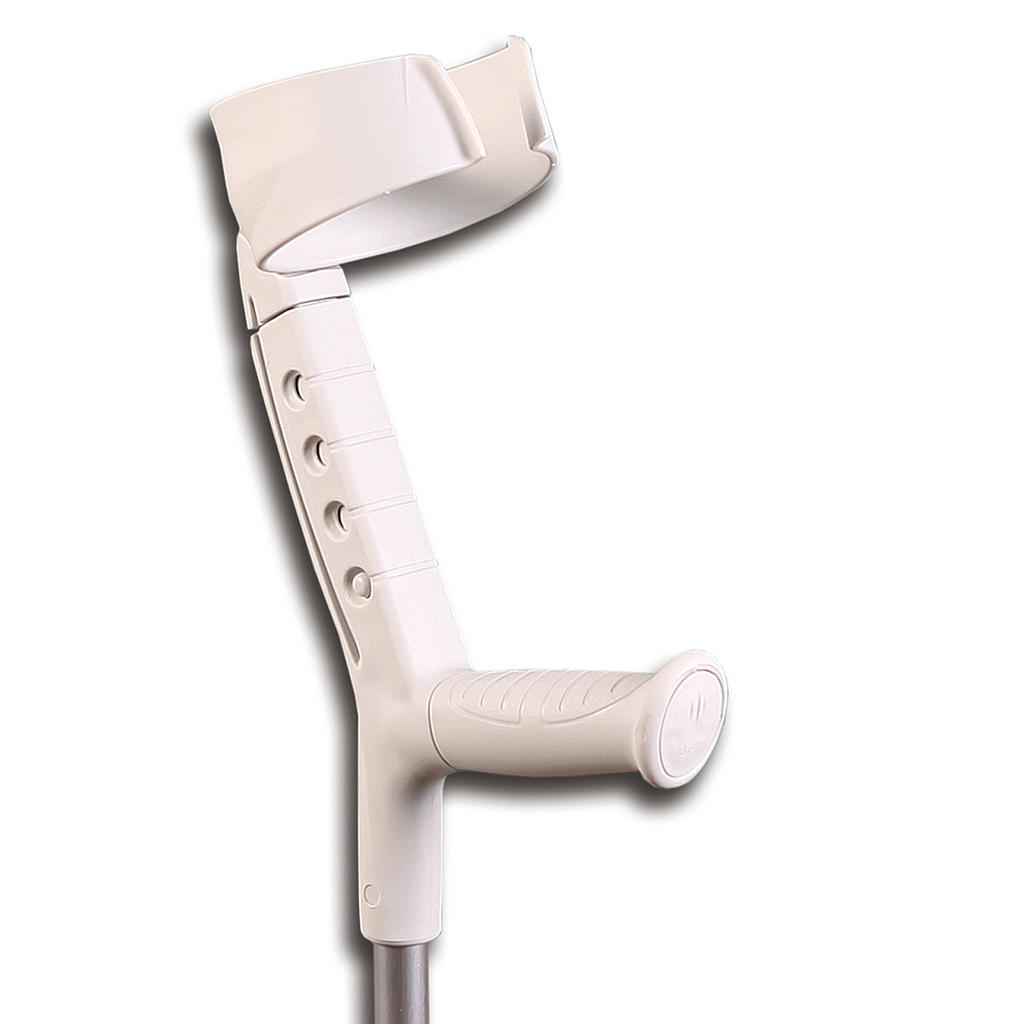

For tall and heavy-weight adults, the handle adjusts from
22 to 29 cm. This crutch is suitable for adults whose size
is between 1.60 and 2.15 m. Tested up to 150 kg.
• Progress is the strongest elbow crutch in the world
• Certified and tested up to 150kg
• Adjustable in height 10 times per clip
• Integrated anti-noise cap
• 4 cuff adjustments
Height, handle / ground: 79/101cm
Handle adjustement: 22/29cm
Cuff width: 11cm
Weight: 0.53kg

The Evolution and Fun canes benefit from the French know-how of a walking aid specialist. A design associated with optimal ergonomics, ensures a perfect grip of the hand and a correct positioning of the forearm. The lower tube is equipped with an anti-noise plug, and the clip allows a large range of adjustment. Each rod supports 130 kg and is certified by a reputable European laboratory (GsTüv Berlin). Available with different tips. Materials: Polypropylene and duraluminum.
Height, handle / ground: 77 / 98cm
Handle length: 10cm
Cuff width: 11cm
Brachial support height: 22cm
Weight: 0.51kg

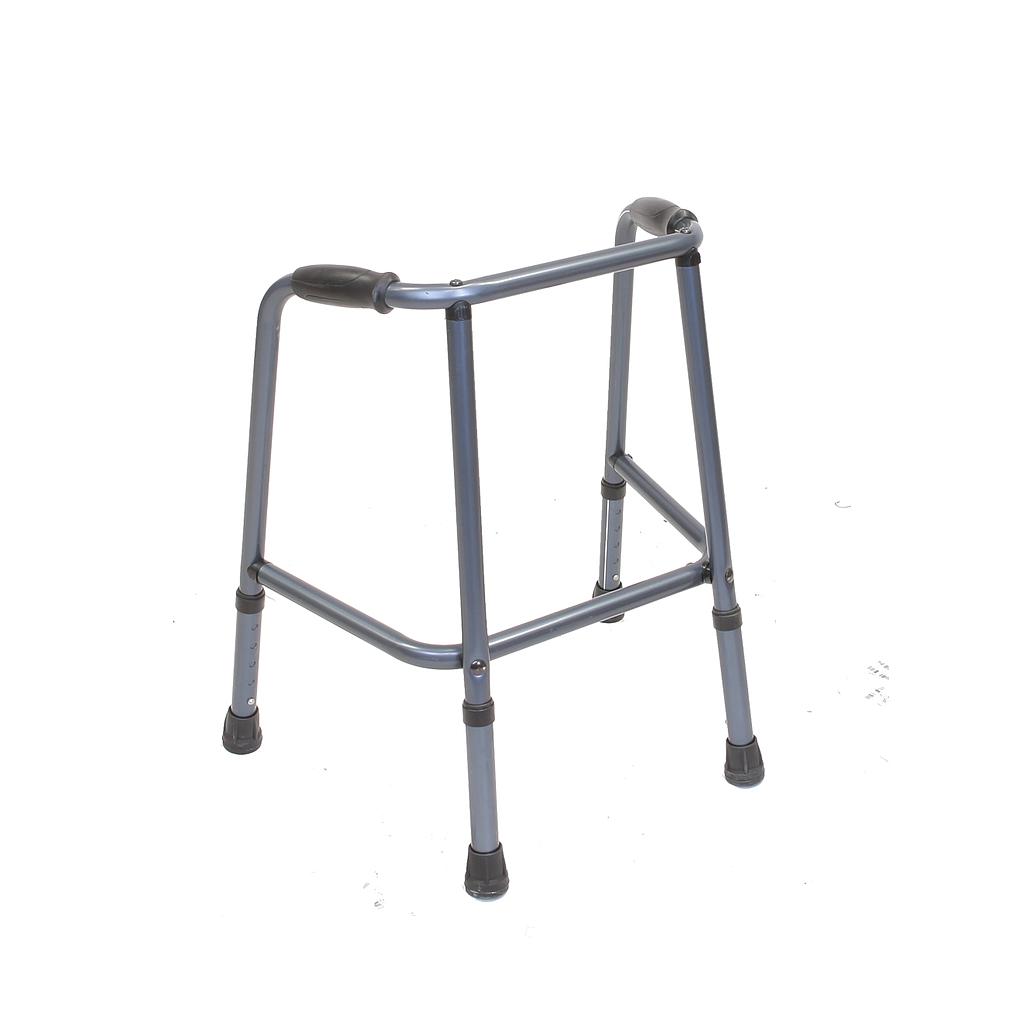

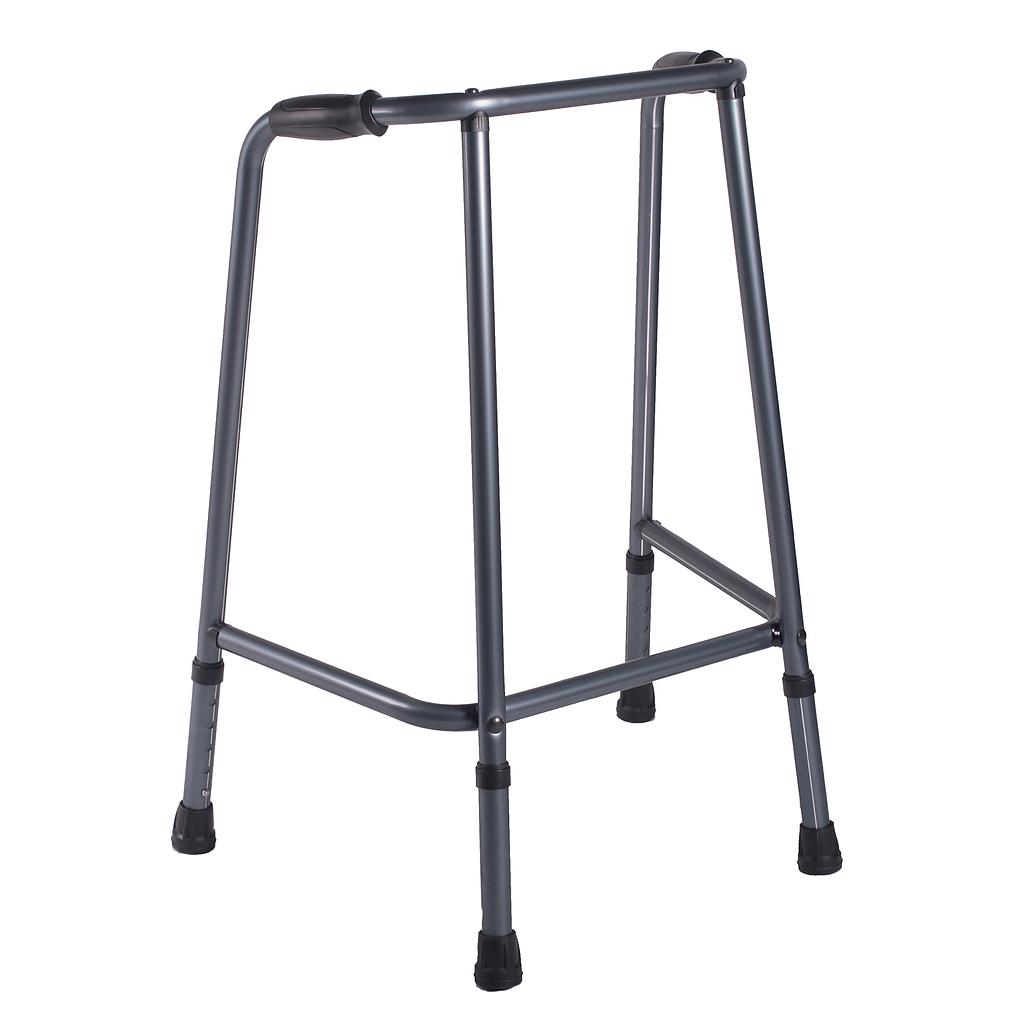

"Made in France" aluminium walking frame made out of blue anodised aluminium. Diameter of pipes 25 mm. Inner steel reinforcement of the legs. Adjustable legs with a push button.
Height: 62 / 71cm
Max.weight user: 100kg

"Made in France" aluminium walking frame made out of blue anodised aluminium. Diameter of pipes 25 mm. Inner steel reinforcement of the legs. Adjustable legs with a push button.
Height: 81/91cm
Max.weight user: 130kg

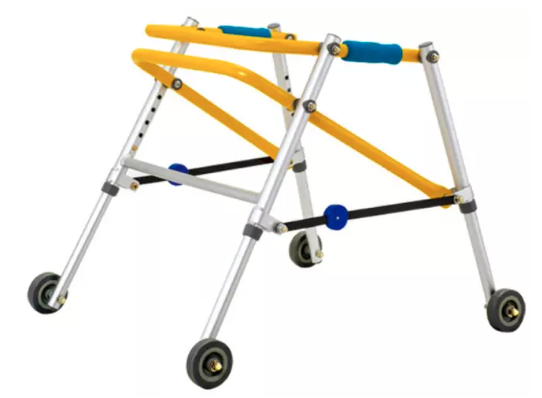

Can be configured to be used in both the posterior and anterior position
Customizable to the user’s preferred height
Lightweight and sturdy aluminum frame
Foldable
Two 3″ (7.6 cm) front wheels and two 3″ (7.6 cm) universal wheels
Front wheels are single direcion front and back only
Front wheels lock
PU handles
Color: Silver and yellow with blue grips
Cetificatitons: ISO 13485, ISO 9001, CE mark
Package information: 21.7″ x 5.9″ x 24″ (55 x 15 x 61 cm); 1 unit per carton

S - 42-51.5cm / max. 1m
M - 52.5-62.5cm / max. 1.2m

This hydraulic injection machine is an innovative solution for orthopedic centers looking to produce their own crutches and walking canes in an economical and sustainable way. With its high-performance 3500W system operating at 400V and a 9.2 Amps intensity, it enables precise and efficient injection of thermoplastic granules.

An Ecological and Circular Process
With this machine, orthopedic centers can recycle old polypropylene prosthetics into reusable granules, reducing costs and minimizing environmental impact. This process transforms used materials into functional and durable products, perfectly suited to patient needs.

Complete Kit:
✔ High-performance hydraulic injection machine for reliable operation
✔ Specialized tools kit for optimal use and maintenance
✔ Spare parts included to ensure maximum durability

Ideal for centers aiming to enhance their autonomy and offer affordable, sustainable mobility solutions.

also referenced under: OOMAOPRECR75, CRM 71

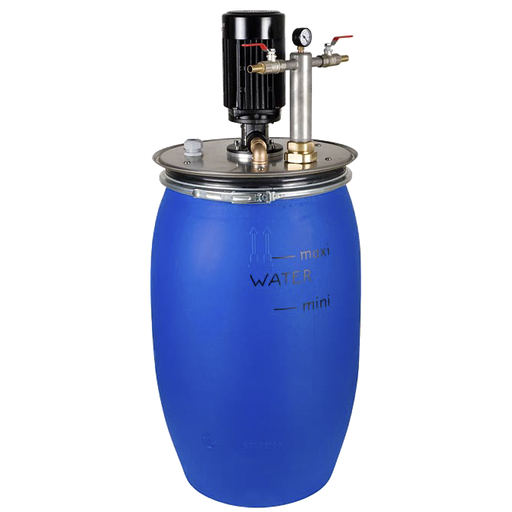

This water-based vacuum pump is specifically designed to meet the needs of orthopedic centers operating in resource-limited environments. Thanks to its water-operated vacuum system, it ensures exceptional durability and maintenance-free operation, reducing operating costs and downtime.

Technical Features:
✔ Power: 750W – Operates on 220V
✔ Vacuum Pressure: -0.85 to -0.1 mbar
✔ High-Quality Motor: Grundfos, known for its reliability and energy efficiency
✔ Includes connection kit for quick installation
✔ Supplied with 2 vacuum wrapping tubes: Big & Medium, suitable for different molding sizes

Why Choose This Vacuum Pump?
🔹 Minimal Maintenance: Unlike traditional pumps that require frequent servicing, this model operates with a water system, minimizing wear and mechanical failures.
🔹 Ideal for Demanding Environments: Designed to be resistant to harsh conditions, making it perfect for orthopedic centers in rural and urban areas of low- and middle-income countries.
🔹 Optimized Performance: Its Grundfos motor delivers powerful and continuous suction, ensuring excellent molding quality and increased productivity.
🔹 Easy and Quick Installation: Delivered with a complete connection kit, it can be set up without additional equipment.

Applications:
✅ Orthopedic molding production
✅ Thermoforming of prosthetics and orthotics

Thanks to its robust design and maintenance-free system, this water-based vacuum pump is a long-term investment for orthopedic healthcare facilities, ensuring smooth production and reduced maintenance costs.

also referenced under: OOMAVAPUCR10, CRM 56, CR 1000

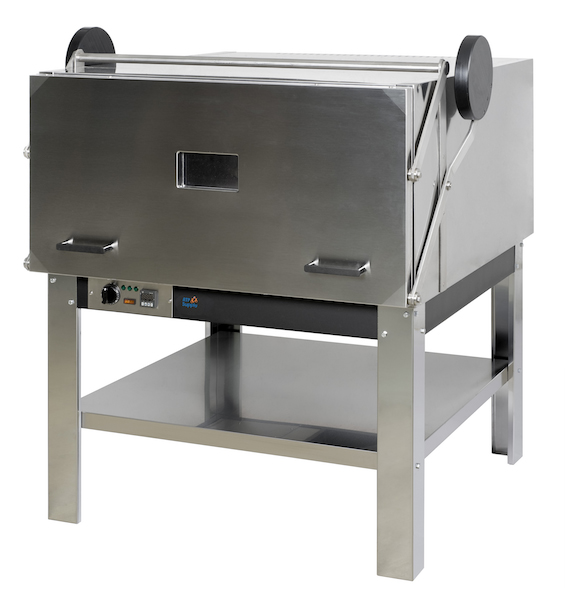

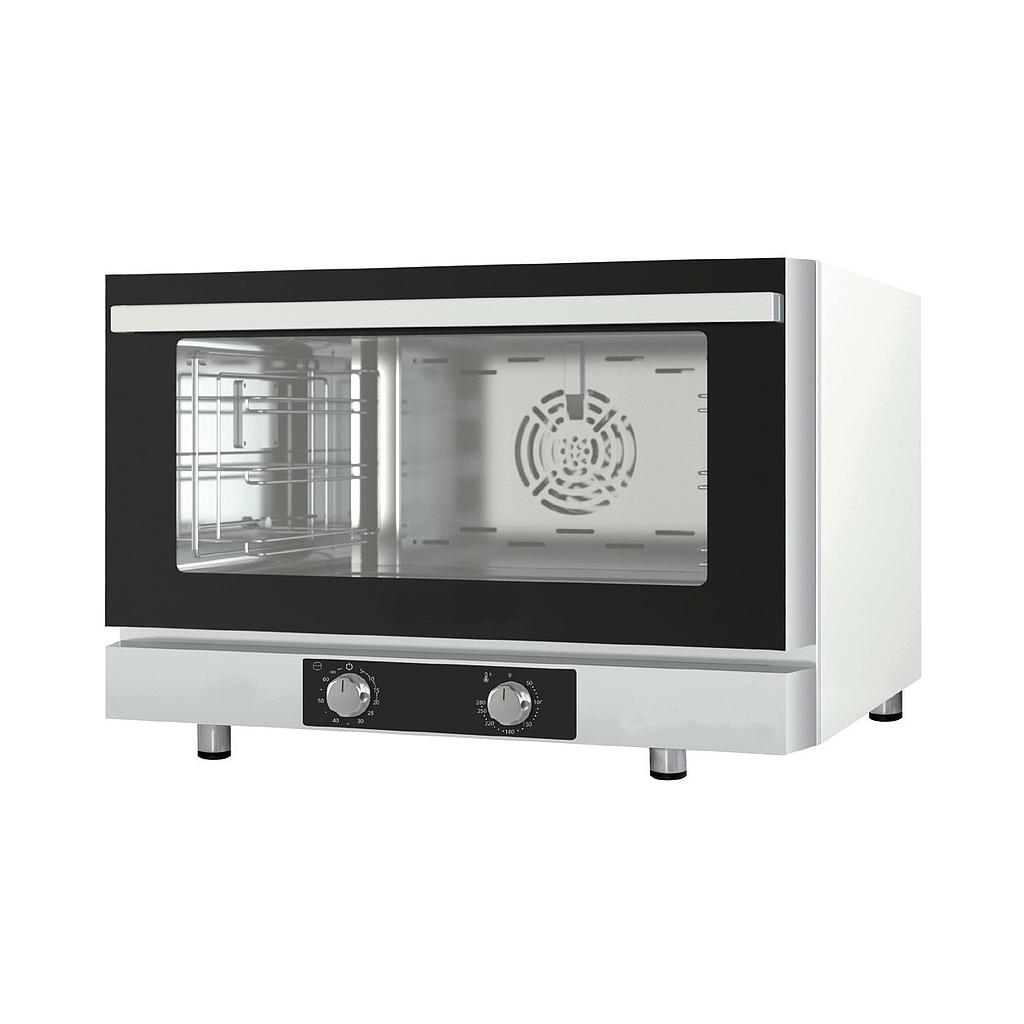

This high-performance convection oven is specially designed for orthopedic centers, providing uniform and controlled heating for plastic thermoforming and plaster model drying. Built with stainless steel, it ensures exceptional durability and efficient operation in demanding environments.

Features & Benefits:
✔ Advanced convection technology: Equipped with two powerful fans ensuring even heat distribution across the entire work surface.
✔ Optimized for thermoforming: Designed for use with outer rings, ensuring ideal heating for plastic sheets.
✔ Robust and durable construction: Made of stainless steel inside and out, ensuring excellent corrosion resistance and easy maintenance.
✔ Integrated support and storage:

Steel support frame for better stability.
Storage shelf for plastic sheets.
✔ User-friendly design:
Viewing window allows monitoring the process without opening the door.
Ergonomic and energy-efficient opening system, reducing heat loss.
Interior lighting for better visibility while working.
✔ Electronic heat regulation:
Precise control for optimal temperature management.
Adjustable temperature range from 30°C to 200°C.
✔ Smooth sliding system:
Aluminum sliding shelf, coated with Teflon sheets, mounted on ball-bearing rollers for easy and effortless handling.
Technical Specifications:
📏 External dimensions (L x W x H): 1450 x 1480 x 1500 mm
📏 Internal dimensions (L x W x H): 1200 x 1270 x 500 mm
📏 Work surface (L x W): 1100 x 1030 mm
🌡 Temperature range: 30°C - 200°C
⚡ Power requirements: 400V / 50Hz / 4.5 kW
⚖ Weight: 280 kg

Included with the Oven:
🔧 2-year warranty on spare parts, ensuring simplified maintenance and uninterrupted operation.

Thanks to its smart design and advanced features, this convection oven is an essential piece of equipment for orthopedic centers, guaranteeing precise thermoforming and effective drying of plaster models.

also referenced under: OOMAOVENCR50G, CR5000G

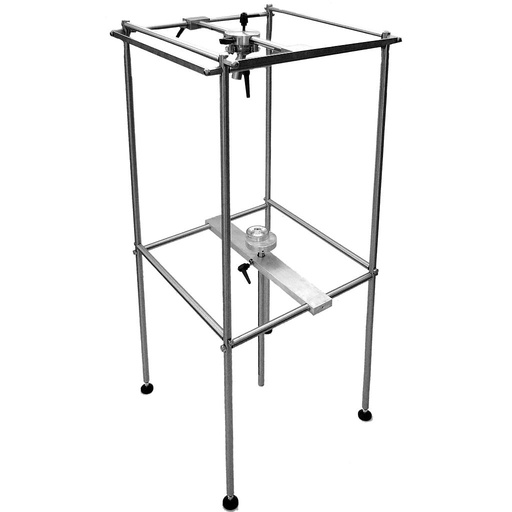

This prosthetic alignment frame is an essential tool for orthopedic centers, designed to precisely align the patient’s prosthesis using centering templates compatible with conical and cylindrical cups. Its robust and ergonomic design ensures a perfect positioning of the prosthetic limb, enhancing the patient’s stability and comfort.

Features & Benefits:
✔ Precise and secure alignment: Ensures optimal centering for a balanced posture and improved walking comfort.
✔ Universal compatibility:

Works with conical and cylindrical cups.
Suitable for transtibial and transfemoral prostheses.
✔ Robust and durable construction:
Reinforced steel structure for maximum strength.
Reduces manual adjustments thanks to increased assembly precision.
✔ Ease of use:
Intuitive centering system reduces installation time.
Compatible with various prosthetic systems.
✔ Ideal for orthopedic centers in low- and middle-income countries:
Optimizes the alignment process by minimizing errors.
Increases prosthetic fitting accuracy for better patient outcomes.
Applications:
✅ Precise prosthetic fitting and assembly
✅ Centering and stabilization of conical and cylindrical cups
✅ Improved patient comfort and mobility

With its ergonomic and robust design, this prosthetic alignment frame is an essential solution for ensuring precise and reproducible adjustments, allowing patients to benefit from a comfortable and perfectly aligned prosthesis.

OOMAALIGGJ

This knee insertion press is an essential tool for orthopedic centers, allowing for precise insertion of knee joint tubes into polypropylene transtibial and transfemoral modules. Designed for ergonomic and efficient use, it ensures optimal fixation while reducing the effort required to assemble the prosthetic components.

Features and Benefits:
✔ Precise and Secure Insertion: Allows perfect alignment of the knee with the tube, minimizing assembly errors.
✔ Optimized for transtibial and transfemoral prostheses: Ideal for mounting modular knees onto sockets.
✔ Robust and Durable Mechanism:

Reinforced steel structure for increased strength.
Designed to reduce stress on the components, preventing tube or joint deformation.
✔ Ease of Use:
Assisted insertion system saves time and effort. Compatible with multiple prosthetic tube diameters.
✔ Suitable for orthopedic centers in low- and middle-income countries:
Reduces the need for complex tools.
Increases the reliability of prosthetic assembly through uniform insertion.

Thanks to its robust and ergonomic design, this insertion press improves the efficiency and precision of the prosthetic manufacturing and assembly process, ensuring reliable and reproducible results.

also referenced under: OOMAALIGMIM

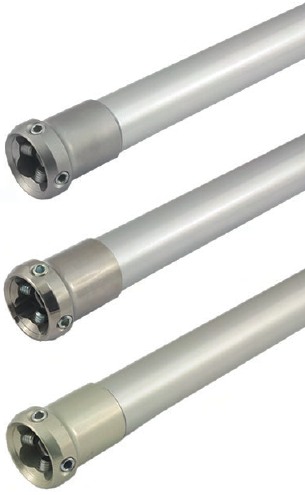

Adapter tubes used to connect lower extremity modular prosthetic parts.

also referenced under: OCPOMODUZ00021, 2R2

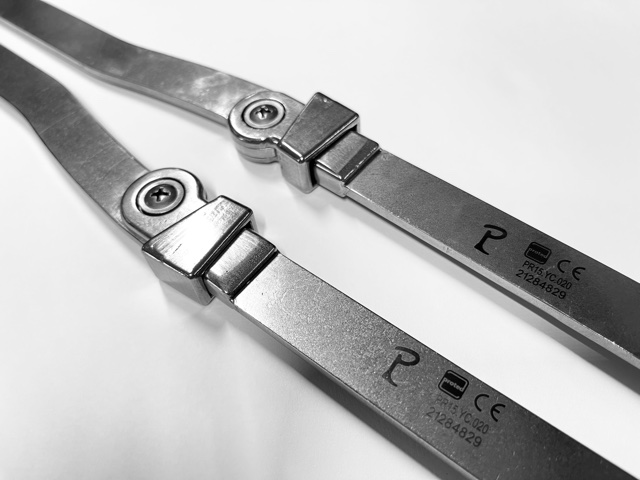

bar width: 21mm
bar thickness: 4mm
bar length: 317mm (Upper) / 292mm (Lower)
Material: Stainless Steel

bar width: 19mm
bar thickness: 4mm
bar length: 317mm (Upper) / 292mm (Lower)
Material: Stainless Steel

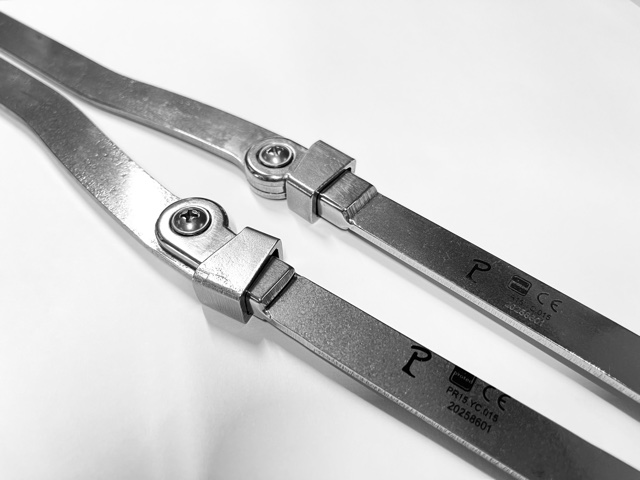

bar width: 14mm
bar thickness: 3mm
bar length: 317mm (Upper) / 292mm (Lower)
Material: Stainless Steel

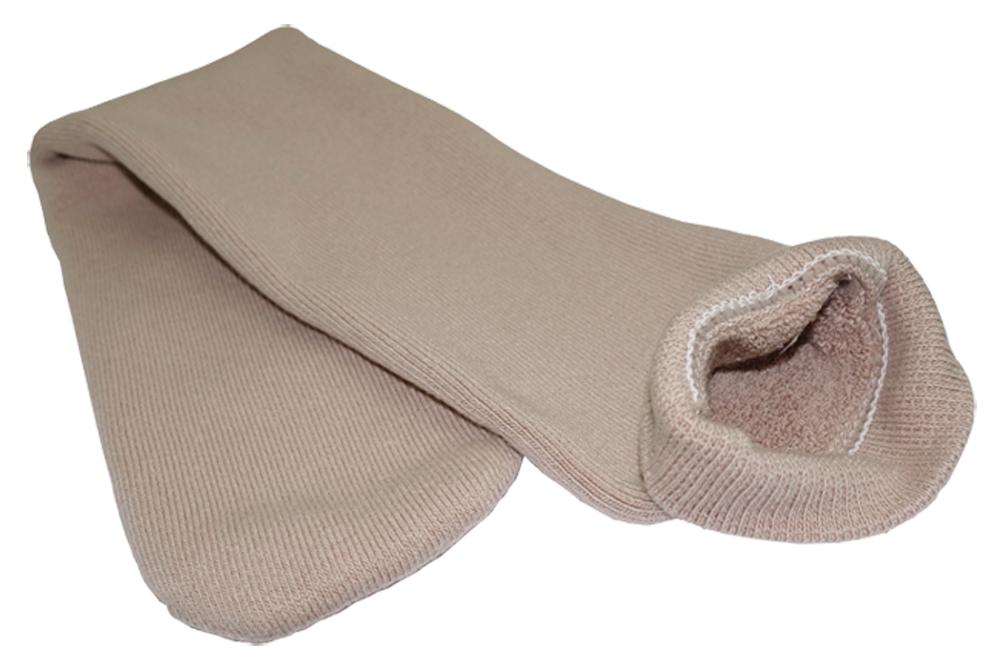

100% coton

100% coton

100% coton

100% Coton

100% coton

100% coton

Functions and benefits:
The Rehab'Impulse Prosthetic Foot SACH 2.0 (Solid-Ankle Cushion-Heel) is made of soft thermoplastic polyurethane moulded over a POM core. It is designed to provide the user with a cushioned heel and a flexible keel that offers a smooth rolling action during stance phase. The cosmetic toe allows wearing of sandals and gives the foot a natural appearance.

Intended use:
This product is intended for prosthetic fitting on adults with activity levels K1 (household ambulator) and K2 (limited community ambulator).

Compatibility:
The Rehab'Impulse Foot SACH 2.0 is compatible with standard modular technology and the Rehab'Impulse module system:

- 74-00137 Module system, Transtibial, Adult
- 74-00134 Module system, Transfemoral, Adult
- 74-00229 Module system, Long Stump, Adult
- 74-00227 Module system, Transfemoral Connector M10, Child

Included in delivery
- 1x Foot SACH 2.0, Adult
- 1x Socket head cap screw, stainless steel, M10x80mm
- 1x Ribbed lock washer M10

Storage conditions
- Store product in dry conditions
- Store at room temperature (ideally between 15°C and 25°C)
- Keep out of direct sunlight or other sources of light with a high UV content
- Take precautionary measures against sparking and fire

Environmental conditions:
Recommended environmental conditions:
- Temperature range for use : -10°C to 60°C (14°F to 140°F)
- Relative humidity 0% to 90%, no condensing situation
- Avoid exposure to dust, sand, salt water, acids and urine

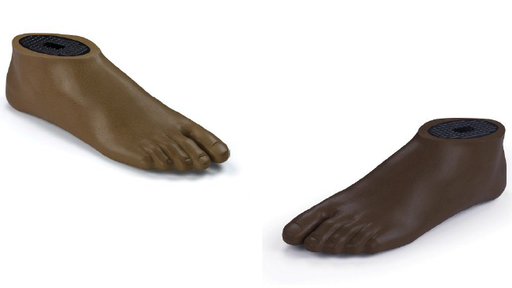

Functions and benefits:
The Rehab’Impulse Prosthetic Foot SACH 2.0 (Solid-Ankle Cushion-Heel) is made of soft thermoplastic polyurethane moulded over a POM core. It is designed to provide the user with a cushioned heel and a flexible keel that offers a smooth rolling action during stance phase. The cosmetic toe allows wearing of sandals and gives the foot a natural appearance.

Intended use:
This product is intended for prosthetic fitting on children with activity levels K1 (household ambulator) and K2 (limited community ambulator).

Compatibility:
The Rehab’Impulse Foot SACH 2.0 is compatible with standard modular technology and the Rehab’Impulse module system.

- 74-00221 Module system, Transtibial, Child
- 74-00223 Module system, Transfemoral, Child

Included delivery:
- 1x Foot SACH 2.0, Child
- 1x Socket head cap screw, stainless steel, M8x80mm
- 1x Ribbed lock washer M8

Storage conditions:
- Store product in dry conditions
- Store at room temperature (ideally between 15°C and 25°C)
- Keep out of direct sunlight or other sources of light with a high UV content
- Take precautionary measures against sparking and fire

Environmental conditions:
Recommended environmental conditions:
- Temperature range for use : -10°C to 60°C (14°F to 140°F)
- Relative humidity 0% to 90%, no condensing situation
- Avoid exposure to dust, sand, salt water, acids and urine

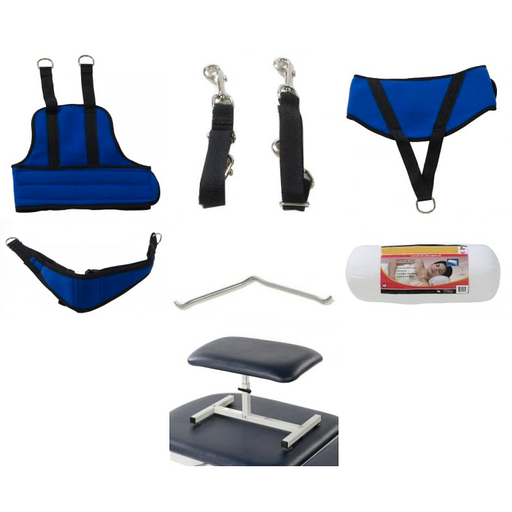

Contains:

Chest Strap
Set of Counter-Traction Straps
Pelvic Strap
Chin Strap
Spreader Bar
Round Pillow
Leg Rest Height Adjustable by Cylinder

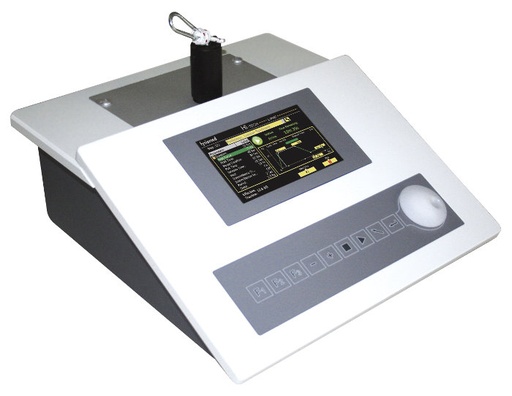

The Alfatrac HT is a complete microprocessor controlled traction unit for lumbar and cervical traction. The unit can work in continuous and intermittent mode. The operator can use a large number of preset treatments and has at his disposal a memory capacity up to 50 different personalized codes.
Choice between the following modes: static, progressive, regressive, cyclic, combined.
A patient emergency stop with remote control allows the patient to stop the session. A large LCD display shows the functions. An acoustic signal indicates the end of traction. Without accessories.

Technical Features:
- OS: Windows CE
- mains: 110-230V - 50/60 Hz
- consumed power: 80 VA
- maximum measurement range: cervical treatment 25 kg, lumbar treatment 90 kg
- treatment time: 1 - 60 min
- dimensions: 41 x 42 x 18 cm
- weight: 12 kg

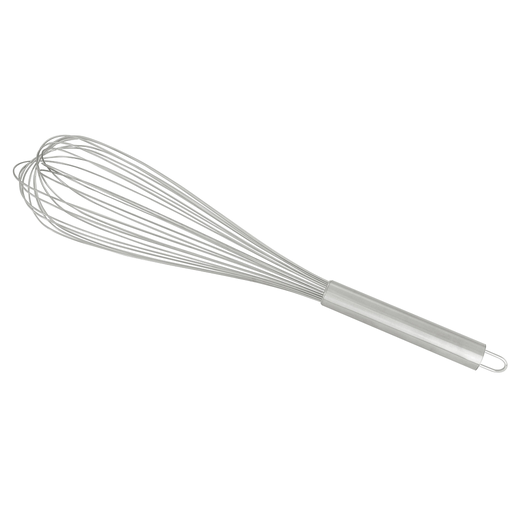

Wire thickness: 2.4mm, 8 wires

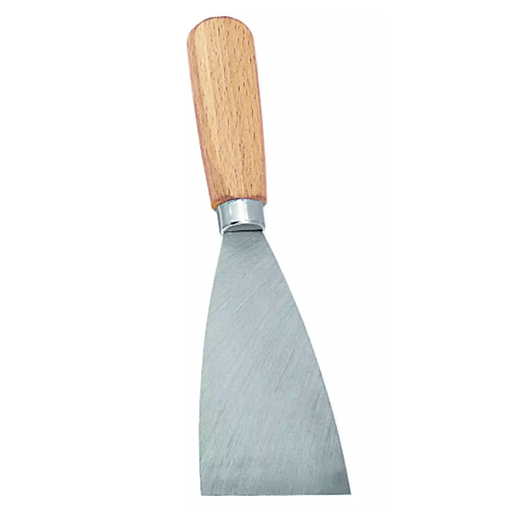

Elastic paddle in stainless steel strip, flat ovoid wooden handle.

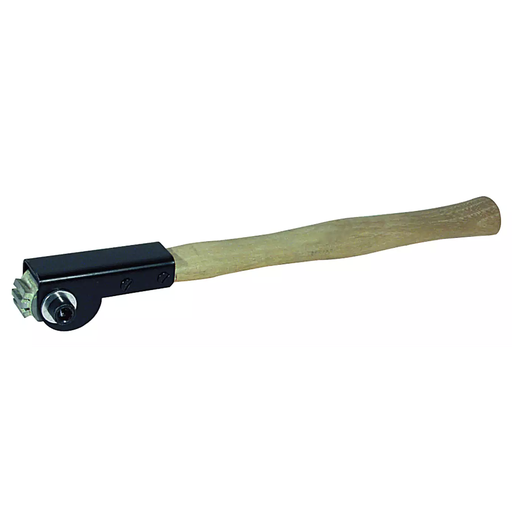

Robust and handy wooden handle. A solid metal cage prevents the projection of abrasive grains and sparks.
Use
For sharpening or rough dressing of grinding wheels.

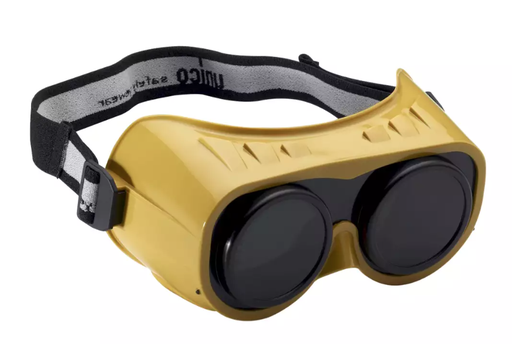

The multiple vents ensure good air circulation, which once again increases comfort.
Also suitable for glasses wearers.
- With glasses for green welders
- DIN EN 169

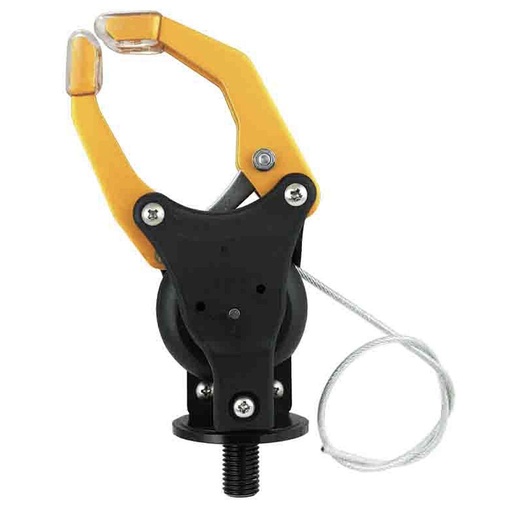

With perlon cable through the back of the hand (outer pull)
With threaded stud and inner hand

Max 100kg

Artificial leather, embossed, readily processable, very good wearing confort, no staining, not sensitive to light

Powerful oven for larger molds
The latest member of our convection oven line provides a larger inside width as the models No.1 and
No.2. The powerful combination of heating and fan allows a short preheating period and guarantees
a perfect heat distribution. In addition to the timer control the oven can be turned on permanently.

Heating: 4000W, fan motor with reversing rotation direction, Heating active light
Thermostat: infinitely up to 290°C
Timer: infinitely 0 - 60 minutes and permanent on, On/Off active light
Housing: Stainless steel, inside and outside, door with large double pane viewing window, opens down to the front, double side bouncy supports, 25W illumination
Accessories: 3 trays standard
Power supply: 400 V / 50Hz / 4,4 kW
Dimensions: outside: W 860 x D 780 x H 580 mm / inside : W 600 x D 400 x H 360 mm
Weight: 40 kgs

Space requirements WxD: 1400 x 800 mm
Power requirements: 400 V / 50 Hz / 1,27 kW / 1,7 kW
Noise level: 75 dB(A)
Power cord length: 2 m

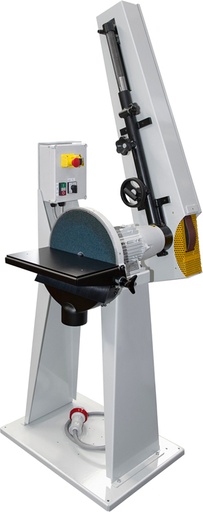

Weight: 134,000 kg
Calour: lichtgrau (RAL 7035)
Scope of delivery: with 1 Sanding belt (2500 x 50 mm), 1 round grinding plate, 2 m power cord with CEE plug
Sanding belt speed: 15/30 m/sec
Dimension upper part W x D x H: 1000 x 500 x 1622 mm
Description: left side: aluminium plane wheel 350 mm Ø, continuous, inclinable support table, folding down at the side for full use of the grinding surface, extraction connection piece 100 mm Ø to connect to a chip extraction system with a minimum air velocity of 20 m/s right side: belt tensioning arm with closed protection hood, extraction connection piece 100 mm Ø, belt length 2500 mm, belt width 50 mm with round plate, contact wheel, sanding belt
