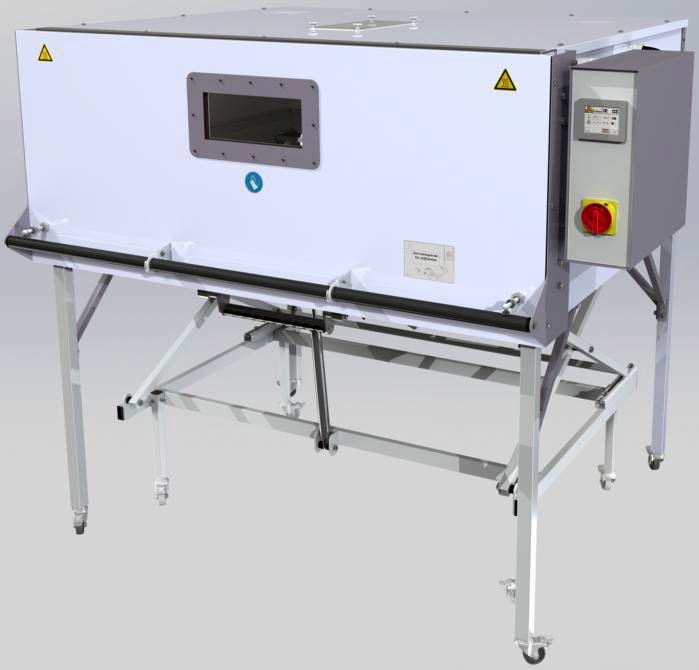

Oven infrared IR1303

https://www.atpsupply.org/web/image/product.template/2627/image_1920?unique=68819b1

including Rollabout Tray with integrated Blister Forming frame cradle
Heating with 18 Infraredt-Quartz-Tubes, Dual-Zone switching (6/18), Temp.
measurement of the Material surface by opto-electr. IR-sensor, infinitely adjustable
from 30 C to 250 C by SPS controller with PID feature, Software build 3.x with
maintenance info, programmable Ramp- and Timer-feature with an option to store
slowly raising heat processes, monitoring of the heating process by graphical trend,
tefloncoated (replaceable) Rollabout Tray, 4 casters with stop, height adjustable by
gas-shock (min. 820mm, max. 1050 mm), integrated Blister forming cradle, width
adjustable, retractable when not in use, vertical Frontdoor with double pane Window,
double gas-shock supported, Illum. by two 25W bulbs, integrated Pre-Preg hose duct
at the left side,
colour: RAL7035 (light-grey) / RAL7031 (blue-grey), net weight 290kg
Electr. Conn.: 380-400V / 50-60Hz / 3Ph. / 8,5kW (CEE 3x 16Amp.)
Dim.: outside HxWxD: 1400x1595x1270 mm
inside HxWxD : 500x1300x1090 mm

0.00 0.0 USD 0.00

11,198.00 CHF

Register to see prices

    This combination does not exist.


    Internal Reference: 112 W 000
