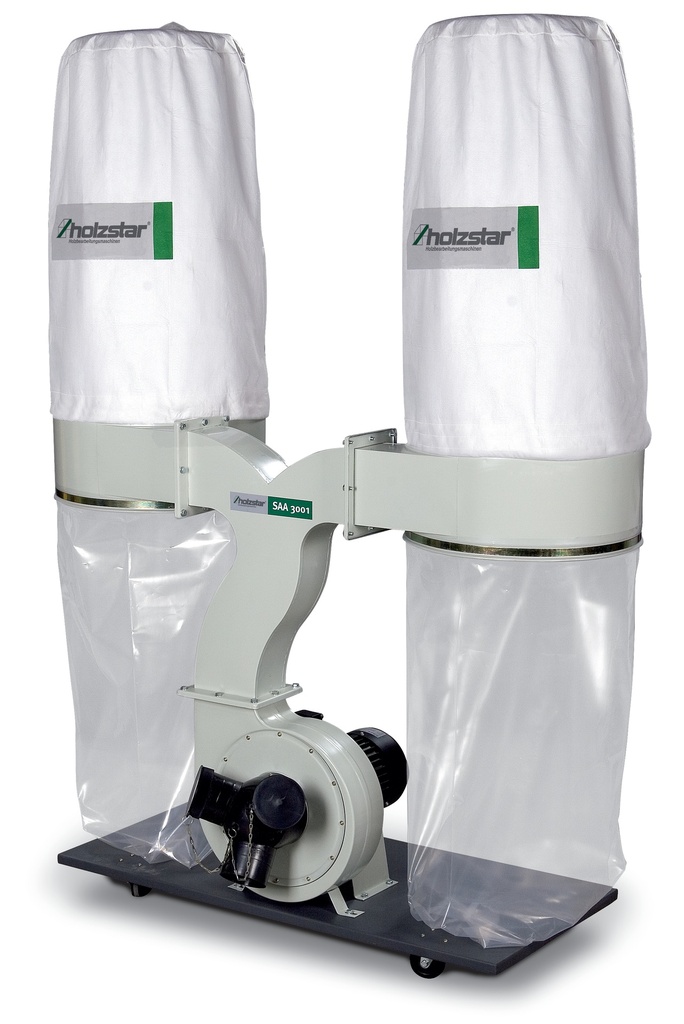

Double dust collector

Usage:
Designed for vacuuming chips generated from milling, planing, and sawing processes, offering improved machine efficiency and ensuring user health.

Main Features:

Fan impeller for high suction power.
High mobility thanks to standard driving equipment.
Easy fixing of bags with straps.
Dimensions and Weight:

Length: approx. 1450 mm
Width/depth: approx. 800 mm
Height: approx. 2000 mm
Net weight: approx. 48 kg
Extraction Duct Information:

Inlet nominal diameter: 150 mm
Outlet nominal diameter: 3 x 100 mm
Electrical Data:

Supply voltage: 230 V
Mains frequency: 50 Hz
Motor input power: 2.2 kW
Motor output power: 1.55 kW
Volume Flow:

Rated volume flow: 3910 m³/h
Maximum negative pressure: 1950 Pa

Internal Reference: 411 W 3001
