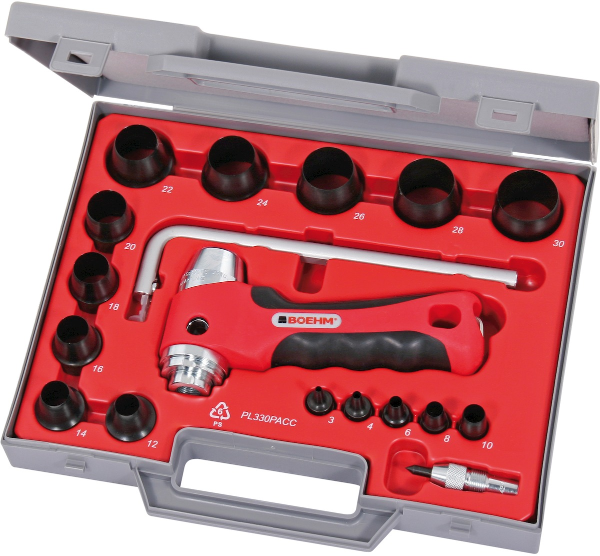

Wad punch set complete in a case 3-30 mm

https://www.atpsupply.org/web/image/product.template/2782/image_1920?unique=68819b1

2-component holder (up to size 3-20) with pistol handle with exchangeable precision ground punch cutters. For the production of gaskets two punch cutters of different ⌀ are inserted together in the holder.
For punching or manufacturing discs / rings in one operation. For rubber, leather, felt, plastic, cork, fabric or similar materials.
1 each circle cutter ⌀: 55−330 mm
Centring point No. 832140: 1 pc.
1× each punching tool ⌀ No. 832110: 15 pcs.
size 3; 4; 6; 8; 10; 12; 14; 16; 18; 20; 22; 24; 26; 28; 30
Available combinations of punches inner : outer (mm): 3−10 inner with 12−30 outer 12−20 inner with 22−30 outer
Container length×width×height (mm): Plastic 275×205×50
Use an underlay of wood, leather etc. when punching to avoid damage.
The following combinations are not possible: 20 (inner) with 22 (outer); 30 (inner) with 32 (outer); 40 (inner) with 42 (outer); 50 (inner) with 52 (outer).

0.00 0.0 USD 0.00

179.00 CHF

Register to see prices

    This combination does not exist.


    Internal Reference: 633 W 001.15
