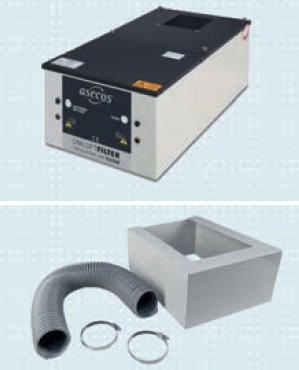

Air circulation filter attachment with activated charcoal filter
for: 758F200/758F220 Safety storage cabinet
Version: According to directive 2006/95/EC (Low Voltage Directive), directive 2004/108/EC (EMC Directive), directive 94/9/EC (ATEX) labelling: EX II 3/- G Ex ic nA IIB T4 Gc
Equipment: 760E14 Active carbon filter for filtering solvent vapours (hydrocarbons), filtration up to 99.99% under normal operating conditions, VDE* tested filter monitoring, VDE* tested exhaust monitoring, connection cable, mains plug *VDE: Association for Electrical, Electronic and Information Technologies
Dimensions WxDxH: 305 x 555 x 210 mm
Volume flow: 25 m /h
Material: Powder-coated thin steel sheet
Speed: 2.450 min-1
Sound intensity level: 39 dB(A)
Electrical connection in V/Hz/kW: 1 x 230 N/PE / 50-60 / 0.03
Weight: 17 kg
Colour: Light grey (RAL 7035)
To be used for: Ventilating security storage cabinets without additional exhaust ducts
Current draw: 0.13 A
Consumables: 760E14 Active carbon filter
Optional accessories: To be installed on 758F200 or 758F220 Security storage cabinet (760E13 adapter for air circulation filter needed)
Internal Reference:
760E11
