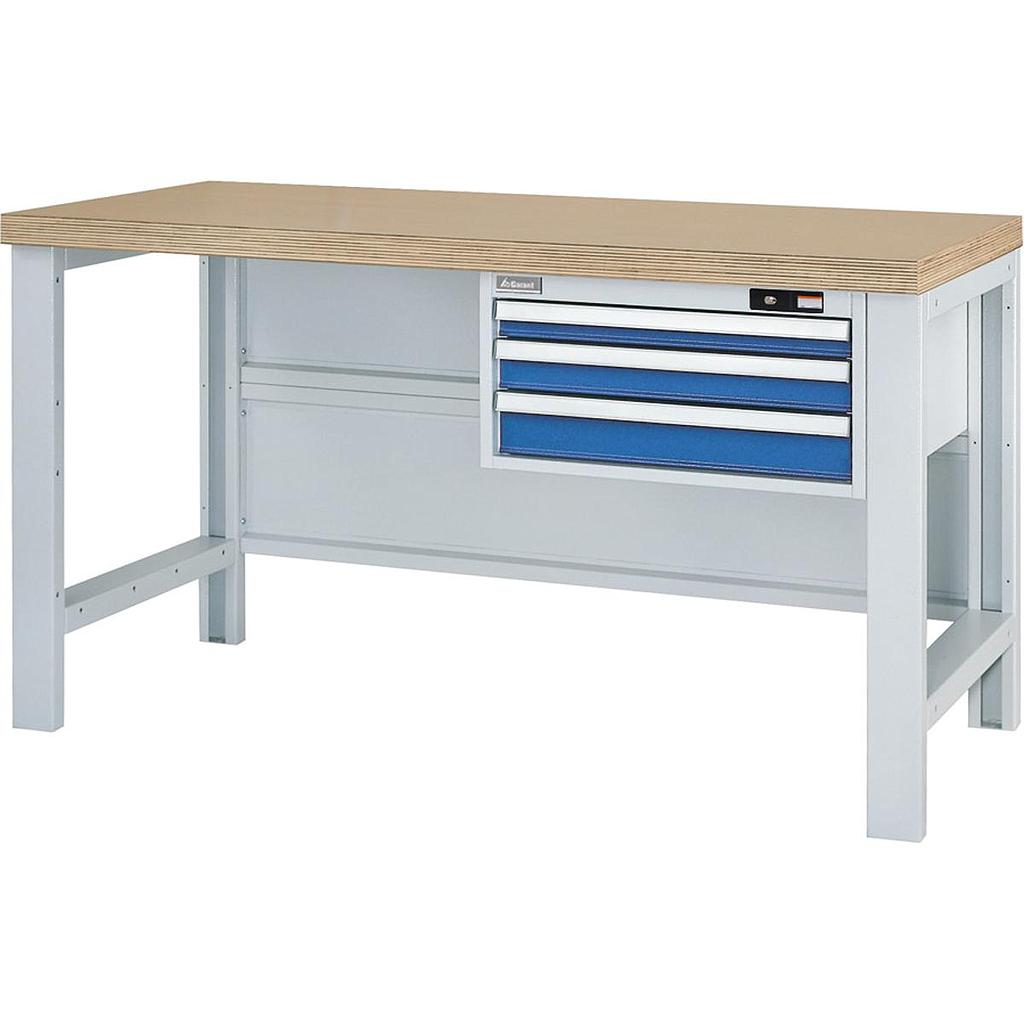

Universal workbench, length 1500mm, with 3 drawers and complete rear panel

https://www.atpsupply.org/web/image/product.template/5956/image_1920?unique=68819b1

Worktop 50 mm thick. Holes are provided for securing drawer units and support legs.
Worktop of beech marine ply, with waterproof glue. Finished with clear UV varnish.
Drawer unit 600 mm wide of sheet metal with cylinder lock with 2 keys and central lock. Drawer of sheet metal with wide aluminium grip handles, can be pulled out 90 %. With slots for drawer dividers on the inner faces. Drawer units can be mounted on the right, left or centre of the worktop. Worktops of 1500 mm can accept 2 − 3 units, worktops of 2000 mm can accept 3 − 4 units (depending on the width of the units).
Support legs of folded sheet metal (80 mm wide), with cross braces.
Rear panels of folded sheet metal, 25 mm deep.
Fitted with:
Drawer front height: 60; 80; 100 mm
Supplied for self-assembly, saving freight costs. Delivered unassembled.
Technical Data
Material thickness 1 mm
Workbench height 850 mm
Drawer/pull-out shelf load capacity 100 kg
Workbench/desk load capacity - maximum distributed load (on wood) 800 kg
Insert thickness 50 mm
Drawer runner extension (partial/full extension) 90 %
Cylinder lock modular barrel
Safety certificate GS TÜV Süd
Series KOMBI workbench
Height 850 mm
Worktop length: 1,500 mm
Worktop depth: 700 mm
Worktop thickness: 50 mm
Drawer body height: 300 mm
Drawer body width: 600 mm
Drawer body depth: 630 mm
Drawer usable width: 490 mm
Drawer usable depth: 520 mm
Number of drawers: 3
Material of worktop: Beech marine ply
Surface worktop: clear varnished

0.00 0.0 USD 0.00

1,172.70 CHF

Register to see prices

    This combination does not exist.


    Internal Reference: 819 W 001.3.S
