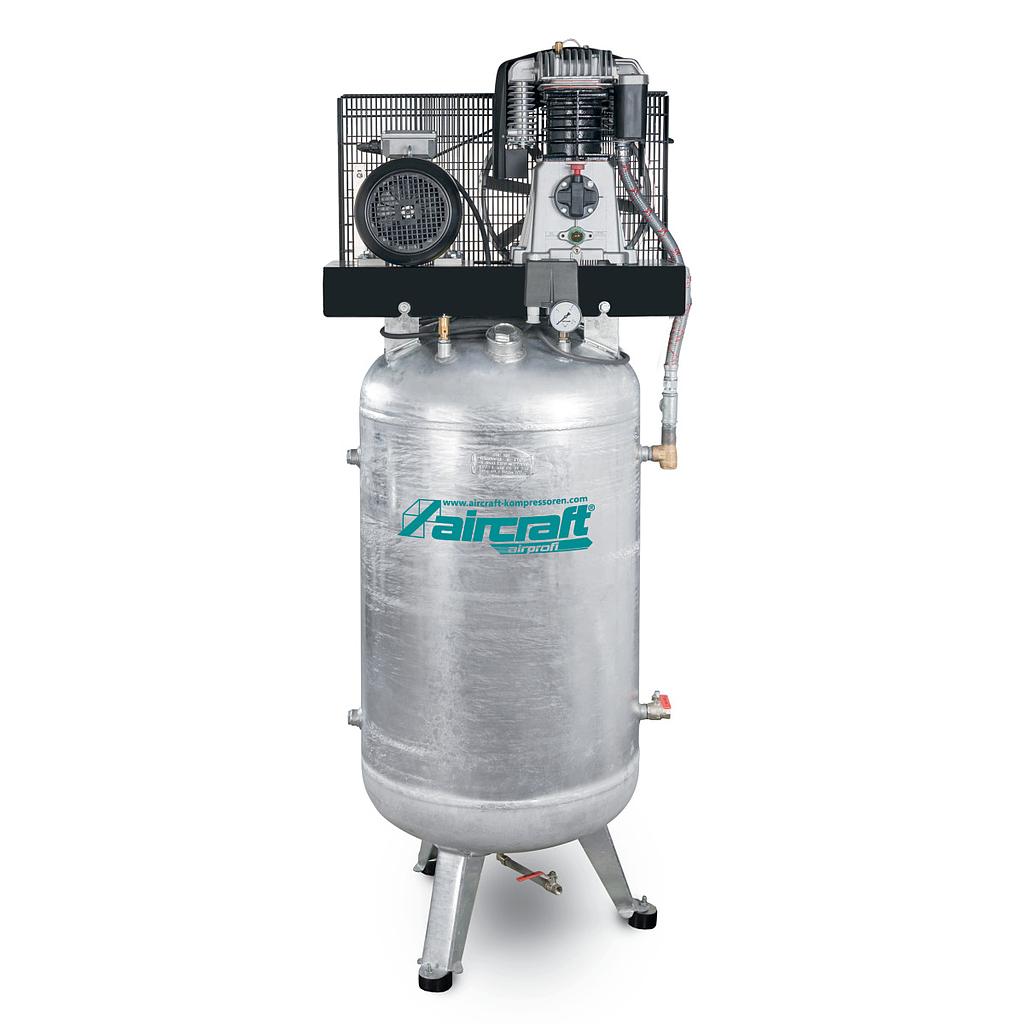

Stationary piston compressor with tank, 270

- Robust features and top quality
- Fully automatic on-off operation
- With all safety features
- Fully wired
- From 7.5 kW standard with automatic star-delta switch
- Fifteen-year rust-proof warranty on inside and outside hot-dip galvanized compressed air tank

Quality electric motor
- High quality electric motor with motor protection switch
- Start-up capacitor and start-up relief valve for easy start-up
- As standard with phase inverter for easy manual reversal of the direction of rotation

Compressed air compression via high-performance aggregate HOS
- The start-up relief valve ensures a light, pressureless start
- The two-cylinder high-performance cast iron unit and the low speed guarantee a particularly quiet and low-vibration operation ; this ensures a long service life through minimized wear
- Optimal lubrication of the compressor for long service life and reliability
- Equipped with high-quality intake filter
- Aftercooler with large cooling fins causes low boiler inlet temperature and less humidity in the compressed air to protect the compressed air tools
additionally with intercooler to the aftercooler
- Corrosion-free valve plates for improved heat dissipation and longevity of the compressor.
- Optimal cooling of the compressor due to large Fan and cooling air guide on the cylinder
- Sturdy belt guard made of metal for optimum protection of the components and for high user safety
- No vibration breakage of the compressed air supply into the boiler due to flexible armored hose line with heat protection

High-quality drive belt
- Powerful and economical drive
- The toothed drive belt makes it easier to start, improves smoothness and power transmission, and reduces power consumption by up to 30%
- Sturdy metal belt guard

Service block operation
- Equipped with a high-quality CONDOR push button switch with a robust push button function for fully automatic on / off operation
- Filter pressure regulator for stepless adjustment of the working pressure, with simultaneous dirt, oil and condensate separation
- Two large pressure gauges indicate the tank and working pressure
- Air extraction on the maintenance block via a comfort -Safety quick coupling
- On the maintenance block only fixed screw connections, no hose connections

High-quality boiler with durable rust protection
- AIRCRAFT was the first manufacturer to do so The compressors of the AIRPROFI series are equipped as standard with internal and external hot-dip galvanized boilers. Fifteen-year rust-through warranty on inside and outside hot-dip galvanized compressed air tank.

Internal Reference: 822 W 001.270
