Used to ensure connection between ankle and foot
Length from joint
center=60mm

Used to ensure connection between ankle and foot
Length from joint
center=60mm

beige color

Non-shaped colored PE foam for modular transtibial prostheses.

Suitable to use on below knee prostheses. Features a hole (diameter: 22mm) and can be used on both right and left side.

Flexible, non-shaped colored foam for modular transtibial prostheses.

Suitable to use on above knee prostheses. Features a hole (diameter: 22mm)

Flexible colored foam, preshaped for modular transfemoral protheses. Should only be used with modular knee joints with internal ewtension assists.
Knee flexion: 15°

110°

also referenced under: 5R9

also referenced under: ODROSTOC5R16, 5R1=6

113mm

Lenght: 65.5mm
Sliding range: 12mm

Max. body weight: 150kg

PR01.K3 is a flexible and light carbon foot, specially designed for patients with a lower extremity Syme's amputation. The upper part of the foot features a carbon-fiber plate whereas the toes are composed of two carbon sheets. The foot is suitable with a steel rotating lamination anchor.
Include:
- Carbon Foot shell (in beige, dark brown and very dark brown color)
- Carbon Foot Stocking

Mobility degree: 3-4
Include:
- Carbon Foot shell (in beige, dark brown and very dark brown color)
- Carbon Foot Stocking

Syme Plus' static alignment properties and 10° internal and external rotation features makes it recommendable to Syme's amputees.
Mobility degree: 1-2, Heel height: 10mm, Max. load 80kg, Material: Carbon Fiber
Include:
- Carbon Foot shell (in beige, dark brown and very dark brown color)
- Carbon Foot Stocking

CHOPART PLUS is recommendable in Chopart's amputations. Its rotation feature makes the apllications more easy for the technicians.
Include:
- Carbon Foot shell (in beige, dark brown and very dark brown color)
- Carbon Foot Stocking

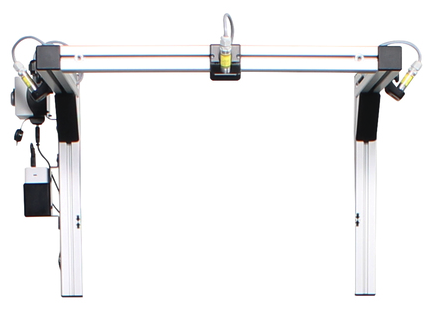

The mounting frame with three lasers can be retrofitted easily for the PROS.A. Assembly. The mounting frame has three integrated lasers that are operated via a rechargeable power bank. This means there is no need to spend time setting up external lasers. The lasers can be flexibly mounted and easily positioned.

- Using an adjustment plate, the lasers can be returned to their home position at any time
- The lasers produce practical vertical lines, which you can use e.g. to precisely align transfemoral prostheses
- Detailed alignment recommendations and aids simplify the prosthetic alignment

Dimensions WxDxH: 707 x 521 x 464 mm
Weight: 14.8 kg
To be used for: 3 laser lines [1 frontal plumb line and 2 sagittal plumb lines]
Scope of delivery: Mounting frame with 3 lasers including holder, 1 power bank including USB cable, Schuko mains adapter and holder, main switch, 743Y689 gauge for laser alignment, mounting material, markings as mounting aid
For: Mounting frame for 743A220 PROS.A. Assembly and 743A200 PROS.A. Assembly [old model]
Type of Planning and Equipment: Laser Technology and Alignment Apparatuses

Accessories for 758Z116=1750 Lamination workstation
2x roll holder for subsequent installation in bench-top cabinet

Dimensions DxH: 972 x 615mm
Necessary room height: In combination with the lamination workstations, a room height of 2.60 m is required

for: 758F200/758F220 Safety storage cabinet
Version: According to directive 2006/95/EC (Low Voltage Directive), directive 2004/108/EC (EMC Directive), directive 94/9/EC (ATEX) labelling: EX II 3/- G Ex ic nA IIB T4 Gc
Equipment: 760E14 Active carbon filter for filtering solvent vapours (hydrocarbons), filtration up to 99.99% under normal operating conditions, VDE* tested filter monitoring, VDE* tested exhaust monitoring, connection cable, mains plug *VDE: Association for Electrical, Electronic and Information Technologies
Dimensions WxDxH: 305 x 555 x 210 mm
Volume flow: 25 m /h
Material: Powder-coated thin steel sheet
Speed: 2.450 min-1
Sound intensity level: 39 dB(A)
Electrical connection in V/Hz/kW: 1 x 230 N/PE / 50-60 / 0.03
Weight: 17 kg
Colour: Light grey (RAL 7035)
To be used for: Ventilating security storage cabinets without additional exhaust ducts
Current draw: 0.13 A
Consumables: 760E14 Active carbon filter
Optional accessories: To be installed on 758F200 or 758F220 Security storage cabinet (760E13 adapter for air circulation filter needed)

The rod ends are equipped with a safety indicator warning of excessive use of the rods, and thus allow them to be changed and avoid any incident. These models are used for all types of rods with a diameter greater than 18 mm and less than 20 mm.

These models are used for all types of walkers and rollators with a diameter of Ø27 to 30mm

Spare handle for axillary crutch

Spare handle for axillary crutch

The folding support rails are to be installed next to the toilet to help support the patient to lower and raise themselves to and from the toilet.
• Magnet lock
• Epoxy coated steel
• Sturdy metal structure
Max 120kg

The lamination bench consists of a frame with a storage surface (grid tray), a work surface for gluing work, a vacuum control box, vacuum points and clamping devices for exhaust tubes. The bench-top cabinet firmly connected to the lamination bench includes a storage surface (grid tray), a roll holder for stockinette materials, suction slots on both sides and a connection for an external fan to extract vapours.

Dimensions WxDxH: 1,750 x 650 x 750/1,750mm
Version: 3 pc. 704G11 clamping device
Diameter of exhaust nozzle for vapour extraction: 180mm
Weight: 135,1kg
Vapour extraction volume flow: Recommended 850 m³/h

Dimensions WxDxH: 1.500 x 700 x 970/1.970 mm
Volume flow: Recommended: 550 m³/h
Weight: 235,5 kg
Material: Steel/wood
Exhaust nozzle Ø: 180 mm
Scope of delivery: Connection to a vacuum system, e.g. 755E600=* vacuum system, workbench with cabinet and shelves, bench-top cabinet with roll storage and suction slots, 758Z145=10 cutting and gluing worktop with edge suction, 2 x 704G11 clamping fixture for suction pipes "Orthofix"

400V, 1.2kW, volume 40m³ / h, 25L tank

Type: VACUPRESS 620 S3 UNILOCK - COOL-TEC - Vacuum-Press for the orthopaedic
shoe technique / O&P field
Footprint: approx. . 0,34 qm / Bench-top version
Dimensions: H: 1050mm - W: 750mm - D: 590mm
Power supply: 400V / 50Hz / 3 Phase / other available
Capacity: 5,9 KW
Heating: 5400 W Infrared Quartz, reflector, 9 elements
Heating-time: Adjustable from 30-199 sec.,
2 LED Displays / Set-time + Remaining-time
Vacuum-pump 0,45 Kw 12 m³/h, two-stage - oil- and maintenance-free / motor protectionswitch
Airfilter: cartridge-type, high capacity
Frame dimensions: 450mm x 600 mm / vertical lift, working area raised on material level
Frame guide: 16 ball bearing, running in steel rails
Vacuum cavity: W: 140mm L: 190mm D: 190mm / integrated in working area,
standard
Frame locking: Main handle, located on the right hand side
UNILOCK mechanism: patented one handle material clamping system, self-adjusting from 0,5 up to 8,0 mm material thickness.
Activation grill: lateral moveable, ball bearing guided, additionally rotateable to th etop
(180°), vertical adjustable.
Illumination: 2 x 35W / 12V Halogen spotlight
Vacuum automatic: Standard - vacuum pump starts automatically when working frame is closed, shuts off when vacuum is reached Vacuum pressure is controlled during moulding process.
Heating automatic: Standard - The Infrared-Heating elements are controlled by an electronic
timer and shut off automatically when pre-set heating time is reached.
COOL-TEC Cooling System: Standard - Integrated cooling-system to decrease cooling period of vacuummoulded materials by use of special air jets. External compressed air supply required. Pressure is internally reduced to 1,5 bar.
Colour: structural effect paint, blue / light grey RAL 5017/7035

950W
560 tr/min

Oscillating plaster saw. Power : 500 W.
From 6.500 to 24.000 oscillations/minute.
Weight : 1.528 kg.
Supplied with 2 blades : Ø 50 and Ø 65 mm for natural plaster.

Light-weight and powerful 115 mm one-hand angle grinder in handy compact design, drive head can be rotated in 90° steps, quick adjustment of protective cover, M14 grinding spindle thread.
800 W motor, slim easy-grip casing, restart inhibit.
Supplied with protective hood, clamping set and additional handle.
Power consumption: 800 W
Speed range: 12,000 min-1
maximum disc ⌀: 115 mm
maximum cutting depth: 28 mm
Weight: 1.9 kg
maximum vibration to EN: 4.2 m/s2
Restart block: yes

2200 W / 230 mm angle grinder with start-up current limitation and restart inhibit.
Supplied with:
Supplied with protective hood, additional handle, clamping set.
maximum disc ⌀: 230 mm
maximum speed: 6,600 min-1
Restart block: yes
maximum vibration to EN: 8.7 m/s2
Weight: 5.2 kg
Power consumption: 2,200 W
maximum cutting depth: 68 mm
Manufacturer's designation: WS22-230E

Very compact Li-ion fast charger with practical cable reel, for 14.4 to 18 V batteries. The 4.0 Ah battery is ready for use after 25 minutes

Powerful and compact Li-Ion batteries.
No memory effect.
No loss of power.
Low self-discharge.
Fast battery charging.
Also very efficient at temperatures below 0 ° C.
Bosch CoolPack - Optimal protection of cells against overheating thanks to the special heat sink housing under the battery.

Filter surface area: 1.92 m²
Material: Felt
Thickness: 0.7 mm
Diameter: 413 mm
Length approx.: 1100 mm
Width/depth approx.: 650 mm

1.100x410mm / 0,2mm thickness

Composed of a solid core and two tough outer surfaces.
Self-healing: Exterior surfaces self-repair after cutting.

Gridlines in cm (back) and inches (front). The type designation refers to the size of the print.
Length: 870 mm
Width: 620 mm
Height: 3mm

brass
