Densely woven cotton cloth evenly spread with synthetic resin bonded Aluminium Oxide (A). Very good grit bonding, high abrasion performance and long service life.
Type VSM KK 114 F: Brown fabric, for extremely demanding applications. This grade is particularly supple, resistant to oil and petroleum and can be torn in longitudinal direction to yield clean edges without fraying.
Packaging tape with integral tear-off cutter.
Application:
Predominantly for rubbing down metals by hand, but also suitable for all other materials.

including Rollabout Tray with integrated Blister Forming frame cradle
Heating with 24 Infrared-Quartz-Tubes, Dual-Zone switching (6/24), Temp.
measurement of the Material surface by opto-electr. IR-sensor, infinitely adjustable
from 30°C to 250°C by SPS controller with PID feature, Software build 3.0 with
maintenance info, programmable Ramp- and Timer-feature with an option to store
slowly raising heat processes, monitoring of the heating process by graphical trend,
tefloncoated (replaceable) Rollabout Tray, 4 casters with stop, height adjustable by
gas-shock (min. 820mm, max. 1050 mm), integrated Blister forming cradle, width
adjustable, retractable when not in use, vertical Frontdoor with double pane Window,
double gas-shock supported, Illum. by two 25W bulbs, colour: colour: RAL7035
(light-grey) / RAL7031 (blue-grey), net weight 360kg
Electr. Conn.: 380-400V / 50-60Hz / 3Ph+N+PE. / 11,1 kW (3 x 32A CEE)
Dim..: outside WxDxH: 1595x1770x1400 mm
inside WxDxH : 1300x1590x500 mm

- for even heating of the Confidence Socket
- heated using a heat gun

Specifications:
Oven Hood, Stand, Silicone Base & Insulation Cap

consisting of:
901-MO Mobile Oven
901-VP Mobile Vacuum Pump
901-VA Vacuum Adaptor
901-SP Spacer Pads
901- TSB Tool Storage Bag
901-WB Workshop Bag

With pneumatic door
Temperature: 60° to 250°
50-60Hz, 850W
Dimensions outside: 1640x1134x1756mm
Working area: 1828x1828mm

First aid kit Domino. Content according to DIN 13157. Impact-resistant and temperature-resistant, including wall bracket. Internationalization of the imprint, as well as the table of contents and the instructions for first aid in many European languages. The case is marked on the outside in the following languages: German, English, French, Italian, Dutch, Danish, Swedish, Spanish, Czech, Slovak, Polish, Portuguese, Finnish, Greek, Croatian, Hungarian, Slovenian, Turkish

also referenced under: OOMAOVENTHERDIG, CRM 53

Excellent formability, very resistant to stress cracking and abrasion with high strength and good energy absorption properties.
Processing temperature (°C) *oven temperature: 165-180°C

Heating: 1x 2400W, 1x fan motor, heating active light
Thermostat: infinitely up to 250°C
Timer: infinitely 0 - 120 minutes, On/Off active light
Housing: Stainless steel, inside and outside, door with large viewing window, opens down to the front, double side bouncy supports
Accessories: 1 grill, 1 tray, standard
Power supply: 230V / 50Hz / 2,5 kW
Dimensions: outside: W 527 x D 450 x H 316 mm / inside : W 404 x D 308 x H 254 mm
Weight: 20 kgs

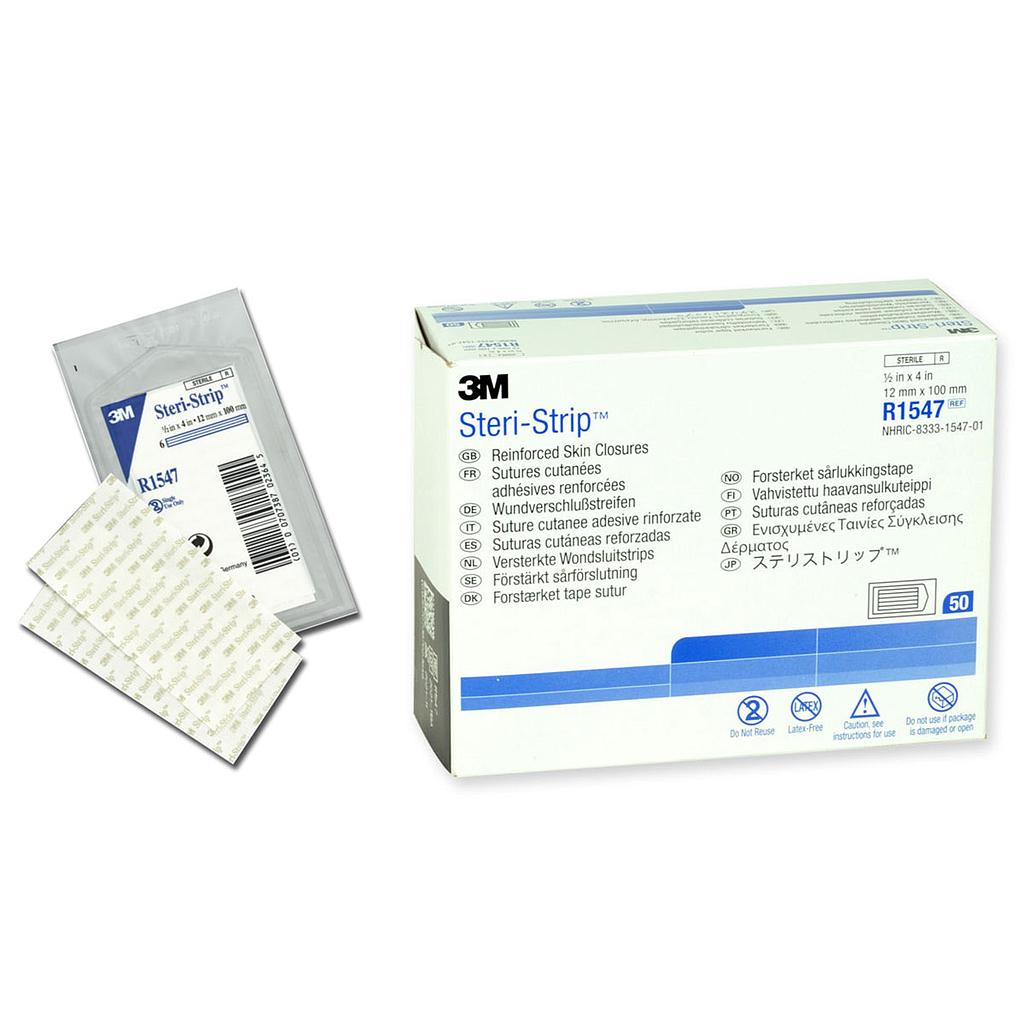

3M ™ Steri-Strip ™ are adhesive, sterile, hypoallergenic and clinically safe skin bands. They consist of a TNT backing reinforced with polyester filaments, a material that allows perspiration.

3M ™ Steri-Strip ™ solves the most critical aspects of the wound healing process by ensuring rapid development of tissue resistance force, aesthetic results are optimal and the risk of infection is minimal. A simple, fast and trauma-free application opens it up.

Non-woven rayon fiber backing (TNT)
• High level of breathability: the fibers that make up the support guarantee a correct passage of air and oxygen while respecting the physiological functions of the skin by reducing the risk of maceration.

Polyester fibers
• Resistance: the band resists the tension exerted by the wound which tends to come off

Adhesive
• Hypoallergenic: it guarantees optimal tolerance of the skin and therefore less presence of allergic reactions.
• High level of grip: the level of grip develops over time
• Trauma-Free Removal: The composition prevents residue from being released and removal is easy and trauma-free.

Sterilization: gamma rays
• Product sterility allows safe use on the surgical wound

Compact non-woven discs provide a repeatable finish because the fine abrasive grain is always in contact. No modification of the part geometry, no formation of ridges, long service life.

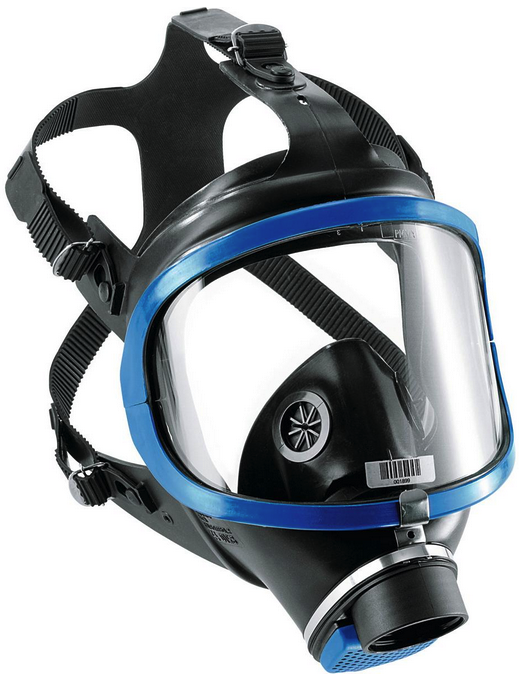

The powerful single-filter full face mask stands for proven quality and reliability for respiratory and eye protection. The durable EPDM mask body with double waterproof rim and triple seal line guarantees a safe and comfortable fit and is suitable for virtually any face shape. The scratch-resistant and distortion-free PMMA (Plexiglas) visor guarantees a large field of vision and excellent all-round visibility. An intelligent ventilation system with separate inner mask helps prevent fogging of the visor. The 5-point bands allow quick and easy fitting without jamming the hair. With standard RD40 round thread according to EN 148-1.
Standard: EN 136 class 2
Silicone free
Lens coating: anti-fog; Scratch resistant
Filter connection: RD40
Manufacturer no .: R 55 800

also referenced under: APROMASKG

Stainless steel housing inside, textured paint RAL 5017 (traffic blue) contrasting color
RAL7035 (light gray) outside, surface heating with 16 infrared quartz tubes,
Temperature measurement of the material surface using an opto-electronic IR measuring head,
Programming steplessly from 30 ° C to 250 ° C via PID controller, 2-line display with
Display of target and actual temperature, quick selection button to call up 4 free
selectable temperature values, double wing door with two double glass viewing windows,
Interior lighting 4x25W, 1 insert plate with Teflon coating,
Electrical connection: 400V / 50-60Hz / 3Ph. / 7.4 kW (CEE 16 Amp.)
Dimensions: outside WxDxH: 900x1300x890 mm
Inside WxDxH: 810x1160x540 mm
Net weight: approx. 230 kg

400x400x15mm
Suitable for fabricating flexible inner prosthetic sockets,
especially in lower limb prosthetics
Product information:
• Ethylene vinyl acetate
• Also in antibacterial (616T253)
• High flexibility
• High surface quality
• Can be subsequently thermoformed
• Minor shrinkage: approx. 3%
• Comfortable to wear
• Washable
• Temperature recommendation: 160 °C/320 °F
(convection oven, infrared oven)

For years, Pedilin® has been successfully employed in the production of liners.

The material is skin-friendly, retains its shape and is hygienic. These prefabricated cones have a precise, stable bonding edge. Ready for thermoplastic shaping, Pedilin® cones save sanding and gluing time.

Prefabricated cones made of Pedilin for fabricating liners
Three different circumferences available
Precise and stable bonded edge
Ready to thermoform immediately
Saves gluing and sanding work
Good shape retention
Hygenic
Washable
Temperature recommendation: 130 degrees C / 266 degrees F (convection oven)

For years, Pedilin® has been successfully employed in the production of liners.

The material is skin-friendly, retains its shape and is hygienic. These prefabricated cones have a precise, stable bonding edge. Ready for thermoplastic shaping, Pedilin® cones save sanding and gluing time.

Prefabricated cones made of Pedilin for fabricating liners
Three different circumferences available
Precise and stable bonded edge
Ready to thermoform immediately
Saves gluing and sanding work
Good shape retention
Hygenic
Washable
Temperature recommendation: 130 degrees C / 266 degrees F (convection oven)

For years, Pedilin® has been successfully employed in the production of liners.

The material is skin-friendly, retains its shape and is hygienic. These prefabricated cones have a precise, stable bonding edge. Ready for thermoplastic shaping, Pedilin® cones save sanding and gluing time.

Prefabricated cones made of Pedilin for fabricating liners
Three different circumferences available
Precise and stable bonded edge
Ready to thermoform immediately
Saves gluing and sanding work
Good shape retention
Hygenic
Washable
Temperature recommendation: 130 degrees C / 266 degrees F (convection oven)

Type: PO1200 - Convection Oven for the O&P field
Special unit, otimized for Pre-Preg processingt
Footprint: ~ 1,2 m²
Dimensions: Outisde: W 1230mm - D 920mm - H 1570mm
Inside: W 1000mm - D 620mm - H 1200mm
Housing: Moveable on 4 casters with stop, double doors with double-pane viewing
window
Three zone heating cabinet segmentation by intermediate shelf
Electr. Connection: 400V / 50Hz / 3 Phase / (16 Amp. CEE) / total capacity 10,2 kW
other voltages on request
Heating: 3x 3300W, 3x fan motor with reversing rotation diretion
Temperature sensor: either by oven or mould/material temperature
Temperature control: Microprocessor controlled, User interface with touch-panel, PID-controller
feature, Temperature infinitely adjustable 30°C to 250°C, Temperature unit
adjustable °C/°F , Timer- and Ramp-feature individually programable, graphic
trend indicator, multi-lingual user interface (DE,EN,FR,IT)
Illumination: 2 x 25 watts
Colour: Inside stainless steel, outside structural effect paint RAL 7035 light grey,
other RAL colours available on request (surcharge)
Weight: net: 283 kgs
gross: 418 kgs (incl. crate)
Accessories: • Universal-crate for Blister-Forming frame
(width adjustable) (Art. No. 07-131)
• Blister-Forming frame D=360mm (Art. No. 07-132)
• Baumeister Pre-Preg Set for PO ovens

Type: PO1800 - Convection Oven for the O&P field
Special unit, otimized for Pre-Preg processingt
Footprint: ~ 1,2 m²
Dimensions: Outisde: W 1230mm - D 920mm - H 1950mm
Inside: W 1000mm - D 620mm - H 1790mm
Housing: Moveable on 4 casters with stop, double doors with double-pane viewing
window
Three zone heating cabinet segmentation by intermediate shelf
Electr. Connection: 400V / 50Hz / 3 Phase / (16 Amp. CEE) / total capacity 10,2 kW
other voltages on request
Heating: 3x 3300W, 3x fan motor with reversing rotation diretion
Temperature sensor: either by oven or mould/material temperature
Temperature control: Microprocessor controlled, User interface with touch-panel, PID-controller
feature, Temperature infinitely adjustable 30°C to 250°C, Temperature unit
adjustable °C/°F , Timer- and Ramp-feature individually programable, graphic
trend indicator, multi-lingual user interface (DE,EN,FR,IT)
Illumination: 2 x 25 watts
Colour: Inside stainless steel, outside structural effect paint RAL 7035 light-grey,
other RAL colours available on request (surcharge)
Weight: net: 395 kgs
gross: 550 kgs (incl. crate)
Accessories: • Universal-crate for Blister-Forming frame
(width adjustable) (Art. No. 07-131)
• Blister-Forming frame D=360mm (Art. No. 07-132)
• Baumeister Pre-Preg Set for PO ovens

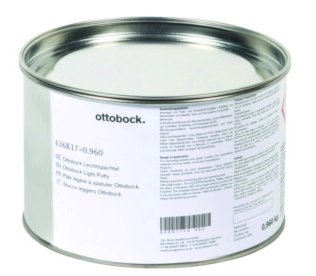

For fixing and filling a variety of materials
Particularly suitable for narrowing wood and plastic sockets
Works well with materials commonly used in orthopaedic technology, e.g., wood, lamination resin, plastic
The proven classic material!
Used with 617P14 Hardener Paste
Base: unsaturated polyester resins with special light fillers dissolved in styrene
Can be coloured with Ottobock resin colour pastes
Very low density
Easy to sand
Quick curing
Good adhesive qualities

for attaching decorative fabrics, posters, labels, nonwovens, oiled papers and tar papers, PC8000

E14 / 25W / 300°C / 230V

also referenced under: OOMAOVENCR50BC, CRM 34

With roll-about tray, 220V-380V / 20kW / 50Hz, working height: 1800x1600x400mm
External dimensions: 2000x1700x500mm

for attaching decorative fabrics, posters, labels, nonwovens, oiled papers and tar papers, PC8000

also referenced under: OOMAOVENCR50O, CRM 43

1m x 10m

also referenced under: OOMAOVENTEFLON, CRM 55

also referenced under: OOMAOVENCR50K, CRM 40

120 minutes

also referenced under: OOMAOVENCR50I, CRM 29

FUNCTION: Programmer, Controller
DIMENSIONS: 48 x 48 mm
DISPLAY: 1 display with 4 digit
POWER SUPPLY: 24 Vac/Vdc, 100… 240 Vac
INPUTS: 0/1… 5 V, 0/2… 10 V, 0/4… 20 mA, Pt100, PTC-NTC, Thermocouple
OUTPUTS: Relay and/or SSR control
DIGITAL INPUTS: 1, 2
INDEPENDENT TIMER: Yes
NUMBER OF PROGRAMS / SEGMENTS: 1 program with 8 segments
INTERFACE: TTL Modbus
SPECIAL FUNCTIONS: Digital retransmission, Hours/Days worked, Power on delay, Soft start, Transmitter power supply, User calibration, Wattmeter
CONTROL: ON/OFF and PID single or double action
EXTRACTABILITY: By the front
CERTIFICATIONS: CE, UL

Specially parameterized for CR5000G

also referenced under: OOMAOVENCR50RG, CRM 46, K48

also referenced under: OOMAOVENTERMO, CRM 47

ENP 220, spare part

also referenced under: OOMAOVENCR50FT, CRM 28

3 positions

also referenced under: OOMAOVENCR50S, CRM 30

2 positions

also referenced under: OOMAOVENCR55003, CRM 30.1

optional oven equipment

also referenced under: OOMAOVENCR50T, CRM 39

for bulb: E14, 40W, 240V, 550C

also referenced under: OOMAOVENCR50L, CRM 32

750W/220V, L=84cm

also referenced under: OOMAOVENCR50H, CRM 38

750W/220V, L=98cm

also referenced under: OOMAOVENCR50HG, CRM 45

E14 / 40W / 300° C / 230V

also referenced under: OOMAOVENCR50B, CRM 33

10 A, DO 1 GL

also referenced under: OOMAOVENCR50F10, CRM 42

2 A, DO 1 GL

also referenced under: OOMAOVENCR50F02, CRM 41

also referenced under: OOMAOVENCR50FC, CRM 36

10 meters of joint with 1x silicone cartridge

also referenced under: OOMAOVENCR50G1, CRM 46.1

KM DILEM-10, relais TRP 614

also referenced under: OOMAOVENCR50N, CRM 31

2.2 kW

also referenced under: OOMAOVENCR50FR, CRM 37

BE 220/240/3001

also referenced under: OOMAOVENCR50E, CRM 35

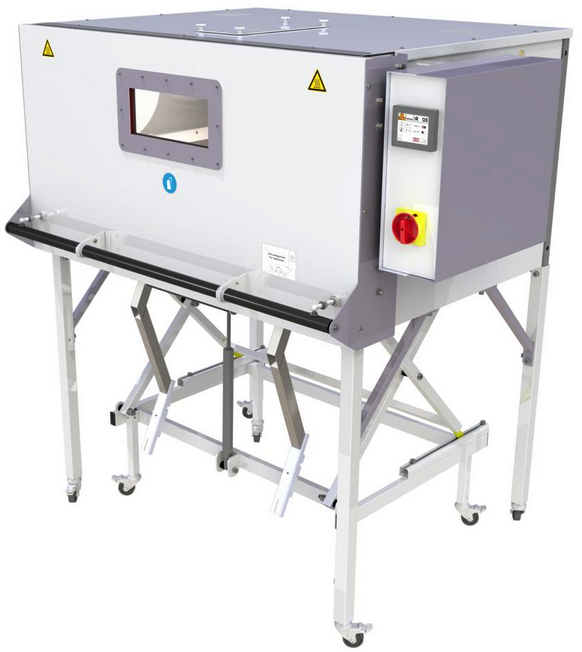

including Rollabout Tray with integrated Blister Forming frame cradle
Heating with 18 Infraredt-Quartz-Tubes, Dual-Zone switching (6/18), Temp.
measurement of the Material surface by opto-electr. IR-sensor, infinitely adjustable
from 30 C to 250 C by SPS controller with PID feature, Software build 3.x with
maintenance info, programmable Ramp- and Timer-feature with an option to store
slowly raising heat processes, monitoring of the heating process by graphical trend,
tefloncoated (replaceable) Rollabout Tray, 4 casters with stop, height adjustable by
gas-shock (min. 820mm, max. 1050 mm), integrated Blister forming cradle, width
adjustable, retractable when not in use, vertical Frontdoor with double pane Window,
double gas-shock supported, Illum. by two 25W bulbs, integrated Pre-Preg hose duct
at the left side,
colour: RAL7035 (light-grey) / RAL7031 (blue-grey), net weight 290kg
Electr. Conn.: 380-400V / 50-60Hz / 3Ph. / 8,5kW (CEE 3x 16Amp.)
Dim.: outside HxWxD: 1400x1595x1270 mm
inside HxWxD : 500x1300x1090 mm

including Rollabout Tray with integrated Blister Forming frame cradle
Heating with 12 Infraredt-Quartz-Tubes, Temp. measurement of the Material surface by
opto-electr. IR-sensor, infinitely adjustable from 30 C to 250 C by SPS controller with
PID feature, Software build 3.x with maintenance info, programmable Ramp- and
Timer-feature with an option to store slowly raising heat processes, monitoring of the
heating process by graphical trend, tefloncoated (replaceable) Rollabout Tray, 4
casters with stop, height adjustable by gas-shock (min. 820mm, max. 1050 mm),
integrated Blister forming cradle, width adjustable, retractable when not in use, vert.
Frontdoor with double pane Window, double gas-shock supported, Illum. by two 25W bulbs,
colour: RAL7035 (light-grey), net weight 230kgs
Electr. Conn.: 400V / 50-60Hz / 3Ph. / 5,9 kW (CEE 3x 16Amp.)
Dim.: outside HxWxD: 1420x1320x970 mm
inside HxWxD : 500x1000x800 mm
