Space requirements WxD: 1400 x 800 mm
Power requirements: 400 V / 50 Hz / 1,27 kW / 1,7 kW
Noise level: 75 dB(A)
Power cord length: 2 m
Weight: 134,000 kg
Calour: lichtgrau (RAL 7035)
Scope of delivery: with 1 Sanding belt (2500 x 50 mm), 1 round grinding plate, 2 m power cord with CEE plug
Sanding belt speed: 15/30 m/sec
Dimension upper part W x D x H: 1000 x 500 x 1622 mm
Description: left side: aluminium plane wheel 350 mm Ø, continuous, inclinable support table, folding down at the side for full use of the grinding surface, extraction connection piece 100 mm Ø to connect to a chip extraction system with a minimum air velocity of 20 m/s right side: belt tensioning arm with closed protection hood, extraction connection piece 100 mm Ø, belt length 2500 mm, belt width 50 mm with round plate, contact wheel, sanding belt

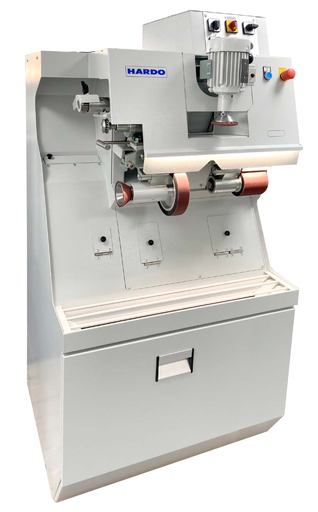

- Orthopaedic sanding machine
- Enlarged work-space left, without trimmers
- Integrated extraction system with cotton filter
- Suction wall placed back widely
- Removable suction nozzles n Heel breaster on bajonet
- Sanding belts 1× 40×Ø175 + 1×100×Ø100 mm
- Separate belt control
- Suction flap activation controlled by each respective drive
- Sanding wheel on bajonet
- Pneumatic sanding belt tensioning
- Fully automatic filter cleaning
- Additional fine dust filter incl.
- Naumkeag multi-adjustable
- Operation by double push buttons
- Ergonomic HARDO Design
- Colour: light grey RAL 7035
- Electr. specifications: 400V/3Ph/50Hz/3,2kW
- Dimensions: 1150×780×1855 mm (w×d×h)
- Weight: 280 kg

Effective sanding height of 450 mm, pneumatic belt tension, light strip on sanding belt, integrated floor extraction, extraction on sanding belt, continuous speed control, incl. 649G60=2175X320 sanding belt
Electrical connection in V/Hz/kW 1x 230/ 50-60 / 2,2
Dimensions WxDxH 712 x 875 x 1.787 mm
Belt width 320 mm
Belt speed 6 - 16 m/s
Exhaust nozzle Ø 125 mm

With integrated extraction system and pumice motor.
Heel front cone with bayonet lock, front cone Ø 90mm.
One sanding belt 40 mm, contact wheel Ø 175 mm,
belt length 1650 mm, one sanding belt 100 mm,
contact wheel Ø 100 mm, belt length 1480 mm,
suction wall diagonally recessed (orthopaedics version),
extraction capacity 1300 cubic meter /h.
Coarse and fine dust boxes removable from the front.

Dimensions WxDxH: 720 x 780 x 1550 mm
Power requirements: 400 V / 50 Hz / 2,1 kW

with cam switch and thermo-protected drive motors,
2 m power cord with CEE plug

For years, Pedilin® has been successfully employed in the production of liners.

The material is skin-friendly, retains its shape and is hygienic. These prefabricated cones have a precise, stable bonding edge. Ready for thermoplastic shaping, Pedilin® cones save sanding and gluing time.

Prefabricated cones made of Pedilin for fabricating liners
Three different circumferences available
Precise and stable bonded edge
Ready to thermoform immediately
Saves gluing and sanding work
Good shape retention
Hygenic
Washable
Temperature recommendation: 130 degrees C / 266 degrees F (convection oven)

For years, Pedilin® has been successfully employed in the production of liners.

The material is skin-friendly, retains its shape and is hygienic. These prefabricated cones have a precise, stable bonding edge. Ready for thermoplastic shaping, Pedilin® cones save sanding and gluing time.

Prefabricated cones made of Pedilin for fabricating liners
Three different circumferences available
Precise and stable bonded edge
Ready to thermoform immediately
Saves gluing and sanding work
Good shape retention
Hygenic
Washable
Temperature recommendation: 130 degrees C / 266 degrees F (convection oven)

For years, Pedilin® has been successfully employed in the production of liners.

The material is skin-friendly, retains its shape and is hygienic. These prefabricated cones have a precise, stable bonding edge. Ready for thermoplastic shaping, Pedilin® cones save sanding and gluing time.

Prefabricated cones made of Pedilin for fabricating liners
Three different circumferences available
Precise and stable bonded edge
Ready to thermoform immediately
Saves gluing and sanding work
Good shape retention
Hygenic
Washable
Temperature recommendation: 130 degrees C / 266 degrees F (convection oven)

also referenced under: OOMAMARP749Y145, 749Y10=A65

Length approx: 1070 mm
Width/depth approx: 340 mm
Height approx: 950 mm
Weight approx: 72 kg
Supply voltage: 230 V
Mains frequency: 50 Hz
Extraction duct nominal width outside: 2 x 100 mm
Emissions sound pressure level at workstation Lp (idling without extraction unit): 87 dB(A)
Max. sanding width: 75 mm
Sanding belt length: 2000 mm
Sanding belt width: 75 mm
Circumferential belt speed(s): 29 m/s
Contact wheel diameter: 200 mm

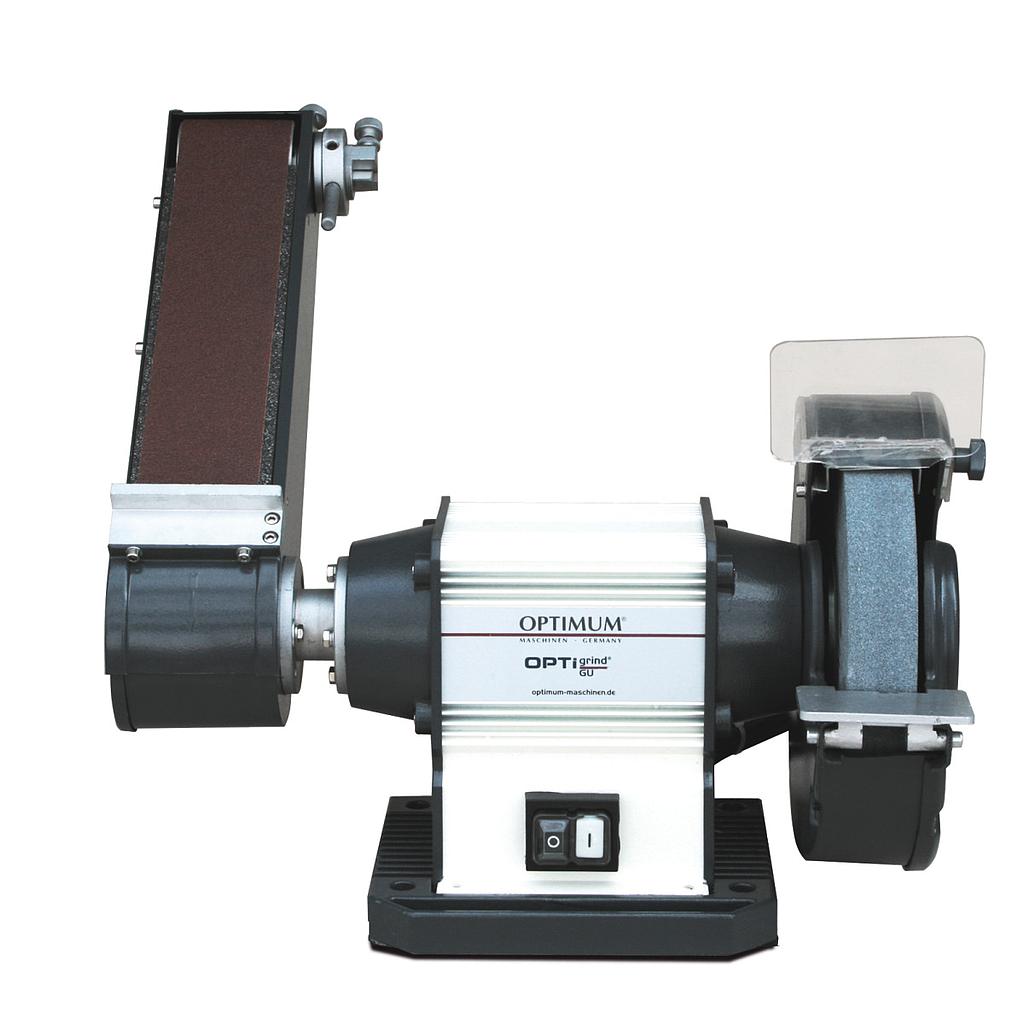

Robust and stable universal grinding machines with abrasive belt and grinding wheel for a wide range of materials
Heavy, durable industrial design with maintenance-free motor
Housing made of extruded aluminum
Large, heavy mounting flanges and thus high disc concentricity
Sanding attachment with graphite coating; prevents friction and heat
Stop allows quick and easy sanding of workpieces
Tape adjustment without tools - only adjustable with a handle screw
Universal corundum grinding wheel and sanding belt in the standard scope of delivery

Sander with two telescopic booms on rubber contact rollers.
Power supply: 400 Volt
Belt: 50 x 2500 mm
Weight: 140 kg
Headphones mandatory (according to DIN EN 352)

400W / 1.27kW

also referenced under: OOMAMARPDB01, CRM 91

The most efficient oscillating machines, available in three power categories (SuperCut, MultiMaster, MultiTalent); new model with Starlock tool carrier (optimized power transmission for up to 35% faster working speed).
Almost unlimited applications (sawing, grinding, scraping, cutting, grating) thanks to the oscillating movement (low dust emission).
Electronic progressive adjustment of the rotation speed for optimal use.
Maximum quality and stability thanks to the metal gear case and the combined use of ball and needle bearings.
Optimal maneuverability thanks to the ergonomic design and the Softgrip coating, reduced weight.
Powerful MultiTool for rapid progress (for interior design and renovation) with more than 30 accessories for sawing in wood and metal, sanding, cutting tiles, etc.
Delivery:
Set of 30 accessories, 1 × suction device, 1 × plastic tool case.
Set of 30 accessories: 1 × E-Cut Long-Life saw blade - (10 mm), 2 × E-Cut Long-Life saw blades (35 mm), 2 × E-Cut Long-Life saw blades ( 65 mm), 1 × E-Cut Carbide Pro saw blade (32 mm), 1 × carbide saw blade (⌀ 75), 1 × carbide rasp (triangular), 1 × spatula, 1 × perforated backing pad , 1 × perforated sanding sheet each (grit 60, 80, 120, 180).
With 1 × ALG 80 rapid charger, 2 × Li-Ion batteries (18 V / 3 Ah).
1 “Akku” case with charger, 1 backing pad, 3 sanding sheets each (grain 60, 80, 120, 180), 1 fixed spatula, 1 HSS segment saw blade, 1 Long-Life E- saw blade Cut (65 mm), 1 E-Cut universal saw blade (44 mm).
Manufacturer no .: AFMM 18 QSL
Number of batteries included: 2
Battery type: Lithium-ion
Battery capacity: 3 A h
Battery voltage: 18V
Tool holders: StarlockPlus, Starlock
Number of oscillations: 11'000 min-¹ - 18'500 min-¹
Oscillation angle: 3.4 °
Angle approach of the support plate: 80 mm
Weight: 1.8 kg

also referenced under: EHDWSANQCA05, CRM 480

also referenced under: EHDWSANDCG05, EHDWSANDCG15, CRM 481, CRM 482

Ø72.5 x 200mm

also referenced under: EHDWSANQD072, CRM 483

also referenced under: OOMAMARP3000I, CRM 98

also referenced under: OOMAMARP3000H, CRM 97

For the final finishing of prosthetic components
1 piece silicone sanding cone 5/8", conical
1 piece silicone sanding cone 5/8", conical, narrow
1 piece silicone sanding cone 5/8", cylindrical round with grooves
1 piece silicone sanding cone 5/8", cylindrical round
1 piece silicone sanding cone 5/8", double cone
1 stand

high-quality masking tape for painters, plasterers and bodywork painters, up to 80°C, well-impregnated reinforcement or very good resistance to re-sanding, also ideal for dispersion paints
