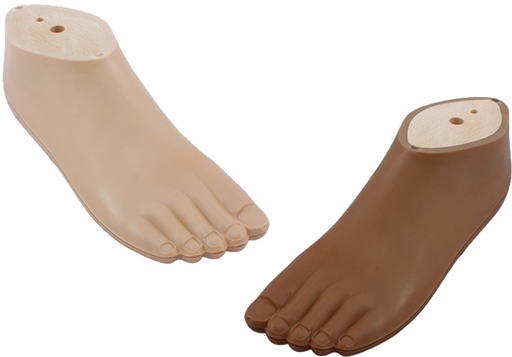

Mobility degree 2-3, Heel height 10mm, Max. load 125kg, Material PU

Mobility degree 1-2, Heel height 10mm, Max. load 125kg, Material PU

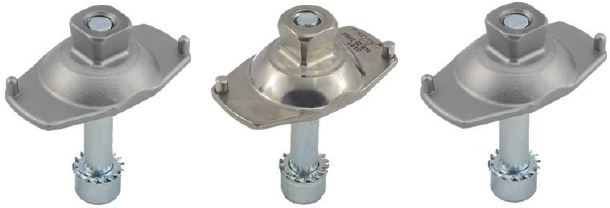

for feet size: 26-29cm

Used to connect lower extremity modular prosthetic parts. The part is used with PR05.A4 - Wooden Connection Plate. Its design allows inwards/outwards rotation.

Used to connect lower extremity modular prosthetic parts. The part is used with PR05. A4 - Wooden Connection Plate.

Lamination dummy is included

also referenced under: OCPOMODUZ00019, 4R23

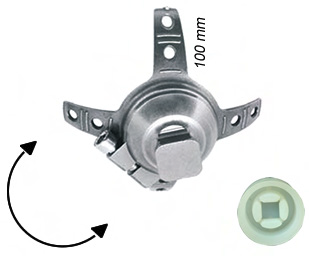

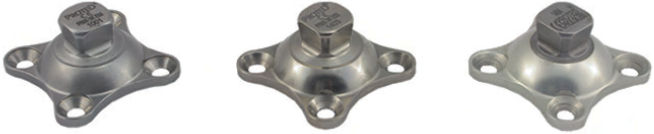

Fixed lamination anchor with pyramid. Designed for lower extremity modular protheses
Max load 125kg

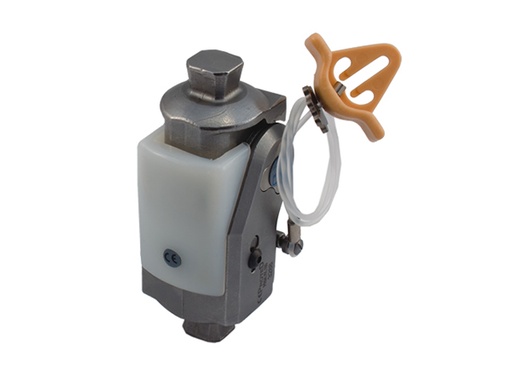

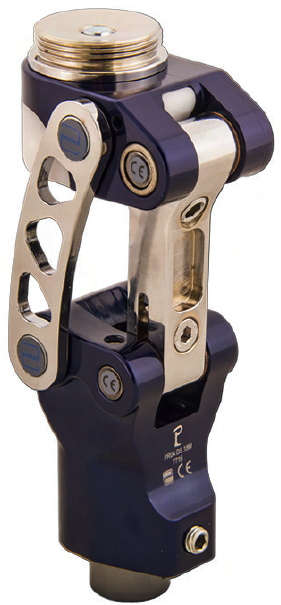

Degree of mobility: 2
Proximal connection: threaded adapter
Distal connection: tube receiver
Knee flexion angle: 150 °
System height: 110mm
Maximum body weight: 100kg

Mobility degree : 2
Proximal connection : Pyramid adapter
Distal connection : Tube receiver
Knee flexion angle : 150°
System height : 111mm
Maximum body weight : 100kg

Mobility degree : 1
Proximal connection : Pyramid adapter
Distal connection : Pyramid adapter
Knee flexion angle : 110°
System height : 81mm
Maximum body weight : 100kg

Mobility degree : 2
Proximal connection : Pyramid adapter
Distal connection : Pyramid adapter
Knee flexion angle : 120°
System height : 81mm
Maximum body weight : 100kg

Degree of mobility: 2
Proximal and distal connection: Pyramidal adapter
Angle of flexion of the knee: 120°
System height: 80mm
Maximum weight of the body: 100 kg

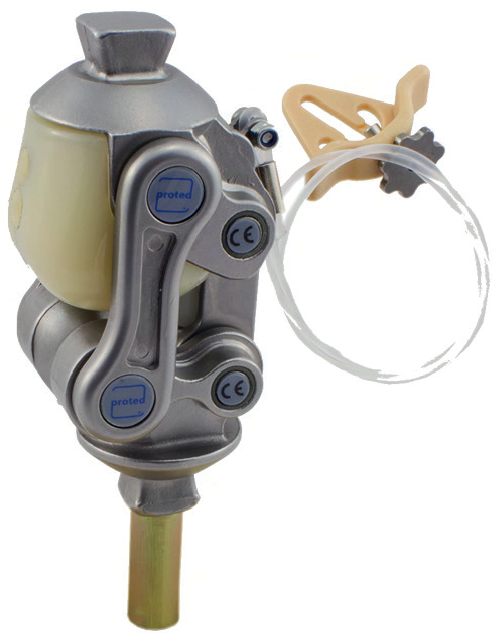

Mobility degree : 1
Proximal connection : Pyramid adapter
Distal connection : Tube receiver
Knee flexion angle : 140°
System height : 90mm
Maximum body weight : 85kg

Mobility degree : 1
Proximal & distal connection : Pyramid adapter
Knee flexion angle : 120°
System height : 82mm
Maximum body weight : 100kg

Mobility degree : 2
Proximal & distal connection : Pyramid adapter
Knee flexion angle : 110°
System height : 47mm
Maximum body weight : 100kg
Material: Stainless Steel

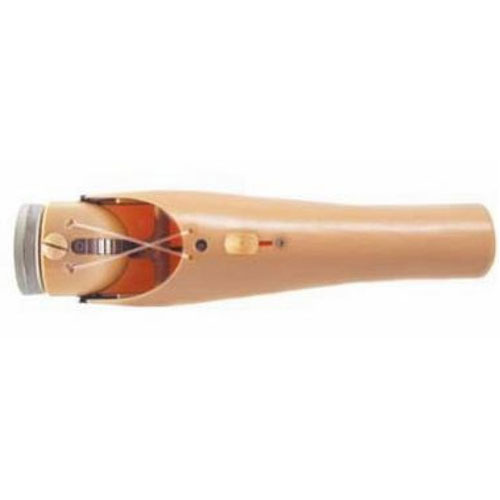

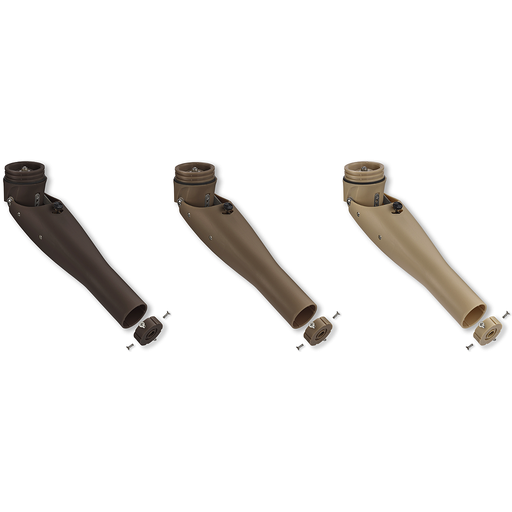

Manual elbow joint with an anatomically shaped underarm for upper extremity mechanical prosthetic applications. The integrated locking system allows the joint to lock in 12 different positions. Flexion angle 120°

Manual elbow joint with an anatomically shaped underarm for upper extremity mechanical prosthetic applications. The integrated locking system allows the joint to lock in 12 different positions. Flexion angle 120°

BRAND: ORTHOPUS
Glove material: silicone
Thread: M10
18 different skin colours
10 sizes (Child, Woman, Man)
Made in China

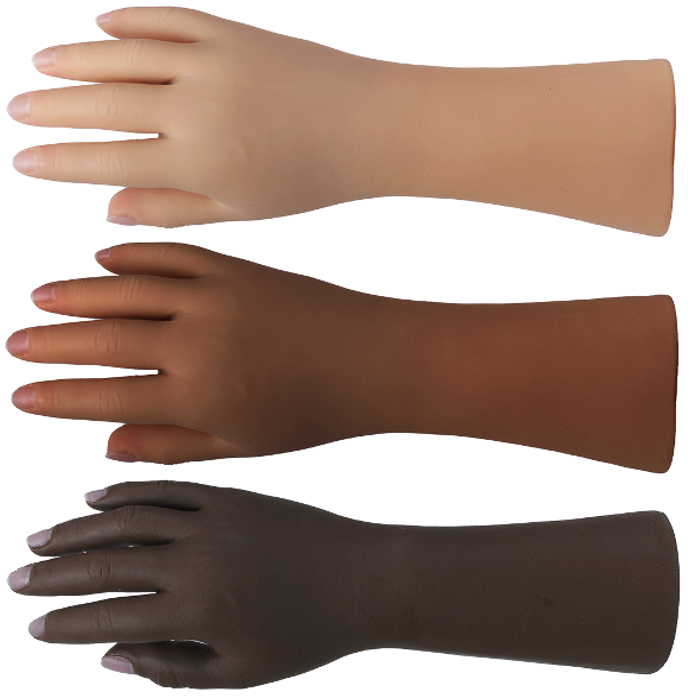

This prosthesis offers the possibility to manually bend the fingers to facilitate the gripping of small and light objects. It requires no special training and imitates the shape and aspect of the missing limb while rebalancing the body.

Degree of mobility: 1
Knee flexion angle: 140°

Functions and benefits

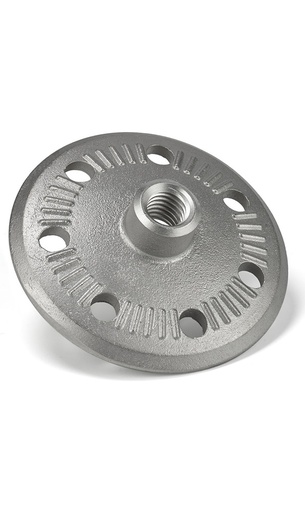

The Heavy Duty Nut, M8, Long Stump, is part of the Rehab'Impulse modular system and is designed to provide compatibility with our adult long stump kit and the Foot SACH 2.0 Adult. It is intended for adults with a long residual limb.

Intended use
The Rehab'Impulse Heavy Duty Nut, M8, Long Stump, adult, is intended for prosthetic fitting of users with a body weight of up to 80 kg (P4). This product is not intended for excessive physical activities.

Compatibility
• 74-00229 Module System, Adult - Long Stump
• Foot SACH 2.0 Adult – sizes 14 to 21

Included in delivery
• 10x Heavy Duty Nut, M8

Storage conditions
• Store product in dry conditions

Environmental conditions
Recommended environmental conditions:

• Avoid exposure to dust, sand, salt water, acids and urine

Functions and benefits

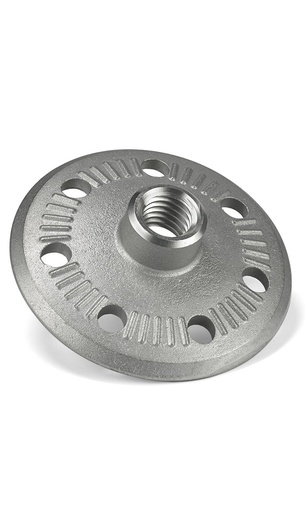

The Heavy Duty Nut, M10, Long Stump, is part of the Rehab'Impulse modular system and is designed to provide compatibility with our adult long stump kit and the Foot SACH 2.0 Adult. It is intended for adults with a long residual limb.

Intended use
The Rehab'Impulse Heavy Duty Nut, M10, Long Stump, adult, is intended for prosthetic fitting of users with a body weight of up to 80 kg (P4). This product is not intended for excessive physical activities.

Compatibility
• 74-00229 Module System, Adult - Long Stump
• Foot SACH 2.0 Adult – sizes 22 to 28

Included in delivery
• 10x Heavy Duty Nut, M10

Storage conditions
• Store product in dry conditions

Environmental conditions
Recommended environmental conditions:

• Avoid exposure to dust, sand, salt water, acids and urine

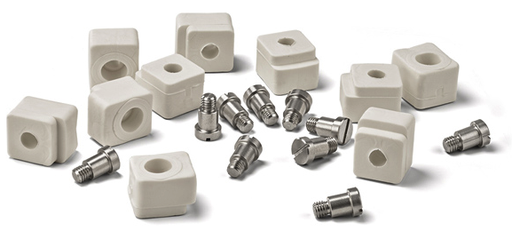

• 10x Rubber Bumpers
• 10x Screw, M4, Stainless Steel

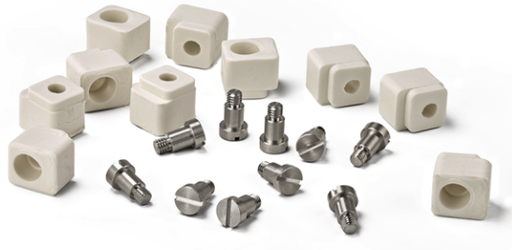

• 10x Rubber Bumpers
• 10x Screw, M5, Stainless Steel

Functions and benefits

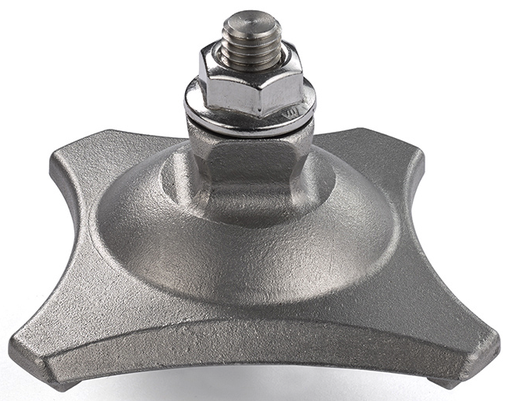

The Pyramid Adapter, Knee Joint, Adult, is part of the Rehab'Impulse modular system and is designed to provide compatibility with standard modular tube clamp adapters used as interface with common modular hip joints.

Intended use
The Rehab'Impulse knee joint pyramid adapter, adult, is intended for prosthetic fitting of users with a body weight of up to 80 kg (P4). This product is not intended for excessive physical activities.

Compatibility
- 74-00243 Knee Joint, Monocentric, Adult, Beige
- 74-00244 Knee Joint, Monocentric, Adult, Olive
- 74-00245 Knee Joint, Monocentric, Adult, Terra
- 74-00246 Knee Joint, Polycentric, Adult, Beige
- 74-00247 Knee Joint, Polycentric, Adult, Olive
- 74-00248 Knee Joint, Polycentric, Adult, Terra

Included in delivery
- 1x Pyramid
- 1x Threaded pin M8/M10
- 1x Hexagonal Nut, SS, M8

Storage conditions
- Store product in dry conditions
- Store at room temperature (ideally between 15°C and 25°C)
- Keep out of direct sunlight or other sources of light with a high UV content
- Take precautionary measures against sparking and fire

Environmental conditions
Recommended environmental conditions:
- Temperature range for use : -10°C to 60°C (14°F to 140°F)
- Relative humidity 0% to 90%, no condensing situation
- Avoid exposure to dust, sand, salt water, acids and urine

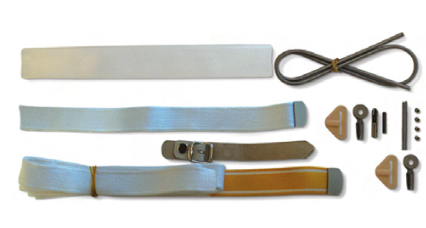

Include:
PR08.KP - Axillary Protector
PR08.KE - Webbing
PR08.YY - Cable Housing
PR08.YG - Eyelet Cable Anchor
PR08.KT - Plastic Hanger
PR08.BP - Coupling Unit
PR08.KV - Threaded Sleeve

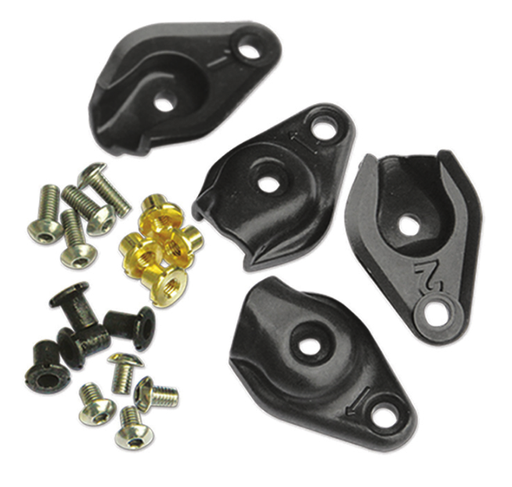

Tamarack Flexure Joint Caps are a uniquely designed external mounting option for installing Tamarack Flexure Joints on upper or lower limb orthotic devices.
74-01060

Tamarack Flexure Joint Caps are a uniquely designed external mounting option for installing Tamarack Flexure Joints on upper or lower limb orthotic devices.
74-01059

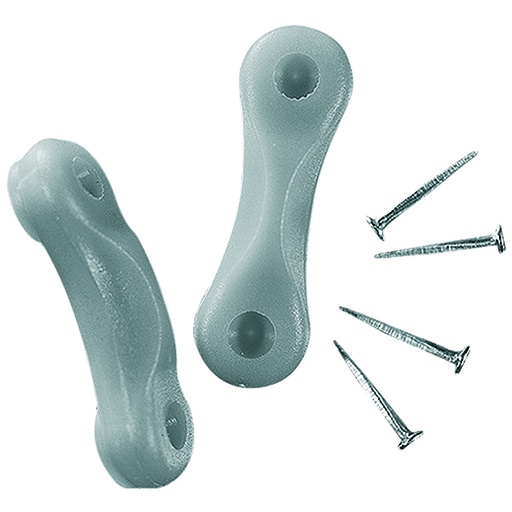

Tamarack Molding Dummies are reusable five to ten times. They are strongly recommended to create a snug, recessed cavity for the Tamarack Flexure Joints™ or Tamarack Dorsiflexion Assist Flexure Joints™.
74-01070

Tamarack Molding Dummies are reusable five to ten times. They are strongly recommended to create a snug, recessed cavity for the Tamarack Flexure Joints™ or Tamarack Dorsiflexion Assist Flexure Joints™.
74-01071

Tamarack Molding Dummies are reusable five to ten times. They are strongly recommended to create a snug, recessed cavity for the Tamarack Flexure Joints™ or Tamarack Dorsiflexion Assist Flexure Joints™.

Functions and benefits:

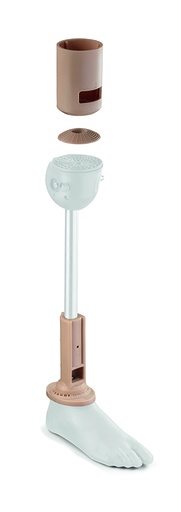

The Module System, Transfemoral, Adult, is part of the Rehab'Impulse modular system that permits prosthetic fitting for various levels of amputation and disarticulation of the lower extremities. The adult transfemoral kit consists of a set of components allowing different alignment configurations.

Intended use:
The Rehab'Impulse module system, transfemoral, adult, is intended for prosthetic fitting of users with a body weight of up to 80 kg (P4). This product is not intended for excessive physical activities.

Compatibility:
The components included in the set are compatible with the Rehab'Impulse adult knee joints and prosthetic feet:
- 74-00243 Knee Joint, Monocentric, Adult, Beige
- 74-00244 Knee Joint, Monocentric, Adult, Olive
- 74-00245 Knee Joint, Monocentric, Adult, Terra
- 74-00246 Knee Joint, Polycentric, Adult, Beige
- 74-00247 Knee Joint, Polycentric, Adult, Olive
- 74-00248 Knee Joint, Polycentric, Adult, Terra
- Foot, SACH 2.0, sizes 22-28

Included in delivery*:
- 1x Cup, transfemoral adult
- 1x Convex disc
- 1x Conical cup, transfemoral, adult
- 1x Concave cylinder, M10, adult
- 1x Convex ankle washer, adult
- 1x Screw, countersunk head, FT, SS, M10x50
- 2x Flat washer, SS, 15/55/3
- 1x Flat washer, SS, 10.5/25/1.5
- 1x Hexagonal nut, SS, M10
- 1x Coiled spring expansion pin, SS, 5x45

Storage conditions:
- Store product in dry conditions
- Store at room temperature (ideally between 15°C and 25°C)
- Keep out of direct sunlight or other sources of light with a high UV content
- Take precautionary measures against sparking and fire

Environmental conditions:
Recommended environmental conditions:
- Temperature range for use : -10°C to 60°C (14°F to 140°F)
- Relative humidity 0% to 90%, no condensing situation
- Avoid exposure to dust, sand, salt water, acids and urine
*Please note: Knee joint and foot not included with the system. To be ordered separately

Functions and benefit:

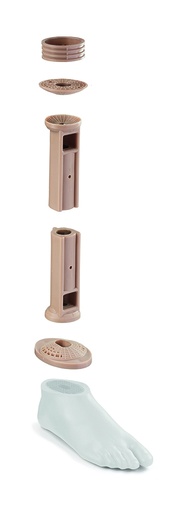

The Module System, Transtibial, Adult, is part of the Rehab’Impulse modular system that permits prosthe- tic fitting for various levels of amputation and disarti- culation of the lower extremities. The adult transtibial kit consists of a set of components allowing different alignment configurations.

Intended use:
The Rehab’Impulse module system, transtibial, adult, is intended for prosthetic fitting of users with a body weight of up to 80 kg (P4). This product is not intended for excessive physical activities.

Compatibility:
The components included in the set are compatible with the Rehab’Impulse prosthetic feet:
- Foot, SACH 2.0, sizes 22-28

Included in delivery*:
- 1x Cup, TTA/TTC/TFC/LS
- 1x Convex disc
- 2x Concave cylinder, M10, adult
- 1x Convex ankle washer, adult
- 1x Screw, countersunk head, FT, SS, M10x60
- 1x Flat washer, SS, 15/44/3

Storage conditions:
- Store product in dry conditions
- Store at room temperature (ideally between 15°C and 25°C)
- Keep out of direct sunlight or other sources of light with a high UV content
- Take precautionary measures against sparking and fire

Environmental conditions:
Recommended environmental conditions:

- Temperature range for use : -10°C to 60°C (14°F to 140°F)
- Relative humidity 0% to 90%, no condensing situation
- Avoid exposure to dust, sand, salt water, acids and urine
* Please note : Foot not included with the system. To be ordered separately.

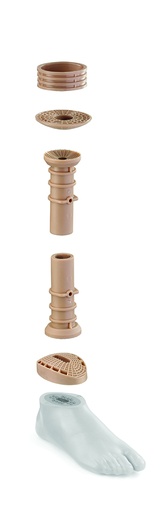

Functions and benefits:
The Module System, Transtibial, Child, is part of the Re- hab’Impulse modular system that permits prosthetic fitting for various levels of amputation and disarticulation of the lower extremities.The child transtibial kit consists of a set of components allowing different alignment configurations.

Intended use:
The Rehab’Impulse module system, transtibial, child, is intended for prosthetic fitting of users with a body weight of up to 60 kg (P3). This product is not intended for excessive physical activities.

Compatibility:
The components included in the set are compatible with the Rehab’Impulse prosthetic feet:
- Foot, SACH 2.0, sizes 14-21

Included in delivery*:
- 1x Cup, TTA/TTC/TFC/LS
- 1x Convex disc
- 2x Concave cylinder, M8, child
- 1x Convex ankle washer, child
- 1x Screw, countersunk head, FT, SS, M8x60
- 1x Flat washer, SS, 10.5/40/1.5

Storage conditions:
- Store product in dry conditions
- Store at room temperature (ideally between 15°C and 25°C)
- Keep out of direct sunlight or other sources of light with a high UV content
- Take precautionary measures against sparking and fire

Environmental conditions:
Recommended environmental conditions:

- Temperature range for use: -10°C to 60°C (14°F to 140°F)
- Relative humidity 0% to 90%, no condensing situation
- Avoid exposure to dust, sand, salt water, acids and urine
* Please note: Foot not included with the system. To be ordered separatly.

Functions and benefits:

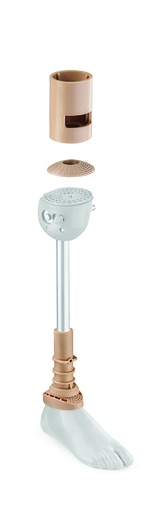

The Module System, Transfemoral, Child, is part of the Rehab'Impulse modular system that permits prosthetic fitting for various levels of amputation and disarticulation of the lower extremities. The child transfemoral kit consists of a set of components allowing different alignment configurations.

Intended use:
The Rehab'Impulse module system, transfemoral, child, is intended for prosthetic fitting of users with a body weight of up to 60 kg (P3). This product is not intended for excessive physical activities.

Compatibility:
The components included in the set are compatible with the Rehab'Impulse children knee joints and prosthetic feet:
- 74-00240 Knee Joint, Monocentric, Child, Beige
- 74-00241 Knee Joint, Monocentric, Child, Olive
- 74-00242 Knee Joint, Monocentric, Child, Terra
- Foot, SACH 2.0, sizes 14-21

Included in delivery*:
- 1x Cup, TTA/TTC/TFC/LS
- 1x Convex disc
- 1x Conical cup, transfemoral, child
- 1x Concave cylinder, M8, child
- 1x Convex ankle washer, child
- 1x Screw, countersunk head, FT, SS, M10x50
- 2x Flat washer, SS, 15/44/3
- 1x Flat washer, SS, 10.5/25/1.5
- 1x Hexagonal nut, SS, M10
- 1x Coiled spring expansion pin, SS, 5x40

Storage conditions:
- Store product in dry conditions
- Store at room temperature (ideally between 15°C and 25°C)
- Keep out of direct sunlight or other sources of light with a high UV content
- Take precautionary measures against sparking and fire

Environmental conditions:
Recommended environmental conditions:
- Temperature range for use : -10°C to 60°C (14°F to 140°F)
- Relative humidity 0% to 90%, no condensing situation
- Avoid exposure to dust, sand, salt water, acids and urine
*Please note: Knee joint and foot not included with the system. To be ordered separately

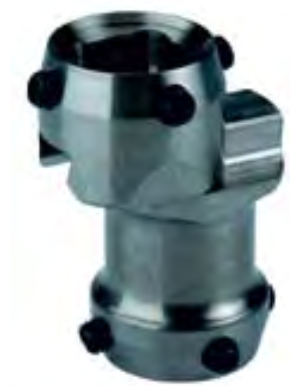

Used to connect lower extremity modular prosthetic parts. The part is used with PR05.A4 - Wooden Connection Plate. Its design allows inwards/outwards rotation.

Lenght: 65.5mm
Sliding range: 12mm

This gel liner, made of thermoplastic elastomer and wrapped in hypoallergenic cotton, provides optimal comfort for sensitive residual limbs, even irregularly shaped ones. Perfect for delicate skin, it reduces pressure points and absorbs moisture for daily comfort.

Features:
Ultra-soft and flexible material
Perfect fit for irregular shapes
Suitable for diabetic patients and sensitive skin
Enhance your patients' comfort and quality of life today!

sleeve gauntlet + cuff

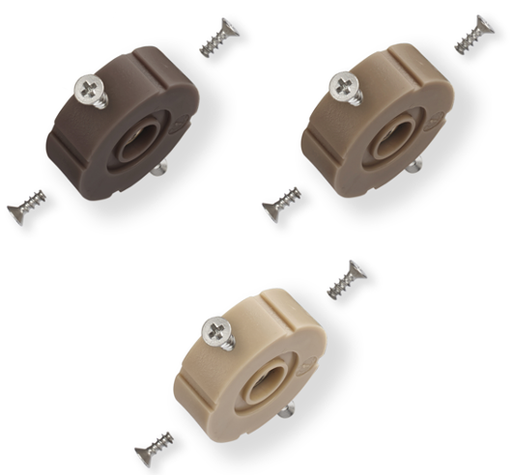

wrist unit + screws

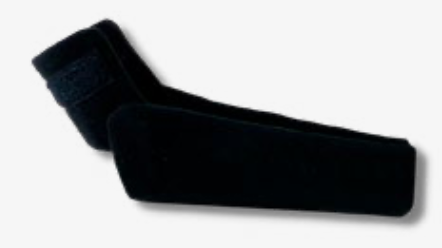

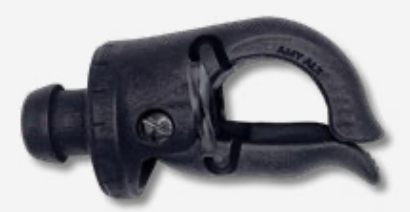

For ALX blank

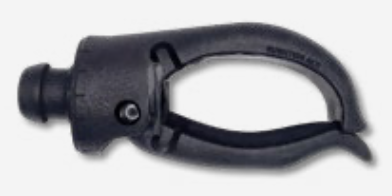

Large gripper

Small gripper
