bar width: 15.5mm
bar thickness: 3.5mm
bar length: 22.5mm (Upper) / 18.5mm (Lower)
Material: Stainless Steel

Used to ensure connection between ankle and foot
Length from joint
center=145mm

3mm / 60mm

3mm / 60mm

2.5mm / 57mm

2.5mm / 57mm

Length from joint
center=40.5mm

Length from joint
center=40.5mm

Length from joint
center=40.5mm

BRAND: ORTHOPUS

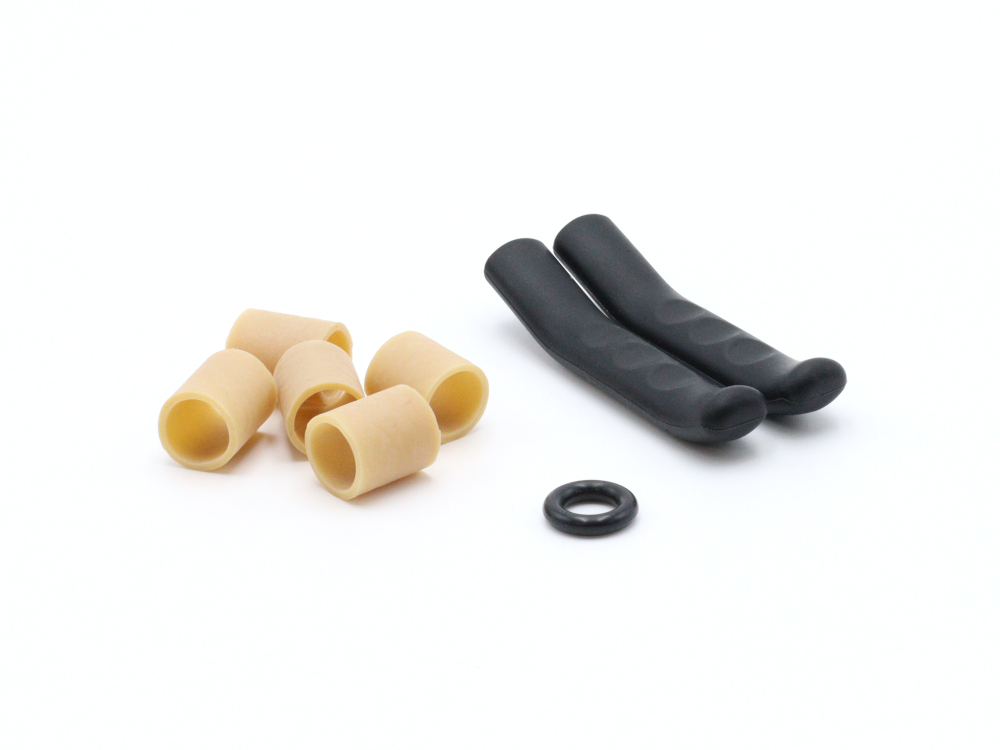

This kit includes:
- 5 rubber bands to vary the grip strength
- a washer to block the rotation of the hook on a wrist nut
- one pair of black silicone grips

Designed for lower extremity modular prostheses allowing inwards/outwards rotation.
Lamination dummy is included

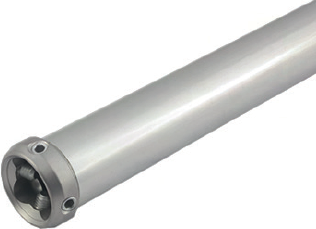

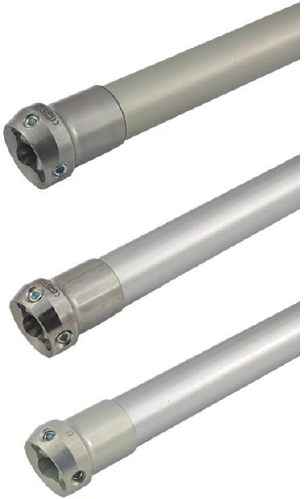

Adapter tubes with 10° contoured head used to connect lower extremity modular prosthetic parts.

Adapter tubes used to connect lower extremity modular prosthetic parts.

for feet size: 22-25cm

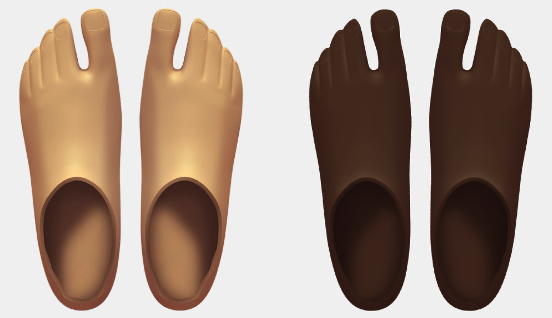

ELASTIC! That’s what the Upya foot cover is.
Another innovation: 1 model of foot cover for all Upya sizes, as easy as pie!
The Upya foot cover is available in light and dark flesh colours.
WEIGHT: 65 grams
MATERIAL: EVA

WARNING, it is recommended to have Upya and its spare parts installed by an orthopaedic professional.

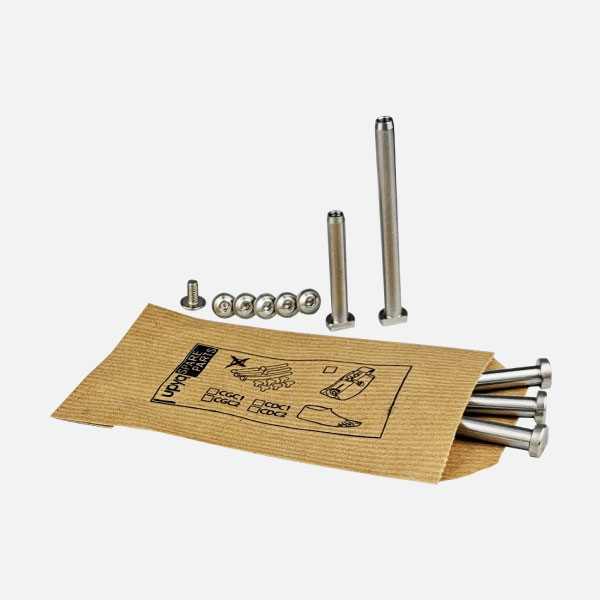

We have tried to make it as simple as possible, so the screw kit used to assemble Upya is composed of 4 short and 1 long axis.
Make sure to align the axis flat side with the flat side on the Upya’s polyamide parts.
WEIGHT: 70 grams
MATERIAL: 304 stainless steel and galvanised steel

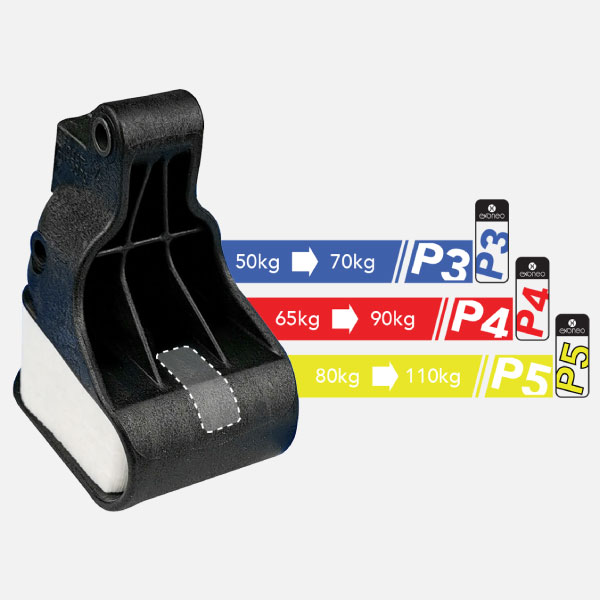

Upya’s comfort? That’s where it comes in!
The Upya heel consists of an extremely strong structural element made of 30% GF polyamide and a shock absorber similar to the soles of running shoes. You can choose between three density, P3,P4 or P5.
WEIGHT: 110 grams
MATERIAL: Polyamide 30% glass fibre reinforced; expanded polyurethane.

WARNING, it is recommended to have Upya and its spare parts installed by an orthopaedic professional.

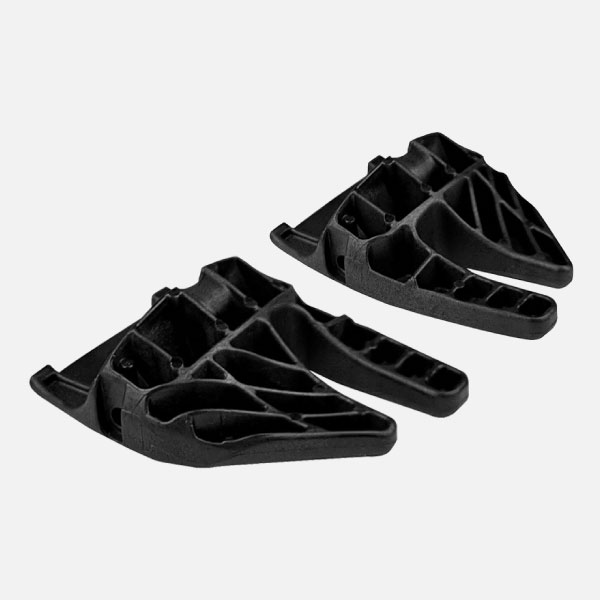

Upya is a DEMONTABLE biomechanical foot.
This means that you can change the toe to make a right foot a left foot, or a left foot a right foot! Easy, simple: Upya.
Don’t forget that the toe is fixed with a pin that you can find in the Upya screw kit.
Don’t forget that if you change the toe cap to the opposite side, you also have to change the Upya cosmetic shell.
WEIGHT: 60 grams
MATERIAL: 30% glass fiber reinforced polyamide

WARNING, it is recommended to have Upya and its spare parts installed by an orthopaedic professional.

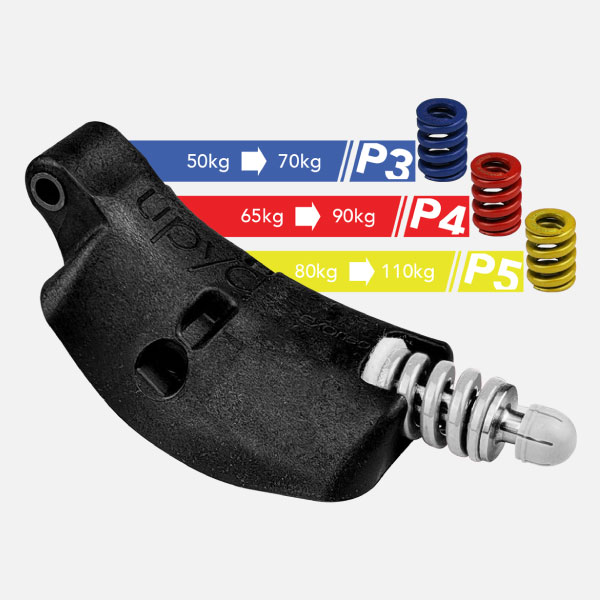

Its kick is what makes Upya unique.
Thanks to its perfectly calibrated spring, you will feel the comfort you have the right to expect. You can choose between three spring rates, P3, P4 or P5.
WEIGHT: 106 grams
MATERIAL: 30% glass-filled polyamide; 304 stainless steel and HLE steel.

WARNING, it is recommended to have Upya and its spare parts installed by an orthopaedic professional.

Max. 65kg

Max load: 65kg
Alloyed Aluminium

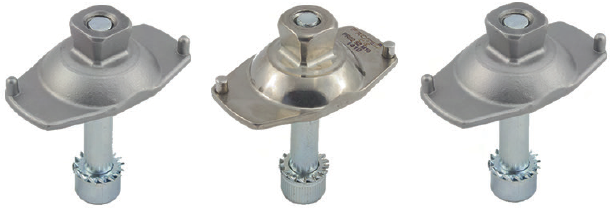

for feet size: 14-21cm

Designed for lower extremity modular prostheses allowing inwards/outwards rotation.
Lamination dummy is included

beige color

beige color

beige color

Max load: 65kg

cup, long sole, without dome

bar width: 14mm
bar thickness: 3mm
bar length: 317mm (Upper) / 292mm (Lower)
Material: Stainless Steel

bar width: 14mm
bar thickness: 3mm
bar length: 317mm (Upper) / 292mm (Lower)
Material: Stainless Steel

Degree of mobility: 2
Knee flexion angle: 165°

Length=410mm

Fabricated with high grade dacron web tape
Stainless steel anchor ring prevents binding or bunching
Furnished ready to fit

Fabricated with high grade dacron web tape
Stainless steel anchor ring prevents binding or bunching
4-bar buckles, axilla loop, "Y"-strap and anterior suspension
Furnished ready to fit

Length=410mm

Max load: 65kg
Stainless Steel

Max load: 65kg

Mobility degree : 3
Proximal connection : Pyramid adapter
Distal connection : Tube receiver
Knee flexion angle : 145°
System height : 153mm
Maximum body weight : 100kg
