For processing all types of leather, rubber and other materials. With long arm and frame pressing device. Cutting width up to 190 mm, splitting and cutting width max. 30 mm.

The carbon foot is intended for the patients with M2 — M4
activity levels (excepting sportive loads), unilateral or bilateral
trans-femoral amputation at all levels or trans-tibial
users on the line of the upper and middle third; it can be
used in prostheses after the disarticulation of knee or hip
joint.
The foot is available in left and right design and in
8 categories of stiffness suitable for the patients from
45 kg to 130 kg depending on the patient’s activity level.
The carbon foot consists of extended carbon fiber toe and
heel blades with nonlinear stiffness characteristics, which
provide energy return proportional to the pace of the walk,
easy and smooth rollover.
The foot incorporates an innovative one-piece elastic
connection of the toe element and the adapter that allows
for a low building height of the foot and a high degree of
energy efficiency when walking.
Technical solutions applied in the design of 1H15Y feet
aimed at ensuring high safety level, significant load reduction
on the spine and sound limb, providing a natural gait.
Activity level: M2, M3, M4
Maximum patient weight: 45-130kg

also referenced under: OOMAOVENTHERDIG, CRM 53

- Perfect for cutting soft and hardwoods, plastics, plastics and non-ferrous metals.
- Tooth-tip Hardened Band Saw Blade with approx. 60-62 HRC
- The tooth shape, the arrangement of the teeth and the hardened tooth tips guarantee a perfect straight cut and a long service life
- The heat treated steel strip counteracts the bending of the band saw blade and thus reduces the risk of sheet tearing
- Saw bands German quality stainless steel with optimum price-performance ratio

Carbon Foot is intended for patients with M1–M3 activity
level unilateral or bilateral transfemoral amputation at all
levels or transtibial amputation on the boundary of the
upper, medium and lower-third of it, can be used in prostheses
after the disarticulation of the knee or hip joint.
The foot is produced in right and left versions in 7 categories
of stiffness that are selected depending on the
patient’s weight from 45 kg to 125 kg.
Carbon Foot has the improved quality of damping in the
phase of front push, easy and smooth rollover.
Application of the front elastic element with nonlinear
stiffness characteristics provides a return of energy proportional
to the walking pace.
Design of the front elastic element provides the increased
stability in stance phase and energy return in the phase
of rear shock.
The cosmetic footshell of 1H21Y foot has a slim design
and will be convenient for women’s shoes. The cosmetic
footshell of 1H20Y foot has a standard design.

Hardener for pedilen foam

Very stable and rigid foam to fabricate positive moulds and models subject to high mechanical load, for example lasts for shoes and insoles as well as tip additions.
- expansion factor: approx. 1.4
- density: approx. 700kg/m³
- good nailable

Dimensions WxDxH: 850 x 500 x 1140mm
Weight: 83,000kg
Max. stitch length: 5mm
Sewing speed: max. 300 stitches
Needle system: 332 L LG, 332 LG
Footprint: 1000 x 750mm
max. presser foot stroke: 12mm

Optimized for material: Steel

also referenced under: EMACSAWSJ6B3

Size 1 = height 6.3mm
Size 2 = height 7.0mm
Size 3 = height 7.2mm

Mobility class: 1-3 for BK stumps

made from medical grade* TPE-Gel
total length: approx. 350 mm
Gel thickness: 3 mm

high adhesion and excellent comfort
gel provides cushion and minimizes shearing loads
additional rotational stability
highly stretchable outer fabric supports easy donning
sleeve for suction suspension, provides high security

Suitable for
Livestock watering
Livestock watering with solar solutions
Agriculture solar solutions
Solar boosting and water supply solutions
solar heating system
municipal water supply
Community solar solutions
Municipal solar solutions
Shut down
Wind and solar powered submersible pumps with integrated inverter. The pumps can be operated with alternating and direct current and can also be fed from the mains.

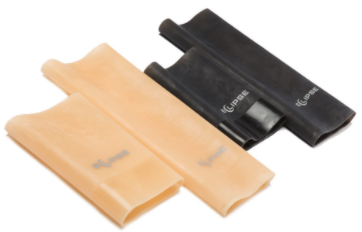

Designed for superior suspension, secure fit and product longevity, the Eclipse Silicone Suspension Sleeve offers high performance and extreme durability for you patient. The unique dual sleeve design will enable the suspension at any critical moment.

Features:
Reinforced medical grade silicone and Parylene® coating provides maximum durability
Dual sleeve design and non-slip inner strip eliminates slippage
When there is a broken sleeve and leak, you just turn the outer layer and seal the hole.
Able to fold down for any activity
available in sizes and colors

• Suspension sleeve but not for vacuum
• Two way stretch
• Caucasian skin color

This vise tilts 90 degrees and is solidly constructed. Thanks to its excellent clamping force, the vice does not move when drilling or milling.
Made of cast iron, the vise is strong and sturdy. This vise has an adjustable tilt angle between 0 and 90 degrees, and a locking pin on the chain to secure it every 15 degrees.
This unit also features a stable base, which can be easily mounted on your workbench. It is compact and lightweight, making it suitable for mobile use.

Specifications
Material: cast iron
Jaw width: 105mm
Jaw opening: 110 mm
Jaw depth: 47mm
Base size: 190 x 185 mm (L x W)
Tilt adjustment: 0 - 90 degrees
Height: 120mm (lying), 220mm (standing)

Max. 20 degrees adjustable lamination
Spring loaded mechanism
Pre-bent lamination plate

Material: Aluminium alloy
System height: 220mm
System weight: 760g
Maximum flexion angle: 115°
Maximum body weight: 100kg
Modular connector options: D-TLP-AAH, D-TLP-SAH

Max. 20 degrees adjustable lamination
Spring loaded mechanism
Light-weight construction
Pre-bent lamination plate

Material: Carbon fiber
System height: 250mm
System weight: 600g
Maximum flexion angle: 115°
Maximum body weight: 100kg
Modular connector options: D-TLP-AAH, D-TLP-SAH

also referenced as: OOMAOPRECR75C, CRM 73

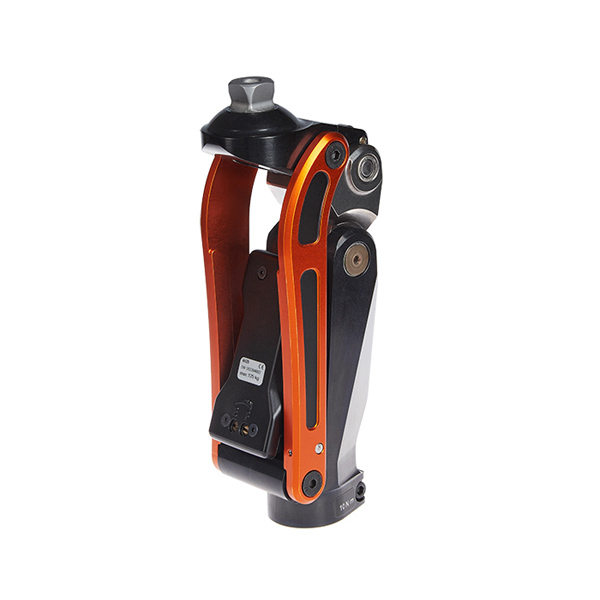

Polycentric pneumatic knee joint is intended for patients with moderate and high activity level, unilateral or bilateral transfemoral amputations at any level including the knee joint disarticulation and weight up to 125 kg.
Pneumatic swing phase control with flexion / extension adjustment allows good adaption to changes in walking speed up to 6 km/h.
Polycentric design of knee ensures increased security in the stance phase and geometric shortening of the prosthesis
in the swing phase.
Center of rotation of knee joint is located in the forefoot area that together with polycentric design ensures extra security for users.
Knee joint has an additional simple and convenient adjustment of the security in stance phase for users with different activity level — from high for the patients with low activity up to the standard for active patients.
Activity level: 2-3
Maximum flexion angle: 150°
Maximum weight of patient: 125kg
Material: Aluminium alloy
Weight: 875g

Version: Strong, forged design, special tough varnish; taper section (cutting part) bright metal. Slight internal taper for releasing the cut pieces.
Application: For punching or manufacturing gaskets and gasket rings of rubber, leather, felt, plastic, cork, fabric or similar materials.
Supplied with: 1 each steel wad punch ⌀ No. 832001: 15 pcs.
size 2-30
(2 mm increment)
Note: Use an underlay of wood, leather etc. when punching to avoid damage.

Technical Data
Packaging: Tool roll
Number of steel wad punches: 15
Type of product: Punching tool

For knee joints like TK2100, MAUCH, MAUCH+

For knee joints like 6H02, 6H23, 6H24, TK1900, TK2000

For knee joints like 6H01, 6H06, 6H09

The Upya aesthetic clip is specially designed to fit the ankle of your Upya foot.
Its flat surface facilitates the application of an aesthetic leg foam.
WEIGHT: 20 grams
MATERIAL: PLA 3D impression

WARNING, it is recommended to have Upya and its spare parts installed by an orthopaedic professional.

10°
max. 125kg

Stainless Steel

Stainless Steel

Vacuum-press for pairwise manufacturing of insoles and foot-orthotics. With vaccum pump

Type: Vacuum-press , Bench-top version for use with external vacuum-supply
Frame Dim. (LxW): 520 x 350mm, gas-shock supported, frame tension adjustable
(equipped with Soft-bladder)
Vacuum-Pump: Rotary vane, oil- and maintenance-free, 6 m/h / 200mbar, vacuum-automatic controlled
Power supply: 230V / 50Hz
W 360 x D 650 x H 250 mm W 360 x D 650 x H 250 mm
Weight: 30 kgs

Vacuum-press for manufacturing of insoles and foot-orthotics. With vacuum pump

Type: Vacuum-press , Bench-top version for use with external vacuum-supply
Frame Dim. (LxW): 520 x 350mm, gas-shock supported, frame tension adjustable (equipped with Soft-bladder)
Vacuum-Pump: Rotary vane, oil- and maintenance-free, 6 m/h / 200mbar, vacuum-automatic controlled
Power supply: 230V / 50Hz
W 360 x D 650 x H 250 mm
Weight 30 kgs

Excellent formability, very resistant to stress cracking and abrasion with high strength and good energy absorption properties.
Processing temperature (°C) *oven temperature: 165-180°C

Suitable for:
All FEIN Multitools, as well as all other common tools on the market.
Cutting width: 35mm
Content: 5
Material: Wood, plastics

100pc

Dimensions WxDxH: 850 x 500 x 1140mm
Weight: 83,000kg
Max. stitch length: 5mm
Sewing speed: max. 300 stitches
Needle system: 332 L LG, 332 LG
Footprint: 1000 x 750mm
max. presser foot stroke: 12mm

Dimensions WxDxH: 850 x 500 x 1140mm
Weight: 83,000kg
Max. stitch length: 5mm
Sewing speed: max. 300 stitches
Needle system: 332 L LG, 332 LG
Footprint: 1000 x 750mm
max. presser foot stroke: 12mm

Version: Switch not included
Dimensions WxDxH: 420/650x270x150mm
Diameter: 150mm
Material: Galvanised
Volt: 24V DC / 230V AC

Version: Switch not included
Dimensions WxDxH: 420/650x270x150mm
Diameter: 125mm
Material: Galvanised
Volt: 24V DC / 230V AC
