Shuttle Lock 7H09A is intended for tibia and hip prosthe- sis for conjunction with a silicone liner. The lock allows automatic fixation. The pin is unlocked by pressing the spring-loaded lock button.
The lock pin is pulled up by turning the lock button, allowing to eliminate pin motion along the axis and clicking sounds.
There is a lamination kit.
Activity level: М1, М2, М3, М4
Material: Aluminum alloy
Weight: 111g

Lock 7H07A is intended for use in tibia prosthesis with long stump and hip prosthesis for conjunction with a silicone liner. The lock allows automatic fixation. Release of pin occurs when pressing the spring-loaded button of lock.
Activity level: М1, М2, М3, М4
Maximum weight of patient: 100kg
Material: Aluminum alloy
Build height: 45 mm
Weight: 304g

Lock 7H05A is intended for use in tibia and femur prosthesis in conjunction with a silicone liner, which is threaded pin of lock. The lock allows automatic fixation. Release of pin occurs when pressing the spring-loaded button of lock. By turning the lock button is carried out fixation of pin that allows eliminating piston-movement and clicking sounds.
The device has a sphere with pyramid for connection with bearing module and prong steel base for connection with socket.
Activity level: М1, М2, М3, М4
Maximum weight of patient: 100kg

Single Axis Pneumatic Knee Joint 6H29 with weight acti- vated stance control offers a safe and smooth gait for moderately and highly active users.
Pneumatic swing phase control with extension assist and independent flexion / extension adjustment may be set from regular to dynamic walking pace in the range up to 6 km/hour.
At the last 10° to full extension pneumatic damper has an additional feature that allows to reduce an angular rate and prevent an impact in extension phase.
Design of the pneumatic damper provides stability of settings for the entire operating period.
Knee joint is equipped with a weight activated brake mechanism that provides a secure stance phase and can be totally released when the weight is transferred to the forefoot without lifting the hip thus saving energy for dynamic pace.
Activity level: М1, М2, М3
Maximum flexion angle: 135°
Maximum weight of patient: 125kg
Material: Aluminium alloy
Weight: 890g

Polycentric Pneumatic Knee Joint 6H23 is intended for patients with moderate activity level, unilateral or bilateral transfemoral amputations at any level with the exception of knee joint disarticulation. The Knee Joint 6H23 provides pneumatic swing phase control and independent flexion/extension adjustment. The Joint 6Н23 is well adaptive to changes in walking tempo in the extended range speeds — from slow to rapid step without changing the initial settings.
Polycentric design ensures increased security in the stance phase and geometric shortening in the swing phase, increasing the distance from the base surface during swing phase that enhances the confidence of patient in the prosthesis.
Activity level: М2, М3
Maximum flexion angle: 150°
Maximum weight of patient: 100kg
Material: Aluminium alloy
Weight: 780g

Polycentric Knee Joint 6H09А is intended for patients with low or moderate level activity. The joint is used in hip prosthesis for transfemoral amputation, including transfemoral disarticulation.
Maintenance-free needle bearings used on all axes of joint ensure high reliability and increasing resource of knee joint.
The kinematics of the joint allows functional shortening of prosthesis up to 15 mm during swing phase. Knee Joint 6H09А has adjustable extension assist.
Activity level: М1, М2
Maximum flexion angle: 135°
Maximum weight of patient: 100kg
Material: Aluminium alloy
Weight: 460g

Single Axis Knee Joint with Lock 6H06A is intended for patients with low activity and maximum weight 125 kg, unilateral or bilateral amputations at any levels except of knee disarticulation.
The joint is provided with a locking device that locks the joint in extreme extended position thus ensuring a total secure at stance phase. Design of the joint eliminates backlash during operation due to design solution protected by patent of Russian Federation.
Flexible cable of the lock can be mounted on either the right or left side of the joint.
The knee joint is delivered with tube clamp of 30mm diameter (6H06A/3) but it is also available with pyramidal connection (6H06A/1).
Activity level: М1
Maximum flexion angle: 120°
Maximum weight of patient: 125kg
Material: Aluminum alloy
Weight: 295g

Single Axis Knee Joint with Lock 6H06A is intended for patients with low activity and maximum weight 125 kg, unilateral or bilateral amputations at any levels except of knee disarticulation.
The joint is provided with a locking device that locks the joint in extreme extended position thus ensuring a total secure at stance phase. Design of the joint eliminates backlash during operation due to design solution protected by patent of Russian Federation.
Flexible cable of the lock can be mounted on either the right or left side of the joint.
This knee joint is with the pyramid (6H06A/1) but it is also available with tube clamp of 30mm diameter (6H06A/3).
Activity level: М1
Maximum flexion angle: 120°
Maximum weight of patient: 125kg
Material: Aluminum alloy
Weight: 305g

Single Axis Friction Knee Joint 6H02 is intended for patients with low and moderate activity, unilateral and bilateral amputations or disorder of support function of retained lower limb.
At angles of flexion up to 15 ° the further flexion of joint is blocked under the load that provides a secure stance phase.
The joint is fully released when unloaded, wherein the joint becomes movable again.
There is an adjustable extension assist with weight 60g.
Friction bearings of modern polymer material used in the knee joint provide the smoothness and compensate side play.
Activity level: М1, М2
Maximum flexion angle: 120°
Material: Stainless steel/Titanium
Maximum weight of patient: 125kg/150kg
Weight: 680g/480g

The casting table has been designed to meet the needs of all kind of prothetic patients, including lower extremity prostheses, hip and knee disarticulation prostheses.
The geared system and the ergonomic design enable the technician to adjust the height appropriately allowing the patient to comfortably stand upright while the measurements are taken.

With roll-about tray, 220V-380V / 20kW / 50Hz, working height: 1800x1600x400mm
External dimensions: 2000x1700x500mm

T-PLATE foot pressure plate is the most accurate and cost-effective way to identify the plantar pressure profile.
Traditional tools cannot provide the same information as the T-Plate. It will increase your credibility and most of all help you make the good diagnosis.
Deliver with software and manual in English.

• Supply voltage: 230V, 50Hz
• 1 sheet
• Useful surface 36 x 43 cm
• Dimensions 39.5 x 51 x 11 cm
• Number of tubes 1

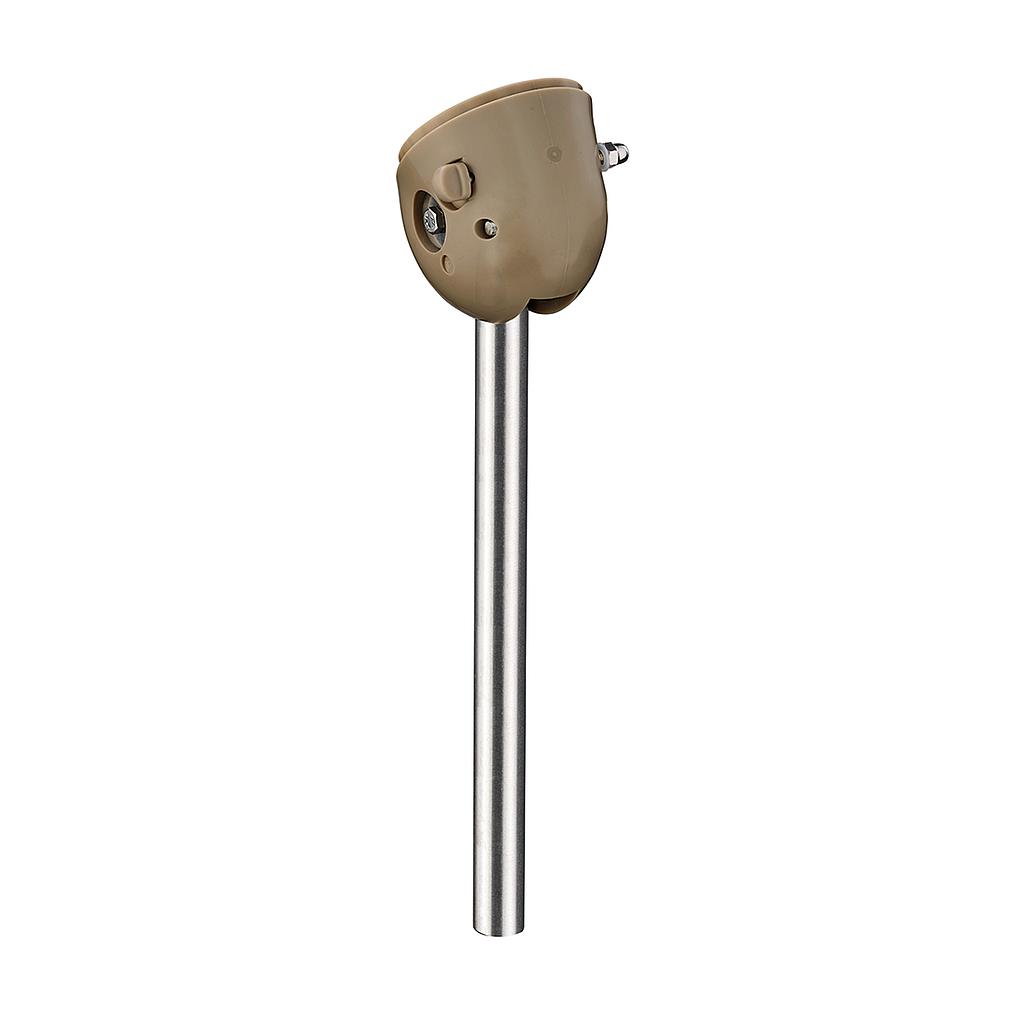

The Knee Joint, Monocentric, Child, is a durable and versatile prosthetic knee joint with an integrated manual locking system. This monocentric knee joint provides a bending angle of up to 125°.

Vacuum-press for manufacturing of insoles and foot-orthotics. Without vacuum pump

Type: Vacuum-press , Bench-top version for use with external vacuum-supply
Frame Dim. (LxW): 520 x 350mm, gas-shock supported, frame tension adjustable (equipped with Soft-bladder)
Vacuum-Pump: none
Power supply: 230V / 50Hz
W 360 x D 650 x H 250 mm
Weight 21 kgs

Vacuum-press for pairwise manufacturing of insoles and foot-orthotics. With vaccum pump

Type: Vacuum-press , Bench-top version
Frame Dim. (LxW): 520 x 350mm, gas-shock supported, frame tension adjustable
(equipped with Soft-bladder)
Vacuum-Pump: Rotary vane, oil- and maintenance-free, 6 m/h / 200mbar, vacuum-automatic controlled
Power supply: 230V / 50Hz
W 360 x D 650 x H 250 mm W 360 x D 650 x H 250 mm
Weight: 30 kgs

Packaged in a blue plastic box with pilot drills
Content :
1 set of HSS hand taps each:
DIN 352 M 3 / 4 / 5 / 6 / 8 / 10 / 12
1 HSS die of each DIN 223:
M3 / 4 / 5 / 6 / 8 / 10 / 12
HSS twist drills, DIN 338 N, ground:
Ø2.5 / 3.3 / 4.2 / 5.0 / 6.8 / 8.5 / 10.2mm
1 die holder DIN 225:
20x5 / 20x7 / 25x9 / 30x11 / 38x14
1 left hand wrench DIN 1814:
Group 1 + 2
74-01202

74-01752

Mobility degree : 3
Proximal connection : Pyramid adapter
Distal connection : Tube receiver
Knee flexion angle : 145°
System height : 153mm
Maximum body weight : 100kg

permanently elastic thermoforming film, moulding temp: 120-135 °C / 248-275 °F

permanently elastic thermoforming film, moulding temp: 120-135 °C / 248-275 °F

l=520mm

S = 40cm / 12cm
M = 45cm / 13cm
L = 56cm / 16cm
XL = 68cm / 17cm
XXL = 80cm / 18cm

also referenced under: OOMAMARPOL3500A, OOMAMARPOL3500C CRM 90, CRM 90.1

with round jaws
74-00809

Degree of mobility: 3
Proximal connection: 3 Prong Socket Adapter (included)
Distal connection: tube receiver
Knee bending angle: 150°

Degree of mobility: 3
Proximal connection: pyramidal adapter
Distal connection: tube receiver
Knee bending angle: 150 °

Flexion angle: 145°
Mobility: 3

Degree of mobility: 3
Proximal connection: pyramidal adapter
Distal connection: tube receiver
Knee flexion angle: 150°

Mobility degree : 3
Proximal connection : Pyramid adapter
Distal connection : Tube receiver
Knee flexion angle : 145°
System height : 153mm
Maximum body weight : 100kg
