This high-performance convection oven is specially designed for orthopedic centers, providing uniform and controlled heating for plastic thermoforming and plaster model drying. Built with stainless steel, it ensures exceptional durability and efficient operation in demanding environments.

Features & Benefits:
✔ Advanced convection technology: Equipped with two powerful fans ensuring even heat distribution across the entire work surface.
✔ Optimized for thermoforming: Designed for use with outer rings, ensuring ideal heating for plastic sheets.
✔ Robust and durable construction: Made of stainless steel inside and out, ensuring excellent corrosion resistance and easy maintenance.
✔ Integrated support and storage:

Steel support frame for better stability.
Storage shelf for plastic sheets.
✔ User-friendly design:
Viewing window allows monitoring the process without opening the door.
Ergonomic and energy-efficient opening system, reducing heat loss.
Interior lighting for better visibility while working.
✔ Electronic heat regulation:
Precise control for optimal temperature management.
Adjustable temperature range from 30°C to 200°C.
✔ Smooth sliding system:
Aluminum sliding shelf, coated with Teflon sheets, mounted on ball-bearing rollers for easy and effortless handling.
Technical Specifications:
📏 External dimensions (L x W x H): 1450 x 1480 x 1500 mm
📏 Internal dimensions (L x W x H): 1200 x 1270 x 500 mm
📏 Work surface (L x W): 1100 x 1030 mm
🌡 Temperature range: 30°C - 200°C
⚡ Power requirements: 400V / 50Hz / 4.5 kW
⚖ Weight: 280 kg

Included with the Oven:
🔧 2-year warranty on spare parts, ensuring simplified maintenance and uninterrupted operation.

Thanks to its smart design and advanced features, this convection oven is an essential piece of equipment for orthopedic centers, guaranteeing precise thermoforming and effective drying of plaster models.

also referenced under: OOMAOVENCR50G, CR5000G

Directions
- Protection cream and skin care in high demand
- in case of contact with aqueous solutions, surfactants, alkaline solutions
- when handling plasters or substances insoluble in water, e.g. oils and lacquers.

Properties
- Oil-in-water emulsion
- pH neutral
- moisturizing
- quick to put on
- has a regulating effect on the water balance and elasticity of the skin
promotes regeneration
- Protects against water, fluids, dirt, chemicals or detergents

Included:
Basic-unit Assistant-System
Foot-plate Assistant-System
Scoliosis-unit Assistant-System
Mirror-unit Assistant-System
Head strap with frame Assistant-System
Block and tackle Assistant-System
Seat- / stand-support (with fixing parts)

Equipment:
Quick-action clamping device, two inflatable clamping devices for attaching sockets, holder for knee joint adapter inserts, integrated measuring accessories, e.g. mm rulers, goniometers, height-adjustable footplate, TT and TF alignment pads. To be used for bench alignment of Ottobock modular lower limb prostheses (TF and TT) according to Ottobock alignment recommendations
Dimensions:
WxDxH 800 x 900 x 2,100 mm
31 1/2 x 35 3/8 x 82 5/8 inch
Scope of delivery:
Includes one right and one left adapter insert for Ottobock knee joints (adapter insert article numbers: 743Y579, 743Y580, 743Y581, 743Y582, 743Y583, 743Y584, 743Y608, 743Y629, 743Y681)

260mm

210mm

74-00806, 719G1

950W
560 tr/min

Oscillating plaster saw. Power : 500 W.
From 6.500 to 24.000 oscillations/minute.
Weight : 1.528 kg.
Supplied with 2 blades : Ø 50 and Ø 65 mm for natural plaster.

made of premium steel, with round, curved and plastic-coated shank, flexible blades, polished

The vacuum forming workstation with integrated pump combines several functions: The system can be used for the vacuum forming and draping of plastics around the plaster model. Thanks to the compact design of the vacuum pump, which is already integrated, this workstation is particularly suitable for smaller workshops.

Dimensions WxDxH: 1000x450x1100mm
Version: Single version (vacuum pipe top and on the side)

Cover plate, plaster dosing worm gear, 4 swivelling wheels, plaster bag ripper
706x1100x1228mm
230 liters

Stabilization and movement limitation for wrist joint, by integrated preformed aluminum splint from palm side, when 2 elastic splints stabilize upper part of the hand. Non elastic straps provide perfect regulation of compression, and construction of the immobilizer secures very easy application, using only one hand. This product is ambidextrous and can be used either left or right. Indications: Medium and serious sprains, after the plaster cast, inflammations, degeneration of joint, broken bones of wrist.

Indications:
for partial, surface or circular padding in case of casts, synthetic rigid bandages and splint bandages
Properties:
stays swollen even under the action of humidity thanks to the non-degreased cotton fibers

is composed of an acrylic adhesive mass and a polyethylene support reinforced with a polyester canvas, this multi-purpose canvas tape tears easily by hand both vertically and horizontally, it unwinds regularly without winding effect. the adhesive, this outer tape is waterproof, withstands outdoor conditions for 8 weeks and no residue remains after removal, the canvas backing resists tool wear and allows the tape to remain intact, ensuring hassle-free removal , the color green is easy to spot on various surfaces, it offers a high immediate adhesion while being easily repositionable, the low thickness ensures maximum conformability, also on irregular surfaces, ideal for plastering and painting work. exterior (e.g. renovation of facades), temporary protection of window and door frames, window sills, facades, floor markings and other res sensitive surfaces, temperature resistant up to + 90 ° C, suitable for many other applications, eg. ex. for film fixing, cable assembly or marking

surface satin finished, material thickness 1.5 mm, seamless welded bowl with diameter 450 x 500 x 150 mm, bowl and drain board with revolving channel, 1 1/2" centric waste hole punch, removable plaster basket with cover.

Very soft foam suitable even for children’s feet, with the best reproduction of contours.
- No crumbling
- Special German quality with great shape retention upon plaster pour
- No dusting even after a long period

- to treat small injuries in the hospital, in the cabin, at home or on the go
- for sensitive skin
- soft and supple
- slightly elastic in the direction of the width
- adapts well to the contours of the body - fixes the vulnerable cushion to the skin in complete safety
- reduced risk of adhesion to the wound thanks to the film
- almost painless dressing change
- continuous vulnerary cushion
- can be cut individually

Inelastic special plaster for tape bandages, suitable for limiting the movement of joints in the event of injuries. Consists of high quality inelastic adhesive fibers. Easy to tear off by hand

Plastic bucket, sturdy model. With graduation and heavy metal handle.

Integral stainless steel worktop with wooden reinforcement
Integral chrome steel design
Height adjustable feet
Item delivered in spare parts to assemble yourself
Working height 850 mm
Large load capacity
Particularly high stability
Square feet profile
Easy cleaning
Dimensions (W x D x H): 600 x 700 x 850 mm

Integral stainless steel worktop with wooden reinforcement
Integral chrome steel design
Height adjustable feet
Item delivered in spare parts to assemble yourself
Working height 850 mm
Large load capacity
Particularly high stability
Square feet profile
Easy cleaning
Dimensions (W x D x H): 2000 x 700 x 850 mm

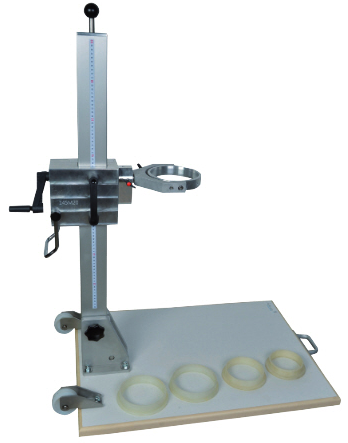

for plaster casting under body load incl. base plate 145M21 and one casting ring set 145M22/S
mobile use with transport castors and -handle
space saving due to built-in folding mechanism
quick-adjustment lever provides even easier height settings of the casting apparatus in seconds
high quality, sturdy choice of material
exact adjustment options by means of crank handle

Technical data

space required: 2000 x 2000 mm
dimensions W x D x H: 900 x 600 x 1120 mm

Integral stainless steel worktop with wooden reinforcement
Integral chrome steel design
Height adjustable feet
Item delivered in spare parts to assemble yourself
Working height 850 mm
Large load capacity
Particularly high stability
Square feet profile
Easy cleaning
Dimensions (W x D x H): 1800 x 700 x 850 mm

To be used for functional plaster casting under weighted conditions
Dimensions WxDxH: 600 x 800 x 1.115 mm
Space requirements: 2,000 x 2,000 mm
Weight (net): 21 kg

To be used for: Taking plaster negatives under load for the fabrication of a TT socket
for: for attachment to 743A11 Ottobock casting frame
Weight: 5.8kg
Scope of delivery:
1x adapter for connection to 743A11 Ottobock plaster device
3x retaining ring for casting tube (110mm, 140mm, 180mm)
1x 743Y760=90 casting tube (90mm)
1x 743Y760=110 casting tube (110mm)
1x 743Y760=140 casting tube (140mm)

Features:
- sturdy design made of square steel tube
- container made of 1,5 mm sheet metal steel
- plaster discharge in front with slide
- fine allotable plaster quantity with conveyer screw
- cover lid easy to open with safe retention via 2 gas springs
- removable grate with opening device for plaster bags
- lid with dust seal
Technical data:
- dimensions W x D x H: 750 x 750 x 1320 mm
- capacity: 340 litre / 320 kg
- conveyer screw: Ø 95 mm
- pipe: Ø 100 mm
- colour: RAL 7035 light grey

The adapter sleeves are slid onto the 743Y55 alignment axis and positioned in the plaster negative. Adapter sleeve made of rigid foam for receiving the 743Y56 adjustment adapters in the plaster positive.

Using the plaster modelling aid, you can process plaster models quickly and efficiently. Continuous clamping and re-clamping of the plaster model is now a thing of the past.
Your production process is optimised.
The plaster modelling aid saves time and labour costs, facilitating everyday work routines.
Plaster models weighing up to 40 kg can be processed with the plaster modelling aid.
Dimensions WxDxH: 119 x 55 x 130 mm
Equipment: 4 attachments with diameters of 16 mm, 21 mm, 26 mm and 36 mm
Weight: 1.4 kg
Material: Stainless steel
To be used for: for plaster modelling without securing the plaster model with jaw clamps or ring clamps; for various tube diameters
Type of Planning and Equipment: Plaster Casting and Plaster Modification

716Z1

716G1

4-chamber purification system, easy to clean with film insert, visual inspection of the height of the slurry thanks to transparent container, no odour nuisance thanks to closed system, no overflow, 2 inch diameter discharge connection
Equipment Transparent container with film insert and quick-release lock to be used for separating plaster; to be installed beneath the plaster/washing basin
Dimensions Ø x H 13 3/8 x 12 5/8 inch
Scope of delivery 1 supply hose, straight, length 19 5/8 inch, 1 1/2" 1 flexible drain hose, length 19 5/8 inch, outflow 2 - 1 5/8 inch

Plastic coated enclosed unit, with two drawers and two swing doors, seamless table top, with three sided gallery with an adjustable plastic shelf, push handle and four wheels, Ø 125 mm, electrically conductive, with wall bumpers
Dimensions WxDxH: 630 x 580 x 930 mm
Working height: 860 mm
Weight: 62 kg
Colour: grey-white (RAL 9002)

To be used for creating a plaster negative of the foot with various heel heights and adjustable tip
lift in the forefoot area, especially appropriate for AFO, KAFO, inserts.

Scope of delivery: 1x base plate, 1x forefoot wedge, guide rods, 1/4 inch foot rest, 4x 3/4 inch height
adjustment plate, 1x 3/8 inch height adjustment plate, 1x 1/4 inch height
adjustment plate

For attachment to the Ottobock 743A11 casting apparatus. Provides functional casting of ischial containment sockets while bearing weight. Has pneumatic pressure adjustment and a short-stroke cylinder. Pressure regulator provides individual pressure adjustment of the femoral pad. The pneumatic unit of the SIT* cast casting apparatus can be directly connected to the compressed air supply system (connecting hose and service unit with pressure regulator are not included in the delivery).
Scope of Delivery:
ncludes 8 SIT-casting forms: 743Y50=L1, =R1, =L2, =R2, =L3, =R3, =L4, =R4

Equipment 2x 743Y26 pressure blocks
Dimensions WxDxH 235 x 350 x 59 mm
Weight 2.8 kg
To be used for Plaster casting for hip/knee disarticulation patients

To be used for three-dimensional alignment of leg orthoses and positioning of knee and ankle joint points on a plaster negative or plaster positive.
Dimensions WxDxH: 270 x 380 x 770 mm

Mixer for paints and coatings. Mixer with hexagon profile for clamping in a mandrel.
Up to 20 kg, 10 mm hexagon

Ideal for storing plaster molds and models
Allowable shelf load: 150 kg
Number of shelves: 5
Dimensions: 1060x536x2000mm
Total maximum load: 1300 kg

Lock 7H08A is intended for use in tibia (including for the manufacture of sockets according to express prosthetics technology) and femur prosthesis.
The principle of locking is the same as for the lock 7H 05A. Consists of an insert with a hemisphere and an area under 4 holes (installed on plaster positive before lamination or thermoforming) and the lock case (installed during assembly of the prosthesis on the outside of the socket). In the distal part of the lock there are holes for mounting adapter - 7H01K, 7H02K, or 7H03K. Complete with 8 steel screws, plastic cone and screw for locking an insert on the positive.
Activity level: М1, М2, М3, М4
Maximum weight of patient: 125kg
Material: Aluminum alloy
Maximum weight of patient: 125kg
Weight 175g

Create casts for immobilization of limbs after fractures, operations and orthopedic corrections
