Dimensions: 865x670x1125-1525mm
Power: 0.75 kW
Voltage: 230V
Amperage: 7A

Dimensions WxDxH: 600 x 600 x 990 mm
Material: Steel
Vacuum connection: 13mm
Weight: 45 kg
Colour: Light grey (RAL 7035)

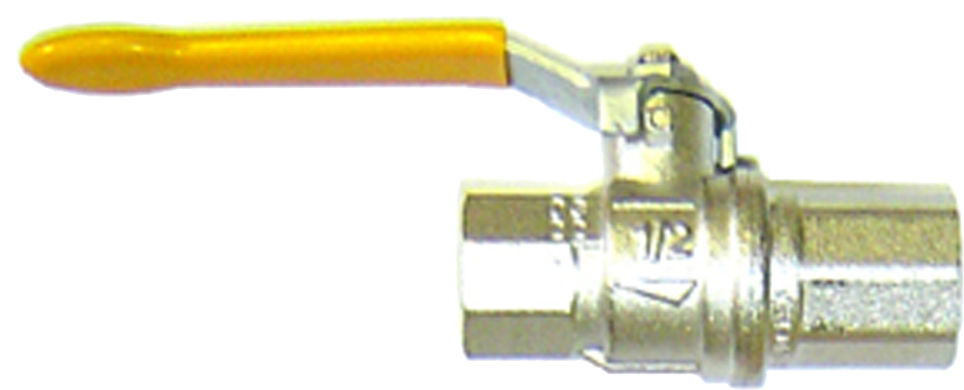

Scope of delivery: 704B1=140 vice, 704G11 clamping fixture "Orthofix" for exhaust tubes, 755X221 vacuum pipe with exchangeable vacuum forming plate (diameter 360 mm), ball valve, 4m hose, mounting materials for bolting to the floor
Optional accessories: 704Y30 Floor plate - Steel, galvanised, 800 x 800 x 10 mm
755X181 Foot pedal for vacuum control

The vacuum forming workstation with integrated pump combines several functions: The system can be used for the vacuum forming and draping of plastics around the plaster model. Thanks to the compact design of the vacuum pump, which is already integrated, this workstation is particularly suitable for smaller workshops.

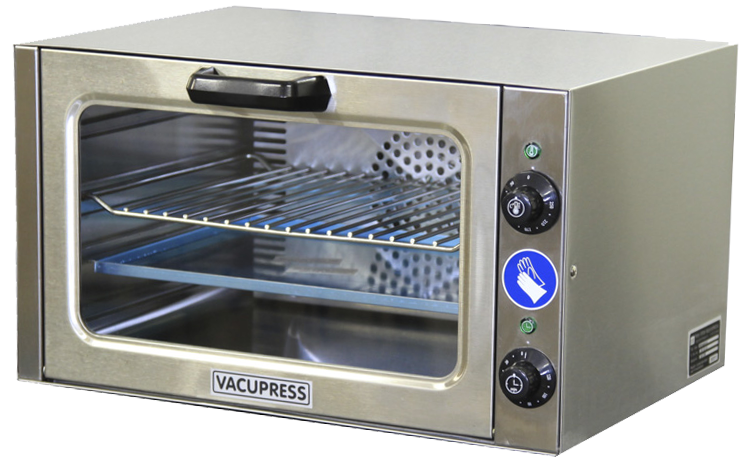

Dimensions WxDxH: 1000x450x1100mm
Version: Single version (vacuum pipe top and on the side)

Heating: 1x 2400W, 1x fan motor, heating active light
Thermostat: infinitely up to 250°C
Timer: infinitely 0 - 120 minutes, On/Off active light
Housing: Stainless steel, inside and outside, door with large viewing window, opens down to the front, double side bouncy supports
Accessories: 1 grill, 1 tray, standard
Power supply: 230V / 50Hz / 2,5 kW
Dimensions: outside: W 527 x D 450 x H 316 mm / inside : W 404 x D 308 x H 254 mm
Weight: 20 kgs

Stainless Steel

Stainless Steel

Stainless Steel

Stainless Steel

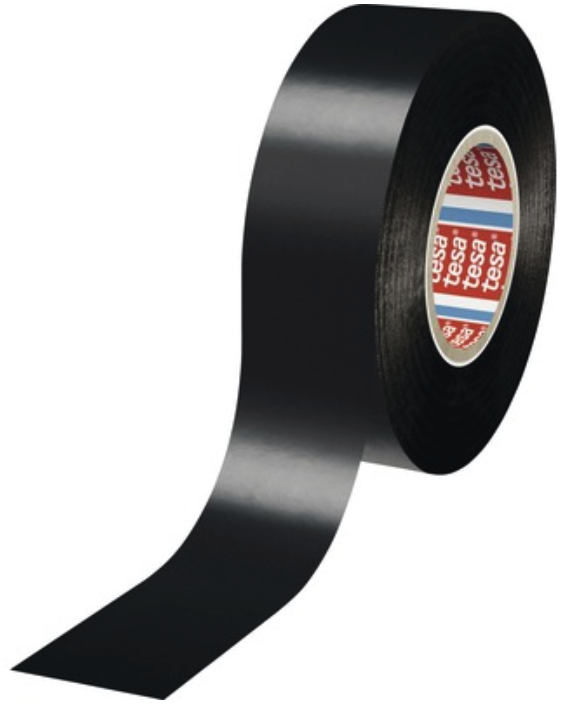

W=19mm / L=33m

Effective sanding height of 450 mm, pneumatic belt tension, light strip on sanding belt, integrated floor extraction, extraction on sanding belt, continuous speed control, incl. 649G60=2175X320 sanding belt
Electrical connection in V/Hz/kW 1x 230/ 50-60 / 2,2
Dimensions WxDxH 712 x 875 x 1.787 mm
Belt width 320 mm
Belt speed 6 - 16 m/s
Exhaust nozzle Ø 125 mm

The Pro-Fit 2000 features a solid steel body for smooth operation, a suction arm with fireproof suction tubing, a suction hood with a quick-change system as well as fastening materials and a safety package. The colour of the tool holder can be individually selected if desired. The standard accent colour is anthracite grey.
Electrical equipment Main safety switch, on/off button for router motor, emergency stop foot switch, 2.5 m power cord with 5x 16 A CEE plug and 5x 16 A CEE socket
Dimensions WxDxH 1,220 x 800 x 1,560 mm
Exhaust nozzle diameter 125 mm
Power cord Power cord with 5x 16 A CEE plug and 5x 16 A CEE socket
Working height 1,000 mm
Space requirements WxD 1,100 x 1,300 mm
Equipment Steel machine body, 5/8" milling shaft thread, adapter from 5/8" to M16 thread, suction hood, short and long shaft protector, exhaust nozzle for external suction system, tool set for changing the socket router cutters, tool holder
RPM milling motor one speed 3,000 rpm
Electrical connection in V/Hz/kW 3 x 400 / 50–60 / 2.2
Colour light grey [RAL 7035]
Accent colour anthracite grey [RAL 7016]
Router shaft length 395 mm
Weight 115  kg
Height adjustment No
Sound intensity level 68 dB[A]
Chip suction Connection to a central chip extraction system with a minimum air velocity of 20 m/s [exhaust nozzle diameter 125 mm]

Stainless Steel

Stainless Steel

Stainless Steel

Stainless Steel

Stainless Steel

Model: 591-900
High-speed post-bed sewing machine with post right of the needle, single needle double-stick, with needle and wheel feed and driven presser foot, curved needle plate Version B = medium
Equipped with electromagnetic thread trimmer 900/81, presser foot lift, automatic start and end lock.
Table base 106 × 50 cm with slanted base, machine tilted forwards, stable, sturdy support frame made of square steel tubing 230 V servomotor and control panel
Dimensions W x D x H: 1060 x 500 x 1300 mm
Max. stitch length: 4,5 mm
Clearance under presser foot: 7 mm
Sewing speed: 3000 Stitch/min.
Needle system: 134 R
Power requirements 230 Volt, 50 Hz., 0,370 kW
Weight 100,000 kg

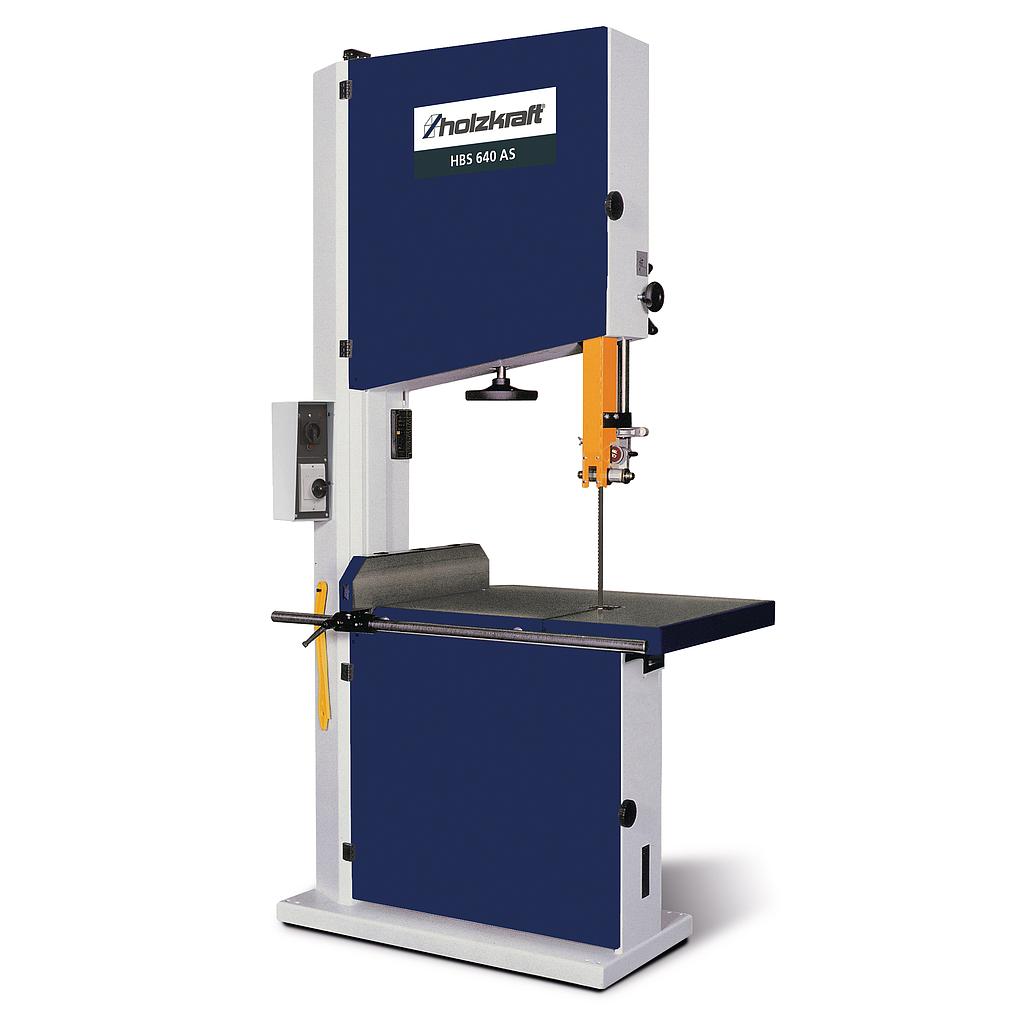

- Heavy design with high dead weight for maximum running smoothness
- Particularly quiet and pretorsionally stiff machine housing
- Cast flywheels with rubber coating and cleaning brush
- 3-roller precision saw band guide as standard at top and bottom
- Large cast iron saw table, swivels from 0° to +15° with ground and polished surface
- Large cast-iron parallel fence with round rod guide, easilyguide, easily movable
- Saw blade tension indicator
- Precise cutting height adjustment overover toothed rack with millimetre scale
- Self-braking motor

also referenced under: HBS 640 AS

Stainless steel housing inside, textured paint RAL 5017 (traffic blue) contrasting color
RAL7035 (light gray) outside, surface heating with 16 infrared quartz tubes,
Temperature measurement of the material surface using an opto-electronic IR measuring head,
Programming steplessly from 30 ° C to 250 ° C via PID controller, 2-line display with
Display of target and actual temperature, quick selection button to call up 4 free
selectable temperature values, double wing door with two double glass viewing windows,
Interior lighting 4x25W, 1 insert plate with Teflon coating,
Electrical connection: 400V / 50-60Hz / 3Ph. / 7.4 kW (CEE 16 Amp.)
Dimensions: outside WxDxH: 900x1300x890 mm
Inside WxDxH: 810x1160x540 mm
Net weight: approx. 230 kg

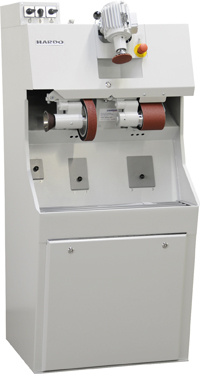

With integrated extraction system and pumice motor.
Heel front cone with bayonet lock, front cone Ø 90mm.
One sanding belt 40 mm, contact wheel Ø 175 mm,
belt length 1650 mm, one sanding belt 100 mm,
contact wheel Ø 100 mm, belt length 1480 mm,
suction wall diagonally recessed (orthopaedics version),
extraction capacity 1300 cubic meter /h.
Coarse and fine dust boxes removable from the front.

Dimensions WxDxH: 720 x 780 x 1550 mm
Power requirements: 400 V / 50 Hz / 2,1 kW

with cam switch and thermo-protected drive motors,
2 m power cord with CEE plug

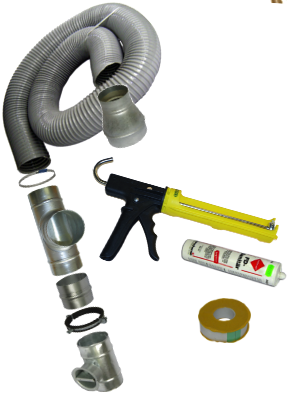

Including; 10m aspirator flexible hose, 1x reduction, 20x clamp, 3x T-connector, 5x straight connector, 9x wall clamp, 3x butterfly valve, 1x silicone sealant cartridge, 1x silicone gun, 1x rubber tape

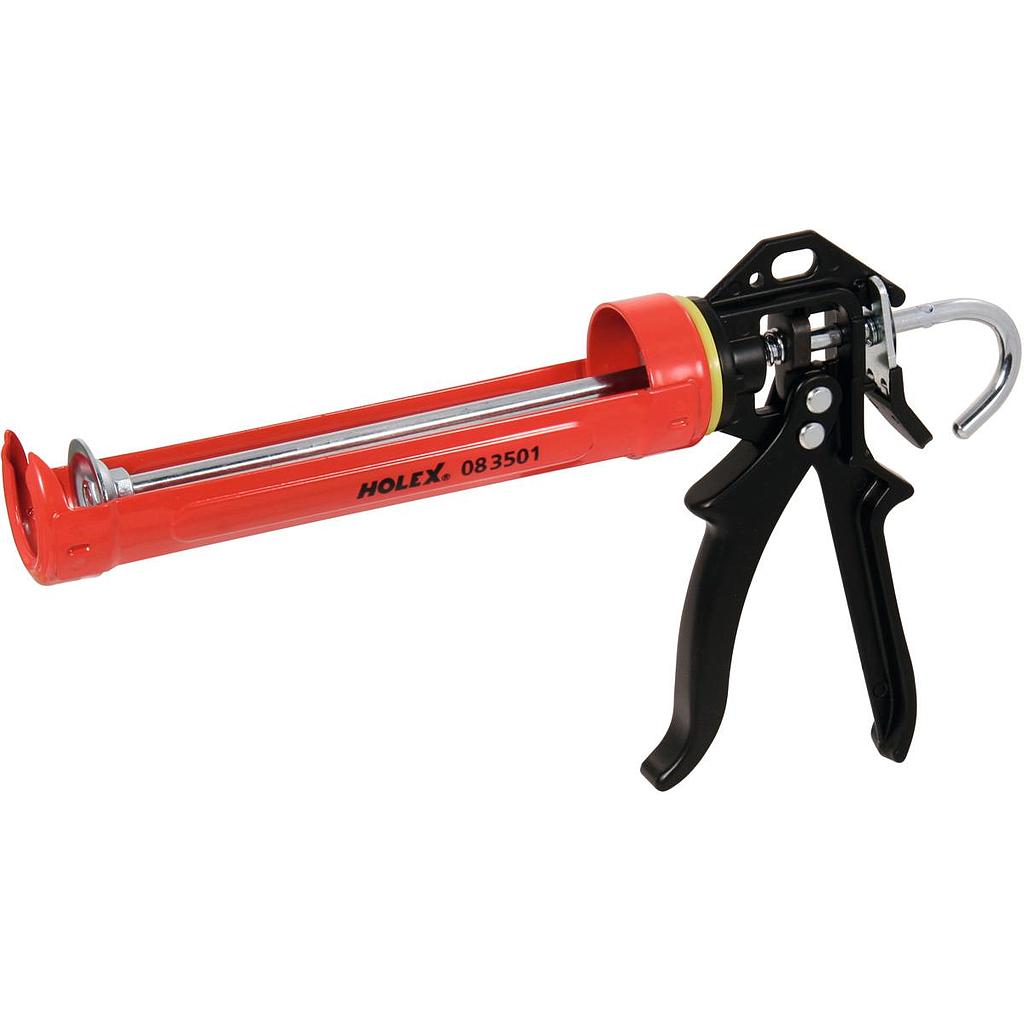

Robust design with reinforced reduction, progressive advance and patented Dripless function (prevents the gun from sinking by decompression). For 290 and 310ml cartridges

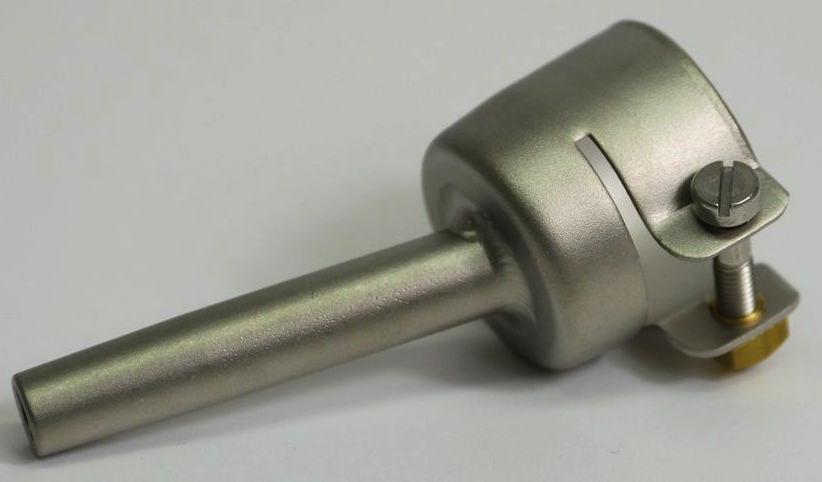

for LEISTER TRIAC

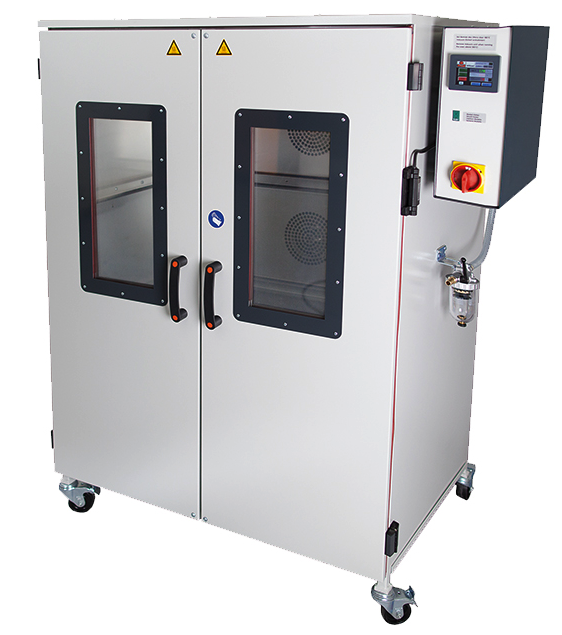

Type: PO1200 - Convection Oven for the O&P field
Special unit, otimized for Pre-Preg processingt
Footprint: ~ 1,2 m²
Dimensions: Outisde: W 1230mm - D 920mm - H 1570mm
Inside: W 1000mm - D 620mm - H 1200mm
Housing: Moveable on 4 casters with stop, double doors with double-pane viewing
window
Three zone heating cabinet segmentation by intermediate shelf
Electr. Connection: 400V / 50Hz / 3 Phase / (16 Amp. CEE) / total capacity 10,2 kW
other voltages on request
Heating: 3x 3300W, 3x fan motor with reversing rotation diretion
Temperature sensor: either by oven or mould/material temperature
Temperature control: Microprocessor controlled, User interface with touch-panel, PID-controller
feature, Temperature infinitely adjustable 30°C to 250°C, Temperature unit
adjustable °C/°F , Timer- and Ramp-feature individually programable, graphic
trend indicator, multi-lingual user interface (DE,EN,FR,IT)
Illumination: 2 x 25 watts
Colour: Inside stainless steel, outside structural effect paint RAL 7035 light grey,
other RAL colours available on request (surcharge)
Weight: net: 283 kgs
gross: 418 kgs (incl. crate)
Accessories: • Universal-crate for Blister-Forming frame
(width adjustable) (Art. No. 07-131)
• Blister-Forming frame D=360mm (Art. No. 07-132)
• Baumeister Pre-Preg Set for PO ovens

also referenced under: OOMAOWELHJ02, 107.144

4 vacuum forming workstations with connection to a vacuum system, e.g. 755E80=* Mobile vacuum pump with tank, tank integrated in the frame, water trap, 1x shelf with grate, 1x replaceable HPME shelf for cutting and gluing, vacuum pipe holder tilts 90°, foot pedals to control the vacuum, vacuum pipes, recommended vacuum forming output 10m³ per workstation
2500x750x750mm

Ø360mm

1/4"

PFAFF

PFAFF

PFAFF

PFAFF

PFAFF

All technical data is based on an operating pressure of 6.3 bar and the indiqué inside pipe shown.

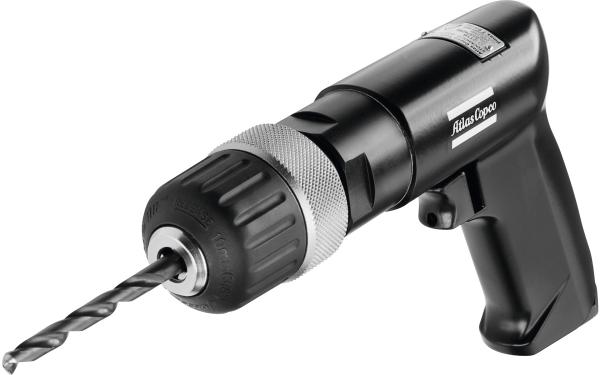

A range of powerful and very quiet revolver-type drills with a maximum drilling power of 13 mm in steel. Air exhaust through the handle prevents swirling of chips. With quick-release chuck.
Discharge power: 350W
Maximum rotation speed: 0 min-1 - 2400 min-1
Quick clamping chuck clamping range: 1.5mm - 10mm
Maximum quantity of absorbed air: 600 l / min
Threaded connection: BSP
Pneumatic connection: 1/4 inch
Recommended hose size (⌀ int.): 10 mm
Weight: 1 kg
Sound level: 82 dB (A)
Maximum vibrations according to EN: <2 m / s2
Length: 211 mm

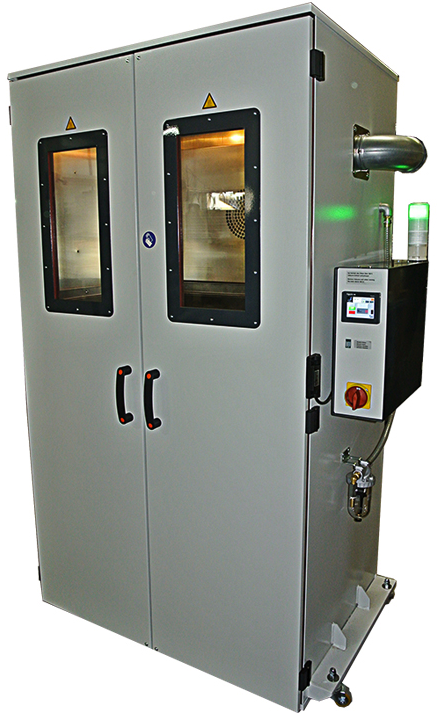

Type: PO1800 - Convection Oven for the O&P field
Special unit, otimized for Pre-Preg processingt
Footprint: ~ 1,2 m²
Dimensions: Outisde: W 1230mm - D 920mm - H 1950mm
Inside: W 1000mm - D 620mm - H 1790mm
Housing: Moveable on 4 casters with stop, double doors with double-pane viewing
window
Three zone heating cabinet segmentation by intermediate shelf
Electr. Connection: 400V / 50Hz / 3 Phase / (16 Amp. CEE) / total capacity 10,2 kW
other voltages on request
Heating: 3x 3300W, 3x fan motor with reversing rotation diretion
Temperature sensor: either by oven or mould/material temperature
Temperature control: Microprocessor controlled, User interface with touch-panel, PID-controller
feature, Temperature infinitely adjustable 30°C to 250°C, Temperature unit
adjustable °C/°F , Timer- and Ramp-feature individually programable, graphic
trend indicator, multi-lingual user interface (DE,EN,FR,IT)
Illumination: 2 x 25 watts
Colour: Inside stainless steel, outside structural effect paint RAL 7035 light-grey,
other RAL colours available on request (surcharge)
Weight: net: 395 kgs
gross: 550 kgs (incl. crate)
Accessories: • Universal-crate for Blister-Forming frame
(width adjustable) (Art. No. 07-131)
• Blister-Forming frame D=360mm (Art. No. 07-132)
• Baumeister Pre-Preg Set for PO ovens

Stainless Steel

Stainless Steel

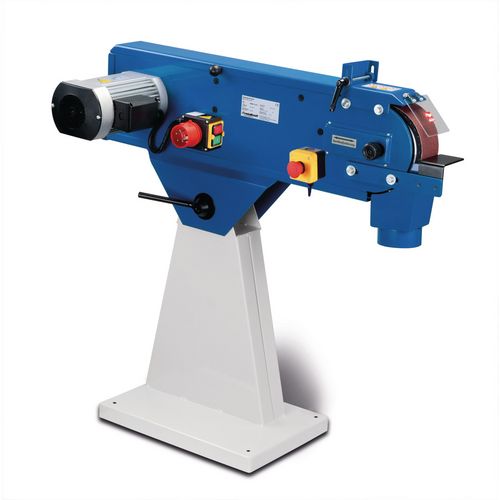

Length approx: 1070 mm
Width/depth approx: 340 mm
Height approx: 950 mm
Weight approx: 72 kg
Supply voltage: 230 V
Mains frequency: 50 Hz
Extraction duct nominal width outside: 2 x 100 mm
Emissions sound pressure level at workstation Lp (idling without extraction unit): 87 dB(A)
Max. sanding width: 75 mm
Sanding belt length: 2000 mm
Sanding belt width: 75 mm
Circumferential belt speed(s): 29 m/s
Contact wheel diameter: 200 mm

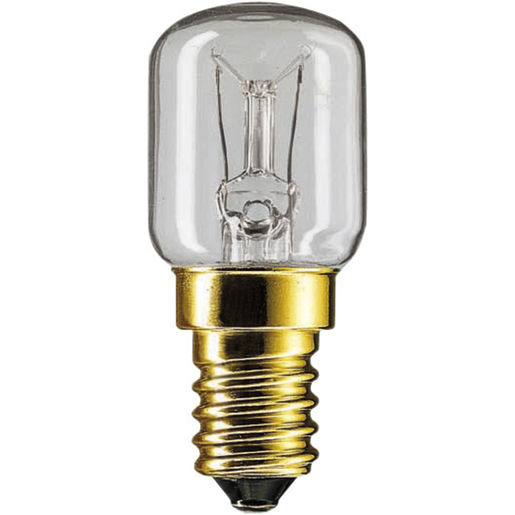

E14 / 25W / 300°C / 230V

also referenced under: OOMAOVENCR50BC, CRM 34

1280x650x(h)1250mm
2x 1500W / 220V

Stainless Steel

Stainless Steel

Stainless Steel

Stainless Steel

Stainless Steel

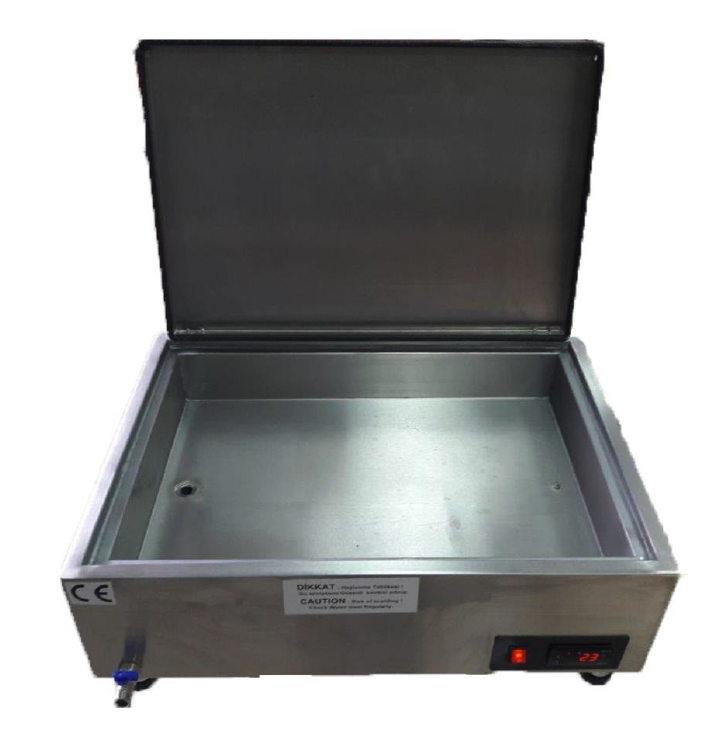

- for heating thermoplastics (low temperature PE)
- good insulation of the device ensures rapid heating of the water
- with a cover
- dimensions 600 x 400 x 200 mm, 15 liters
- 230V
