"HOLZSTAR" band saw, for wood, plastic and metal
- Heavy design with high dead weight for maximum running smoothness
- Particularly quiet and pretorsionally stiff machine housing
- Cast flywheels with rubber coating and cleaning brush
- 3-roller precision saw band guide as standard at top and bottom
- Large cast iron saw table, swivels from 0° to +15° with ground and polished surface
- Large cast-iron parallel fence with round rod guide, easilyguide, easily movable
- Saw blade tension indicator
- Precise cutting height adjustment overover toothed rack with millimetre scale
- Self-braking motor

also referenced under: HBS 640 AS
Register to see prices 0.0 USD
"OPTIMILL" drilling and milling machine BF 16Vario
Versatile application possibilities
Two-stage gear ratio
Tool holder MK 2
Safety electronics in 24 Volt version
EMC filter class C1
Drilling and milling head can be tilted by ± 90 ° on both sides, thus drilling and milling in angular position as required
Height-adjustable and large-dimensioned protective screen with microswitch
Accurate delivery through positionable scale rings on all handwheels
Simple and clear operating unit with on-off switch, potentiometer and emergency stop impact switch
Infinitely variable speed from 100 to 3,000 min-1
High concentricity measured by tapered roller bearing better than 0.015 mm in quill
Stable column with dovetail guide via wedge bars adjustable on all 3 axes
Game in the feed spindle adjustable and adjustable
Column laterally displaceable for extended application
Massive cross table with T-slots and coolant channel as well as adjustable end stops
Integrated longitudinal scale in the cross table
All travel paths can be read on scales
Clean milling pattern by individually clamped guides
Inexpensive and stable in value

also referenced under: OPTImill BF 16Vario
Register to see prices 0.0 USD
"HOLZSTAR" band saw HBS 361-2, for plastic and metal
- Ideal for ambitious modellers and do-it-yourselfers
- Flywheels made of die-cast aluminum with special coating
- Aluminium cast iron worktable swiveling up to 45°
- Equipped with precise 3-rolls saw band guide above and below the table
- Aluminum longitudinal stop with quick clamping precisely adjustable with the aid of a magnifying glass and millimeter scale
- Two belt speeds adjustable

also referenced under: HBS 361-2, EMACBSAWBS
Register to see prices 0.0 USD

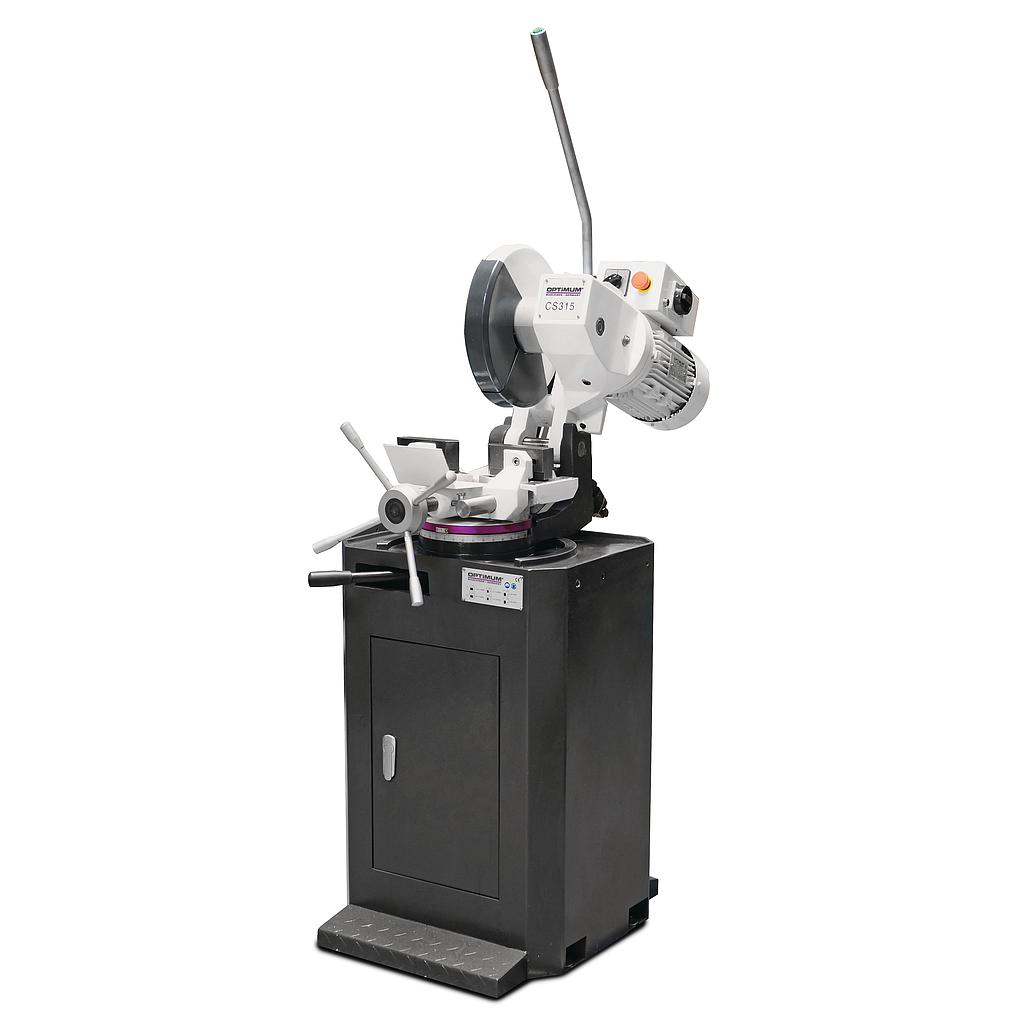

Metal cutting disc saw
Swivel range of ± 45 °
Easy-to-read angle scale enables precise work
Seconds adjustment of the miter
Protected vise spindle
Massive machine base on both sides with holes for the mounting of the material stand MSR
Long handle allows sawing without great effort with integrated push-button (on / off)
Automatic switching on of the coolant pump when sawing
Functional protection device, closed construction, movable
Fast opening mechanism for optimum safety when cutting
Centrally exciting vise, 4-fold guided with individually adjustable clamping jaws. Cutting always takes place in optimal position to the workpiece
Massive machine base
Protected vise spindle
Machine base sizes:
- CS 275 - 460 x 515 x 775 mm and
- CS 315 - 546 x 620 x 801 mm
The saw is delivered without circular saw blade (saw blade division freely selectable)

also referenced under: OPTIsaw CS 275, CRM 115
Register to see prices 0.0 USD
Metal cutting band saw
- Ideal for sawing steel, aluminum, copper, PVC and Teflon
- Stepless, electronic speed control from 30 - 80 m / min
- Particularly quiet - up to 60% quieter than comparable band saws
- Low vibration and wear thanks to special gearbox with two large gears made of hardened steel
- Guaranteed cutting accuracy of max. 0.3 mm course over 100 mm cutting length
- Each machine individually tested for precision in Italy
- Low-speed DC drive motor with carbon brushes for up to 10 times longer life
- Electronic temperature and ampere recording monitoring against overload
- Cast strip wheels with ground running surface without rubber pads, therefore suitable for dry and wet cutting
- Massive saw bar made of die-cast aluminum (readjustable from MBS 125) and with sturdy transport lock
- Two movable, adjustable saw band guides with chip scraper made of metal
- Particularly stable base plate with non-slip feet
- Very service-friendly, as components are easily accessible

also referenced under: MBS 105, CRM 116
Register to see prices 0.0 USD

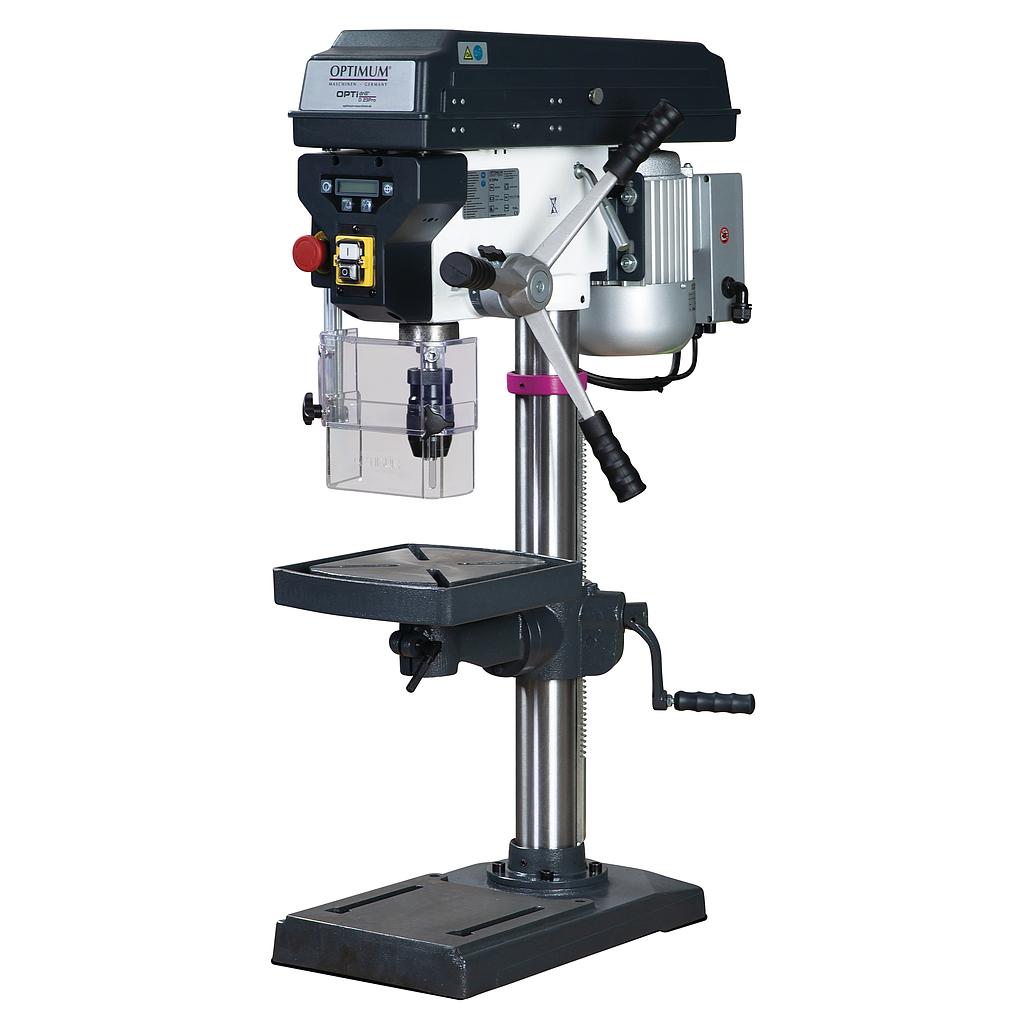

Drilling machine, workbench type
- Industrial engine
- Easy to use safety switch according to IP 54
- Digital drilling depth and speed indicator integrated in the housing
- Separate emergency stop impact switch
- Precision Spindle bore
- Safety electronics in 24 V DC
- Guaranteed concentricity measured less than 0.02 mm in the drill quill
- Drill spindle with precision ball bearings
- High quality keyless chuck
- Depth stop
- Precision machined, stable drill table with diagonal T-slots and circumferential cooling water channel
- V-belt cover with safety switch
- One piece cast aluminum die-cast quill lever with softgrip handles
- Large, height-adjustable protective screen with safety switch
- Heavy version of the entire machine

also referenced under:: OPTIdrill D 23Pro (230 V), EMACDRILC150, CRM 158
Register to see prices 0.0 USD
Column Drilling machine
Column diameter: 80 mm
Length approx: 715 mm
Width/depth approx: 360 mm
Height approx: 1640 mm
Weight approx: 85 kg
Drilling performance steel (S235JR): 25 mm
Continuous drilling performance steel (S235JR): 20 mm
Workspace length: 320 mm
Workspace width: 290 mm
T-groove type: diagonal
T-groove size: 14 mm
Rotation: 360 °
Angle: ± 45 °
Max. distance spindle - drilling table: 720 mm
Supply voltage: 400 V
Mains frequency: 50 Hz
Max. distance spindle - machine base: 1230 mm
Work area length: 385 mm
Work area width: 260 mm
Spindle motor drive output: 0.75 kW
Speed range: 200 - 2440 min¯¹
Number of gears: 12 Stages
Speed control: manually
Quill stroke: 85 mm
Spindle chuck: MT 3
Reach: 210 mm
Register to see prices 0.0 USD
