including Rollabout Tray with integrated Blister Forming frame cradle
Heating with 24 Infrared-Quartz-Tubes, Dual-Zone switching (6/24), Temp.
measurement of the Material surface by opto-electr. IR-sensor, infinitely adjustable
from 30°C to 250°C by SPS controller with PID feature, Software build 3.0 with
maintenance info, programmable Ramp- and Timer-feature with an option to store
slowly raising heat processes, monitoring of the heating process by graphical trend,
tefloncoated (replaceable) Rollabout Tray, 4 casters with stop, height adjustable by
gas-shock (min. 820mm, max. 1050 mm), integrated Blister forming cradle, width
adjustable, retractable when not in use, vertical Frontdoor with double pane Window,
double gas-shock supported, Illum. by two 25W bulbs, colour: colour: RAL7035
(light-grey) / RAL7031 (blue-grey), net weight 360kg
Electr. Conn.: 380-400V / 50-60Hz / 3Ph+N+PE. / 11,1 kW (3 x 32A CEE)
Dim..: outside WxDxH: 1595x1770x1400 mm
inside WxDxH : 1300x1590x500 mm

Dimensions WxDxH: 1390 x 980 x 850 mm
Power requirements: 220V / 50 Hz / 9,9 kW
Temperature range: 50 °C - 200 °C
Working surface W x D: 1250 x 1050 x 860mm

With pneumatic door
Temperature: 60° to 250°
50-60Hz, 850W
Dimensions outside: 1640x1134x1756mm
Working area: 1828x1828mm

Heating: 1x 2400W, 1x fan motor, heating active light
Thermostat: infinitely up to 250°C
Timer: infinitely 0 - 120 minutes, On/Off active light
Housing: Stainless steel, inside and outside, door with large viewing window, opens down to the front, double side bouncy supports
Accessories: 1 grill, 1 tray, standard
Power supply: 230V / 50Hz / 2,5 kW
Dimensions: outside: W 527 x D 450 x H 316 mm / inside : W 404 x D 308 x H 254 mm
Weight: 20 kgs

Stainless steel housing inside, textured paint RAL 5017 (traffic blue) contrasting color
RAL7035 (light gray) outside, surface heating with 16 infrared quartz tubes,
Temperature measurement of the material surface using an opto-electronic IR measuring head,
Programming steplessly from 30 ° C to 250 ° C via PID controller, 2-line display with
Display of target and actual temperature, quick selection button to call up 4 free
selectable temperature values, double wing door with two double glass viewing windows,
Interior lighting 4x25W, 1 insert plate with Teflon coating,
Electrical connection: 400V / 50-60Hz / 3Ph. / 7.4 kW (CEE 16 Amp.)
Dimensions: outside WxDxH: 900x1300x890 mm
Inside WxDxH: 810x1160x540 mm
Net weight: approx. 230 kg

Type: PO1200 - Convection Oven for the O&P field
Special unit, otimized for Pre-Preg processingt
Footprint: ~ 1,2 m²
Dimensions: Outisde: W 1230mm - D 920mm - H 1570mm
Inside: W 1000mm - D 620mm - H 1200mm
Housing: Moveable on 4 casters with stop, double doors with double-pane viewing
window
Three zone heating cabinet segmentation by intermediate shelf
Electr. Connection: 400V / 50Hz / 3 Phase / (16 Amp. CEE) / total capacity 10,2 kW
other voltages on request
Heating: 3x 3300W, 3x fan motor with reversing rotation diretion
Temperature sensor: either by oven or mould/material temperature
Temperature control: Microprocessor controlled, User interface with touch-panel, PID-controller
feature, Temperature infinitely adjustable 30°C to 250°C, Temperature unit
adjustable °C/°F , Timer- and Ramp-feature individually programable, graphic
trend indicator, multi-lingual user interface (DE,EN,FR,IT)
Illumination: 2 x 25 watts
Colour: Inside stainless steel, outside structural effect paint RAL 7035 light grey,
other RAL colours available on request (surcharge)
Weight: net: 283 kgs
gross: 418 kgs (incl. crate)
Accessories: • Universal-crate for Blister-Forming frame
(width adjustable) (Art. No. 07-131)
• Blister-Forming frame D=360mm (Art. No. 07-132)
• Baumeister Pre-Preg Set for PO ovens

Type: PO1800 - Convection Oven for the O&P field
Special unit, otimized for Pre-Preg processingt
Footprint: ~ 1,2 m²
Dimensions: Outisde: W 1230mm - D 920mm - H 1950mm
Inside: W 1000mm - D 620mm - H 1790mm
Housing: Moveable on 4 casters with stop, double doors with double-pane viewing
window
Three zone heating cabinet segmentation by intermediate shelf
Electr. Connection: 400V / 50Hz / 3 Phase / (16 Amp. CEE) / total capacity 10,2 kW
other voltages on request
Heating: 3x 3300W, 3x fan motor with reversing rotation diretion
Temperature sensor: either by oven or mould/material temperature
Temperature control: Microprocessor controlled, User interface with touch-panel, PID-controller
feature, Temperature infinitely adjustable 30°C to 250°C, Temperature unit
adjustable °C/°F , Timer- and Ramp-feature individually programable, graphic
trend indicator, multi-lingual user interface (DE,EN,FR,IT)
Illumination: 2 x 25 watts
Colour: Inside stainless steel, outside structural effect paint RAL 7035 light-grey,
other RAL colours available on request (surcharge)
Weight: net: 395 kgs
gross: 550 kgs (incl. crate)
Accessories: • Universal-crate for Blister-Forming frame
(width adjustable) (Art. No. 07-131)
• Blister-Forming frame D=360mm (Art. No. 07-132)
• Baumeister Pre-Preg Set for PO ovens

With roll-about tray, 220V-380V / 20kW / 50Hz, working height: 1800x1600x400mm
External dimensions: 2000x1700x500mm

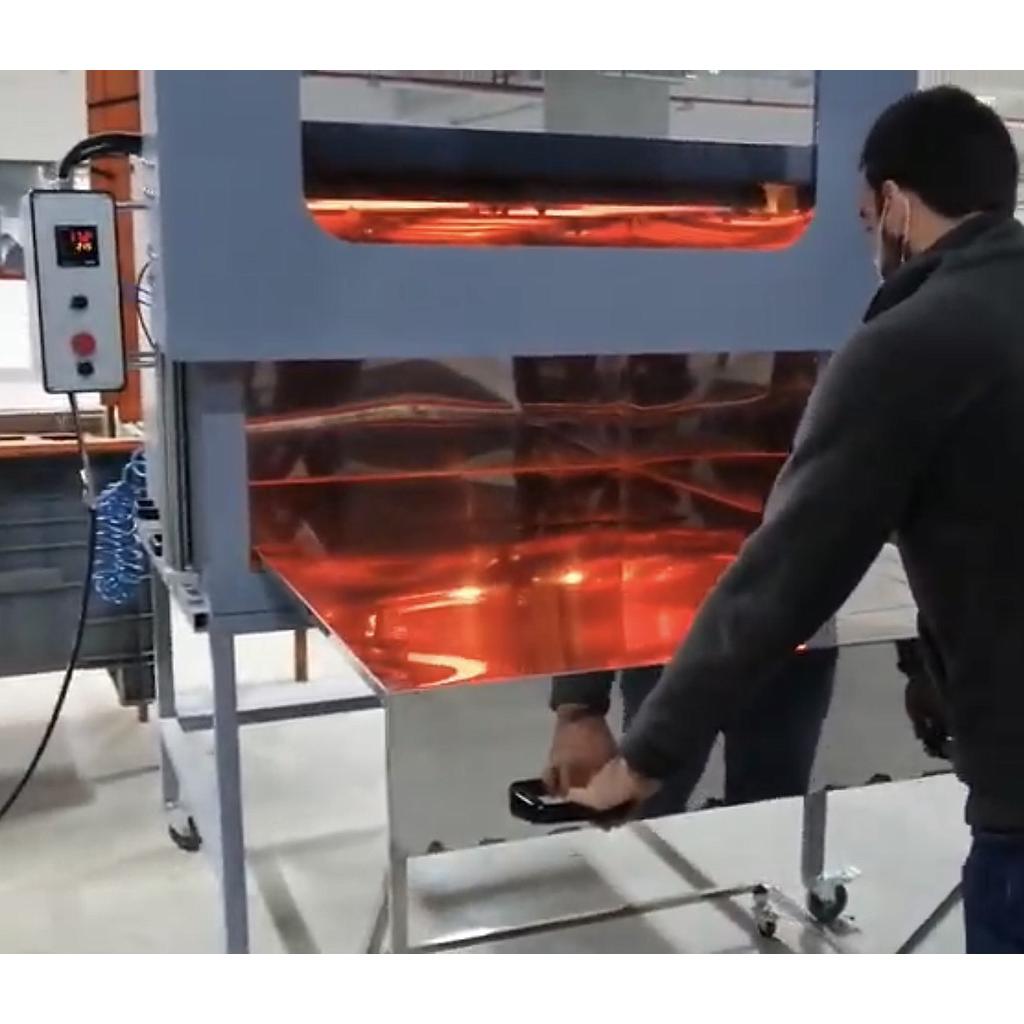

Uniformly heats thermoplastic sheet materials commonly used to form prosthetic and orthotic devices. Infinitely adjustable temperature. Heating surfaces are coated with air permeable Teflon sheeting.Two gas cylinders assist in lifting the cover and hold it open at a 45° angle.

Dimension : Out Side: W.125—D.110—H.90 cm
Dimension : Top cover Open: W.125—D.110—H.180 cm
Dimension : Heater Area: W.100—D.85 cm
Power Supply: 220 Volt 50 Hz
Power cord: With CEE plug 5 × 16 A and CEE socket 5 × 16
Heating Pipe: Type 12 pcs / 550 x 12 : 6.600 Watt
Temparature Control: Digital Control 250 °C Max. J Type
Process Completed: Sound and red warning lamp
Upper and Lower Surface: Teflon 0.25 mm
Color: Ral 7035 & 7045
Weight Net: 152 Kg
Boxed : Dimension and Total Weight: W.140 -D.120- H.120 cm 225 kg

Dimensions WxDxH: 1390 x 980 x 850 mm
Power requirements: 380V / 50 Hz / 9,9 kW
Temperature range: 50 °C - 200 °C
Working surface W x D: 1250 x 1050 x 860mm

including Rollabout Tray with integrated Blister Forming frame cradle
Heating with 18 Infraredt-Quartz-Tubes, Dual-Zone switching (6/18), Temp.
measurement of the Material surface by opto-electr. IR-sensor, infinitely adjustable
from 30 C to 250 C by SPS controller with PID feature, Software build 3.x with
maintenance info, programmable Ramp- and Timer-feature with an option to store
slowly raising heat processes, monitoring of the heating process by graphical trend,
tefloncoated (replaceable) Rollabout Tray, 4 casters with stop, height adjustable by
gas-shock (min. 820mm, max. 1050 mm), integrated Blister forming cradle, width
adjustable, retractable when not in use, vertical Frontdoor with double pane Window,
double gas-shock supported, Illum. by two 25W bulbs, integrated Pre-Preg hose duct
at the left side,
colour: RAL7035 (light-grey) / RAL7031 (blue-grey), net weight 290kg
Electr. Conn.: 380-400V / 50-60Hz / 3Ph. / 8,5kW (CEE 3x 16Amp.)
Dim.: outside HxWxD: 1400x1595x1270 mm
inside HxWxD : 500x1300x1090 mm

including Rollabout Tray with integrated Blister Forming frame cradle
Heating with 12 Infraredt-Quartz-Tubes, Temp. measurement of the Material surface by
opto-electr. IR-sensor, infinitely adjustable from 30 C to 250 C by SPS controller with
PID feature, Software build 3.x with maintenance info, programmable Ramp- and
Timer-feature with an option to store slowly raising heat processes, monitoring of the
heating process by graphical trend, tefloncoated (replaceable) Rollabout Tray, 4
casters with stop, height adjustable by gas-shock (min. 820mm, max. 1050 mm),
integrated Blister forming cradle, width adjustable, retractable when not in use, vert.
Frontdoor with double pane Window, double gas-shock supported, Illum. by two 25W bulbs,
colour: RAL7035 (light-grey), net weight 230kgs
Electr. Conn.: 400V / 50-60Hz / 3Ph. / 5,9 kW (CEE 3x 16Amp.)
Dim.: outside HxWxD: 1420x1320x970 mm
inside HxWxD : 500x1000x800 mm

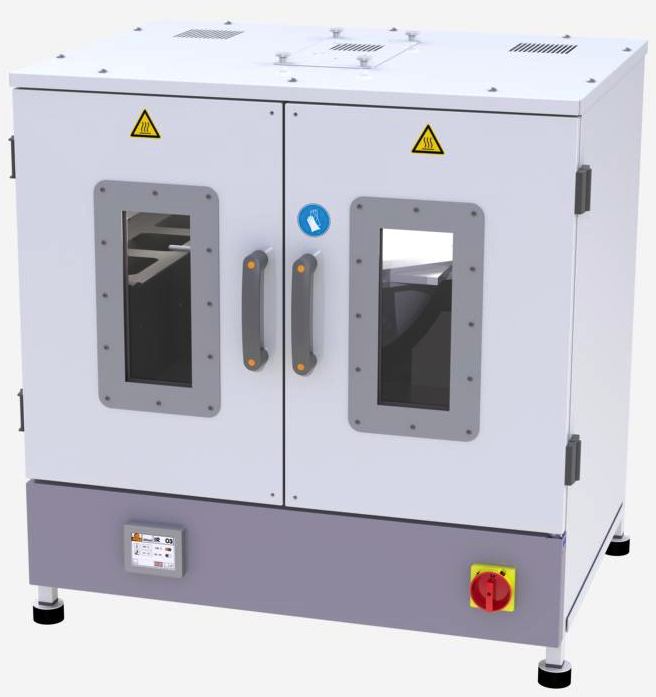

Stainless steel housing inside, spray paint outside, Heating with 8
Infrared-Quartz-Tubes, Temperature measurement of the Material surface by
opto-electr. IR-sensor, infinitely adjustable from 30 C to 250 C by SPS controller with
PID feature, Software build 3.0 with maintenance info, programmable Ramp- and
Timer-feature with an option to store slowly raising heat processes, monitoring of the
heating process by graphical trend, Double-Frontdoor with double pane Window, 2x
25W Illum. bulb, 1x tray with teflon
colour: RAL7035 (light-grey) / RAL 7031 (blue-grey)
Electr. Conn.: 380-400V / 50-60Hz / 3Ph. / 3,7 kW (16 Amp. CEE)
Dim.: outside: WxDxH: 900x700x920 mm
inside: WxDxH : 810x580x540 mm
net weight: 133 kgs

Suitable for deep-drawing technology with outer rings and to dry plaster models, with 2 ventilators for uniform warming of plastic sheets, with steel support frame and a storage shelf for plastic sheets, with viewing window and space-saving opening mechanism, with interior illumination and electronic heat regulation. Complete heating cabinet, inside and outside made of stainless steel with an alu sliding shelf, covered in Teflon foils blanks, on ball-bearing mounted rollers.
Delivered with spare parts for 2 years

Technical data:
Exterior dimensions W x D x H: 1450 x 1480 x 1500mm
Interior dimensions W x D x H: 1200 x 1270 x 500mm
Working surface W x D: 1100 x 1030mm
Temperature range: 30° C - 200°C
Power requirements: 400 V / 50 Hz / 4,5 kW
Weight: 280kg

also referenced under: OOMAOVENCR50G, CR5000G

The new IR1001 COMPACT is of course equipped with the innovative optical temperature sensor and a con- troller of the next generation. Same as the larger Infrared-ovens the two-line PID-Controller keeps the user constantly updated of the preset and actual temperature values. The preselect feature allows the user to store four temperature settings which can be easily called up by use of a single button. A signal light informs the user when the set temperature is reached, even if he is not standing right in front of the control panel.

Technical Data: IR1001 COMPACT
Type: IR1001 COMPACT - Infrared Oven for the O&P field, Bench-top design
Footprint: approx. 1m²
Dimensions: Outside: W 1270 mm - D 920 mm - H 455 mm / Inside: W 1000 mm - D 800 mm - H 140 mm
Tray: tray movable full size on ball bearing guides, easy to remove without tools for fast teflon replacement, effective heating area: W 950 x D 750 mm
Power supply: 400V / 50/60Hz / 3 Phase / (16 Amp. CEE) / total capacity 7,7 kW, (other voltages available)
Heating: 12 Infrared-Quartz-tubes with reflector, Stand-by switch
Temperature control: opto-electronic IR-measuring unit, Measuring of the material´s surface temperature!
Temperature control: PID-Controller, infinitely variable from 30°C to 250°C
