Pressurized air system

  • Oven, Heating plate
  • Drilling, Milling, Sawing
  • Abrasive
  • Vacuum technology
  • Injection technology
  • Pressurized air system
  • Spare parts for machinery
  • Electric hand machine
Spray gun
Technical characteristics:
Type: SP11
Max. working pressure: 24 bar
Maximum operating temperature: 50°C
Air flow: 25 l/min
Flow at 5 bar: 25 l/min

Execution:
Spray gun with straight tube and plastic container, matt red, capacity 1 l.
Register to see prices 0.0 USD
Safety hose reel, plastic casing Compressed air
Body width: 490 mm
Body depth: 190 mm
Body height: 409 mm
Material of the housing: Plastic
Colour of housing: blue
Connection outlet: 1/4 in
maximum operating pressure: 16 bar
Hose external ⌀: 12 mm
Hose internal ⌀: 8 mm
Material of hose: Polyurethane
Colour of hose: blue
SCS automatic roll-up drum: yes
Register to see prices 0.0 USD

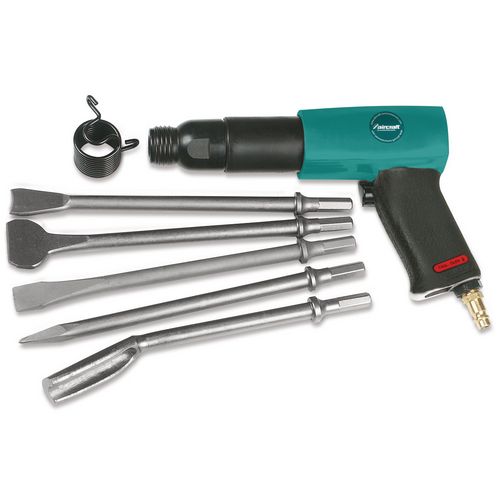

Chipping hammer with compressed air
Delivered with: 5 chisels, 1 spare spring
Air requirement average, approx: 240 l/min
Working pressure: 6.3 bar
Chuck: 10 mm
Stroke count: 2200 min¯¹
Impact strength: 9.5 J
Register to see prices 0.0 USD
Pneumatic hand drill, Atlas Copco D2116Q
All technical data is based on an operating pressure of 6.3 bar and the indiqué inside pipe shown.
A range of powerful and very quiet revolver-type drills with a maximum drilling power of 13 mm in steel. Air exhaust through the handle prevents swirling of chips. With quick-release chuck.
Discharge power: 350W
Maximum rotation speed: 0 min-1 - 2400 min-1
Quick clamping chuck clamping range: 1.5mm - 10mm
Maximum quantity of absorbed air: 600 l / min
Threaded connection: BSP
Pneumatic connection: 1/4 inch
Recommended hose size (⌀ int.): 10 mm
Weight: 1 kg
Sound level: 82 dB (A)
Maximum vibrations according to EN: <2 m / s2
Length: 211 mm
Register to see prices 0.0 USD
Register to see prices 0.0 USD
Register to see prices 0.0 USD
Register to see prices 0.0 USD
Register to see prices 0.0 USD
Register to see prices 0.0 USD
Register to see prices 0.0 USD
1/4 "air handling unit
with gauge and support type T
Adjustable pressure 0-8.5 bar
Max. Flow 1'134 l / min
Plastic bowl, manual drain
Register to see prices 0.0 USD
Spiral PU hose, blue - 1/4"
long. total 5m - long. work 4m
With rotating unions with bearing
at both ends, external thread. G 1/4 "
With metal crease protection
Register to see prices 0.0 USD
Automatic screw compressor, 1000l
Effective delivery volume approx: 1000 l/min
Maximum Pressure: 10 bar
Pressure vessel capacity: 500 l
Air outlet: ¾ "
Length approx: 1980 mm
Width/depth approx: 700 mm
Height approx: 1630 mm
Weight approx: 307 kg
Absorbed power electric motor: 7.5 kW
Supply voltage: 400 V
Mains frequency: 50 Hz
Motor type: Electric
Sound pressure level Lp: 68 dB(A)
Register to see prices 0.0 USD
Automatic piston compressor, 100l
- Designed for demanding continuous use when oil-free and clean compressed air is required
- Air is blown through the cooling chambers of the cylinder by means of a fan; thus optimum cooling is achieved
- Large piston, movably mounted, resulting in 60% more power compared to tilt piston systems
- Cylinder running surfaces with high-precision and micro-smooth surface for minimum friction
- The high-performance piston or piston ring made of a graphite-Teflon-carbon special compound has a much longer service life than a simple piston ring made of Teflon
High-quality maximum equipment
- Filter pressure regulator for stepless adjustment of the working pressure, with simultaneous dirt, oil and condensate separation
- One compressed air outlet each for filtered compressed air, filtered and oiled compressed air and a direct outlet on the compressed air tank
- Two comfort safety quick couplings
- High-quality CONDOR pressure switch
- One pressure gauge each for container and working pressure
- Simple condensate drain via ball valve
Compressed air lines and reservoirs with long service life
- Flexible armored hose line with heat protection prevents vibration fractures
- Inside and outside hot-dip galvanized, corrosion-protected compressed air tank with 15-year guarantee against rusting through
Comfort safety quick couplings
- One-hand safety couplings according to DIN EN 983 used as standard by AIRCRAFT as first manufacturer
- Two separate locking systems for maximum working safety
- No whipping of the hose line during uncoupling
Convenient transport
- Transport back-friendly in upright position and without lifting
- Additional transport handle directly on the container
- Puncture-proof PU foam wheels
- Stable steering chassis with parking brake
TÜV-free
- Type-tested by an approved monitoring body
- Recurring container inspections also possible by a competent person
Immediately ready for use
- Fully automatic on-off operation
- With all safety devices
- Completely ready for connection

also referenced under: AIRPROFI 440/100 OF PRO, EMACAIRCO380, CRM 178
Register to see prices 0.0 USD
Automatic piston compressor, 50l
- Designed for demanding continuous use when oil-free and clean compressed air is required
- Air is blown through the cooling chambers of the cylinder by means of a fan; thus optimum cooling is achieved
- Large piston, movably mounted, resulting in 60% more power compared to tilt piston systems
- Cylinder running surfaces with high-precision and micro-smooth surface for minimum friction
- The high-performance piston or piston ring made of a graphite-Teflon-carbon special compound has a much longer service life than a simple piston ring made of Teflon
High-quality maximum equipment
- Filter pressure regulator for stepless adjustment of the working pressure, with simultaneous separation of dirt, oil and condensate
- One compressed air outlet each for filtered compressed air, filtered and oiled compressed air and a direct outlet on the compressed air tank
- Two comfort safety quick couplings
- High-quality CONDOR pressure switch
- One pressure gauge each for tank and working pressure
- Simple condensate drain via ball valve
Compressed air lines and reservoirs with long service life
- Flexible armored hose line with heat protection prevents vibration fractures
- Inside and outside hot-dip galvanized, corrosion-protected compressed air reservoir with 15-year warranty against rusting through
Comfort safety quick couplings
- One-hand safety couplings according to DIN EN 983 used by AIRCRAFT as the first manufacturer in series production
- Two separate locking systems for maximum working safety
- No whipping of the hose line during uncoupling
Convenient transport
- Transport back-friendly in upright position and without lifting
- Additional transport handle directly on the container
- Puncture-proof PU foam wheels
- Stable steering chassis with parking brake
Immediately ready for use
- Fully automatic on-off operation
- With all safety devices
- Completely ready for connection

also referenced under: AIRPROFI 220/50 OF PRO, CRM 178.3
Register to see prices 0.0 USD
Economy piston compressor, 120l
- Units with high-performance oil lubrication system, efficient lubrication with optimum sealing at the same time
- Pressure regulator for continuously variable setting of the desired working pressure
- Compressed air outlet via one single-handed quick-action coupling
- Fully automatic on-off operation via pressure switch
- One pressure gauge each for displaying the tank and working pressure
- Electric motor equipped with protection switch
- Powder coated compressed air tank
- Two plastic wheels at rear

also referenced under: MOBILBOY 261/24 E
Register to see prices 0.0 USD
