T-PLATE foot pressure plate is the most accurate and cost-effective way to identify the plantar pressure profile.
Traditional tools cannot provide the same information as the T-Plate. It will increase your credibility and most of all help you make the good diagnosis.
Deliver with software and manual in English.

Packaged in a blue plastic box with pilot drills
Content :
1 set of HSS hand taps each:
DIN 352 M 3 / 4 / 5 / 6 / 8 / 10 / 12
1 HSS die of each DIN 223:
M3 / 4 / 5 / 6 / 8 / 10 / 12
HSS twist drills, DIN 338 N, ground:
Ø2.5 / 3.3 / 4.2 / 5.0 / 6.8 / 8.5 / 10.2mm
1 die holder DIN 225:
20x5 / 20x7 / 25x9 / 30x11 / 38x14
1 left hand wrench DIN 1814:
Group 1 + 2

also referenced under: OOMAMARPOL3500A, OOMAMARPOL3500C CRM 90, CRM 90.1

with round jaws

335mm

Chrome vanadium steel, through hardened (toughened), surface manganese phosphated.
L-form shaft; ball point can be applied up to an angle of 30°.
Stored in: Plastic clip
1 each L-wrench: Size 1.5; 2; 2.5; 3; 4; 5; 6; 8; 10 mm

1 straight and 1 angled point; nylon handle. Point hardness 48 - 55 HRC.
overall length: 230 mm
Type of product: Steel scriber

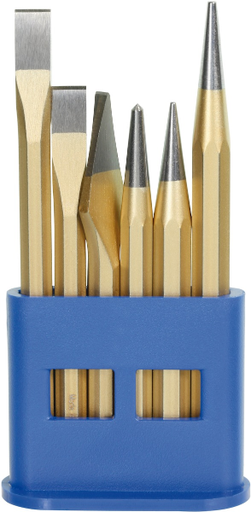

Made of flat-oval steel, hardened and tempered. Blade uniformly through hardened; can be repeatedly reground without re-hardening. Head specially annealed to prevent splintering.

Flat cold chisel: 1 pc. each 125; 150 mm
Cross-cut cold chisel: 1 pc. 125 mm
Taper pin punch: 1 pc. each size 120×2; 150×3 mm
Centre punch: 1 pc. 120×4 mm

N°4, 12mm, 5000pcs

for attaching decorative fabrics, posters, labels, nonwovens, oiled papers and tar papers, PC8000

Width of the jaws: 100mm
Opening of the vice: 100 mm
Height of the jaws: 27 mm
Between axis: 130 mm
Overall dimensions WxDxH: 165x190x57 mm
Weight: 2.7kg

ProfCut handsaws with handy 2-component handle.
GT- toothing (hardened, 3×ground), for dry, hard wood.
TPI: 9
Blade length: 475 mm

Large high-contrast digital display. The measuring faces are precision-lapped.
Digital caliper with absolute scale, no zeroing required. Electronics switch off automatically after approx. 5 minutes. Simply move it to switch on.
Glass scale ensures very high accuracy.
The electronics are decoupled from the casing and incorporated directly in the sliding part. The gauging force is transmitted directly to the measurement jaws. This reduces the liability of the caliper to errors and increases the working life.
With sturdy metal casing.

fixing of round and angular one- and two-way suction tubes and of diverse
plaster model rods possible up to 35 mm
fixing of the prosthetic socket can be done either with the tude adapter or
with the S.A.C.H.-Foot Adapter
horizontal shifting of the upper and lower fixing by 50 mm each is possible
in order to transfer extreme socket positions
firmly integrated, easily readable height scale (900 mm)
high quality, durable materials
stepplessly rotatable by 360° degrees via wing screw
For video of user's manual : https://www.youtube.com/watch?v=hVbUbQwMsiY

Max. Length tripod = 900mm
Min. Length tripod = 200mm

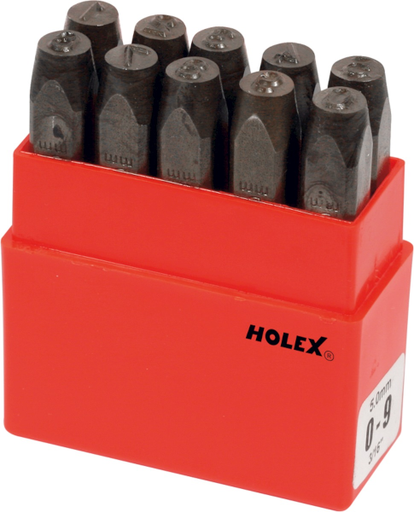

0 − 9, 6 mm

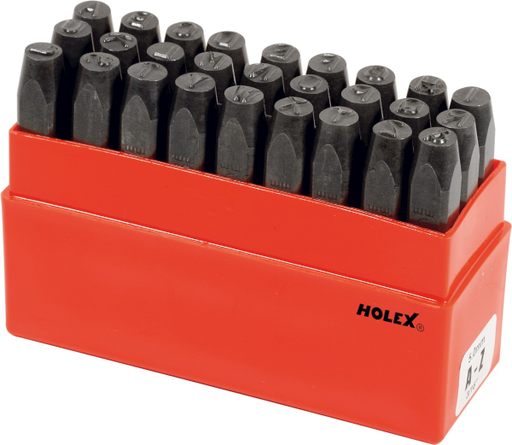

A − Z, & 6 mm

Octagonal body, uncoated head

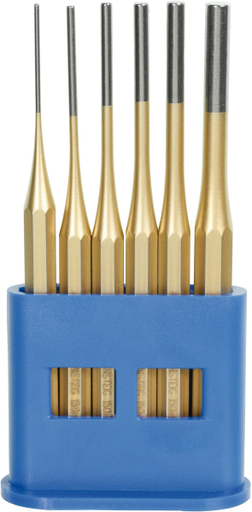

Sturdy octagonal shank with cylindrical shaft. Uniformly through hardened over the entire length. Head specially annealed to prevent splintering. Actual ⌀ 0.05 - 0.5 mm less than nominal ⌀, prevents the pin punch jamming in the hole.
Standard quality of chrome vanadium air hardening steel, painted.
1 each pin punch: 2; 3; 4; 5; 6; 8 mm

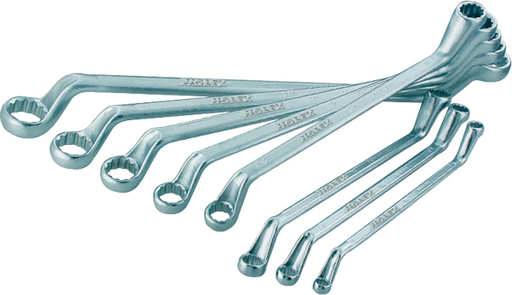

Drop forged. With close tolerance jaw width.
With oval shaft. Chrome vanadium steel, chrome-plated.

made of premium steel, with round, curved and plastic-coated shank, flexible blades, polished

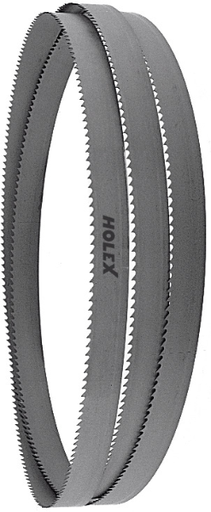

For plastic and metal cutting, 2490 x 6 x 0.65 mm / 14 teeth

Pale Chinese bristle. White plastic binding, unpainted wooden handle.

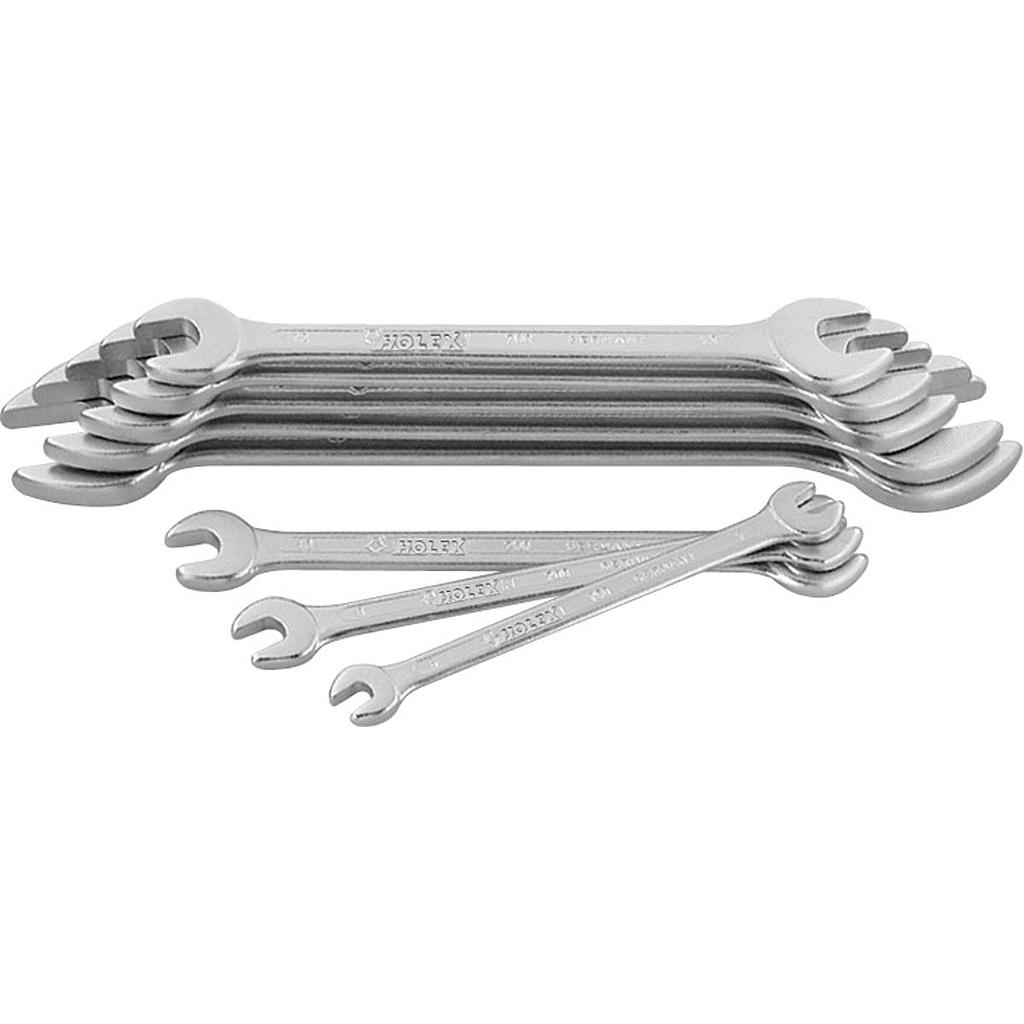

Execution:
Forged. With tight tolerance openings.
With oval body.
Standard:
DIN 3110 / ISO 3318.
Material (s):
Chrome vanadium steel, chrome plated.
Delivery:
1 open-end wrench each: Ref. 6 × 7; 8 × 9; 10 × 11; 12 × 13; 14 × 15; 16 × 17; 18 × 19; 20 × 22; 21 × 23; 24 × 26; 27 × 32; 30 × 34

foot impression tool for foot / blue print analysis
imprinting tool for early detection of foot pressure problems, such as for example flat-, splay-, hollow- or club feet, usable for diabetic or rheumatic foot syndromes
for diagnostic documentation by professionals in orthopaedics, podiatry or sports science
includes ink roller, ink, circumference marker, foot imprinting pad (100 sheets) and rubber plate

with riveting hole, length 680mm

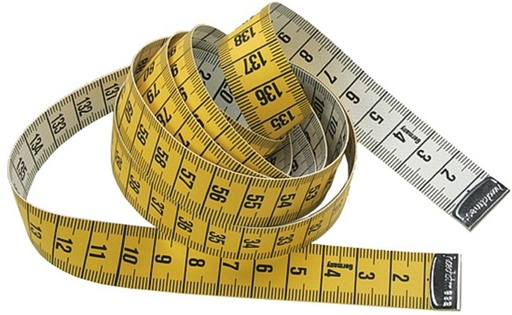

Tape measure of light quality, for everyday use. Yellow/white ribbon in polyfiber fabric with black graduation on both sides. Metal tip at both ends.
Length: 150cm
Width: 18.5mm
