diam. 125mm, 0.5l

Closed, pre-stretched line. ≥ M3 with GUN entry on both sides for easy threading and clean chip evacuation in the cutting direction. Entry on 2 nets. Ground and nitrided, rake angle approx. 15 °.
Thread size: M6
Thread Type: M
Side angle: 60 °
Tool type: HSS E
Tolerance class: DIN 13 6g
Cutting direction: straight
Pitch: 1mm
⌀ outer: 20mm
Height: 7mm

Closed, pre-stretched line. ≥ M3 with GUN entry on both sides for easy threading and clean chip evacuation in the cutting direction. Entry on 2 nets. Ground and nitrided, rake angle approx. 15 °.
Thread size: M5
Thread Type: M
Side angle: 60 °
Tool type: HSS E
Tolerance class: DIN 13 6g
Cutting direction: straight
Pitch: 0.8mm
⌀ outer: 20mm
Height: 7mm

Strong octagonal shank, bright finished point. Uniformly through hardened over the entire length. Head specially annealed to prevent splintering.
Safety tested to DIN 7255.
Material: Chrome vanadium air hardening steel, painted. Head annealed.
overall length: 120 mm
Shank ⌀: 10 mm
Type of striking head: annealed
Material: Chrome vanadium air hardening steel
Surface: painted

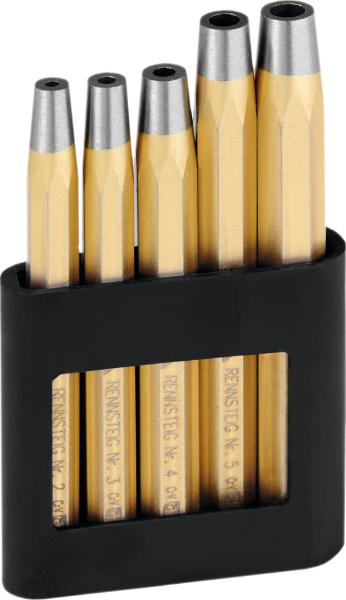

Octagonal shank, bright finished head. Head specially annealed to prevent splintering.
Chrome vanadium air hardened steel, painted surface.
1 each rivet snap setter: Size 2; 3; 4; 5; 6

Octagonal body, uncoated head. The special treatment of the head prevents splinters

L-form shaft to DIN ISO 2936 L, end faces squared and chamfered. Chrome vanadium steel, through hardened (toughened).
Surface manganese phosphated.
1 each L-wrench No. 626125: Size 1.5; 2; 2.5; 3; 4; 5; 6; 8; 10
Storage in: Plastic clip

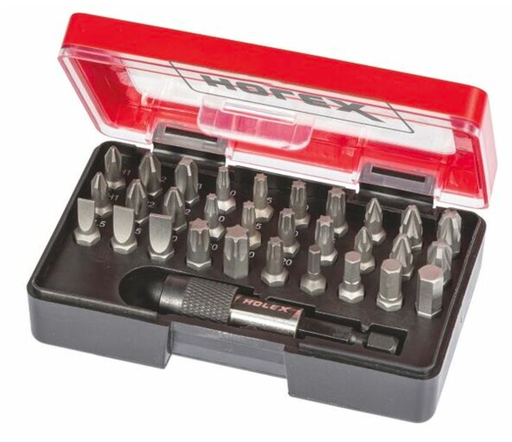

Description
Content:
Assorted bits blades C6.3 (1/4 inch); 1 coupling shank.
Content table use:
30 bits set 1/4 inch C6.3, length 25 mm: gs_profil_phillips 1 pc. each size 1; 2; 3
gs_profil_pozidriv 2 pcs. each size 1; 2; 3
gs_profil_schlitz 1 pc. each size 4; 5; 6.5
gs_profil_torx 2 pcs. each size TX10; TX20; TX40
gs_profil_torx 3 pcs. each size TX15; TX25; TX30
gs_profil_6kant 1 pc. each size 4; 5; 6
1 adapter: 1/4 inch gs_profil_4kant-einsatz – 1/4 inch gs_profil_6kant-einsatz
Adapter: 1 pc.

Bow made of oval, varnished steel tube with clamping lever. Saw blade made of original Swedish steel. With hardened tooth tips. Precision ground and exactly set.
Rip-toothed (HZ) 4 teeth before the raker − always sharp. For all types of wood, particularly green wood.
Tooth profile: Rip-toothed
Blade length: 760 mm
Blade height: 18 mm

High performance blades with maximum cutting capacity and long life

Entirely made of steel, unbreakable. Foldable form with self-closing coupling hooks

Sturdy shears body of quenched and tempered steel. Moving blade guides free of play (with low friction losses), blades of special tool steel, specially hardened and ground. Lever arm with counterweight spring for protection in the event of accidents, all pivot pins adjustable, all models with steplessly adjustable clamping arm.
With compound action. Cuts sheet metals and round steel bar.
-The following specifications are required for subsequent orders of spare blades: Make, model, and, if known, the machine number or accurate scale drawing.
-Please note: The indicated cutting performance is a maximum. If sustained use at the maximum cutting performance is required, we recommend the next larger model.
-Cutting performance specifications refer to materials of 450 N/mm2 tensile strength.
Cutting capacity sheet thickness: up to 5 mm
Cutting capacity round steel bar ⌀: up to 11 mm
Upper blade length: 173 mm
Lower blade length: 150 mm

Strong base with lapped standing surface. Reading 0.02 mm with fine adjustment. The scriber is carbide tipped. With adjustable measuring beam, magnifying glass and locking screw.
Metrology: Analogue / Material: Stainless steel, INOX / Surface base, Length: 135 mm / Tracing height: 300 mm / Vernier: 1/50 mm / Calibration: E1 / Base area, width: 90 mm / Rule section: 28 × 9 mm / Allowable error: 0.06 mm

Precision machined edges and flat surfaces

Disposition of the blades around the axis of the tool

Disposition of the blades around the axis of the tool

Bi-metal hole saw set with popular hole saw diameters. HSS variable tooth pitch for smooth cutting and long service life.
Impact-resistant plastic box with bi-metal hole saws, mounting shanks and centre drills.
Technical Data
Hole saw ⌀: 22; 30; 35; 44; 51; 68 mm
Number of pieces: 10
Number of mounting shafts: 2
Number of centre drills: 2

With sharp drill point, pre-drilling not necessary. Conically increasing cutting edges and radially relief ground circumference for a paring cut. With scale in the flutes. Three drive flats on the shank.
Leaves no burr or chatter marks.
Sheet metal 0.1 − 2 mm, stainless steel 0.1 − 1 mm, non-ferrous metals: 0.1 − 5 mm, plastics up to 10 mm.
Cutter ⌀ Dc: 16 mm - 30.5 mm
Overall length: 71 mm
Shank ⌀: 10 mm
Tool material: HSS

Center drill with radius type R

With shock-proof plastic handle and round chrome-plated blade.
Material: Chrome vanadium steel.
Blade length: 80 mm
Blade ⌀: 5 mm
overall length: 155 mm

2-part plastic handle with spring-loaded lock for locking / unlocking blades / telescopic shank. Blades can be stored in the removable end cap.

Matte chromed anti-glare reading parts.
Fine graduation, high contrast.
Finely honed measuring surfaces.
Locking screw at the top.
Technical data
All parts: hardened / Depth gauge: flat / Metrology: analog / Locking: Locking screw on top / Thread table: Caliper table / Material: Stainless steel, INOX / Switchable reading: mm - inch / Graduation: 1/20 mm / Graduation: 1/128 inch / Allowable error: 0.05 mm / Standard: DIN 862 / Measuring range: 0 mm - 150 mm / Calibration: A1 / Packing: Case / Reading: 0.05 mm / Spout length: 40 mm

Beveled measuring tips for measurements at the bottom of the thread and in narrow grooves. Rounded nose tips for interior measurements. Graduation with high contrast. With stop screw. Fully tempered to ref. 300, tempered measuring surfaces from ref. 500.
Material: Stainless steel, INOX / Metrology: Analog / Vernier graduation: mm / inches / Packing: Robust box / Graduation: 1/20 mm / Graduation: 1/128 inch / Locking: Locking screw on top / Switchable reading: mm / inch / Measuring range: 0 mm - 300 mm / Spout length: 90mm / Calibration: A1 / ⌀ Internal measuring shoulder: 10 mm / Standard: DIN 862 / Permissible error: 0.05 mm

Sturdy design with long arms, made of tool steel. Points and measuring faces ground and hardened. Solid spindle with adjusting nut for quick and fine adjustment. Annular spring provides constant spring tension.
With replaceable tips.

Boîtier en plastique avec clip-ceinture amovible. Rembobinage automatique amorti et blocage du ruban. Crochet terminal mobile, CRM 391

Of special stainless clock spring steel with ground measuring edges. Wide version. Upper and lower edges both with mm graduations. Very easy to read due to matt surface and sharp graduation scale.
Graduations electrolytically etched. Matt non-reflective surface.

With hardened jaws and steel handles. Possibility of removing a handle to allow use in confined spaces.
Reinforced model. All dimensions with high quality forged steel body and solid steel handles.
□ capacity: 3 mm - 9 mm
For hand taps DIN 352: M4 - M12
For ⌀ hand reamers DIN 206: 5 mm - 10 mm
Total length: 280 mm

Unscrewable steel handles. With 5 clamping screws for fixing the die. Up to ref. 65 × 25 in die-cast zinc, from item no. 75 × 20 in steel.
For ⌀ die: 25mm
Height: 9mm
Standard: EN 22568
Total length: 210mm

Unscrewable steel handles. With 5 clamping screws for fixing the die. Up to ref. 65 × 25 in die-cast zinc, from item no. 75 × 20 in steel.
For ⌀ die: 20mm
Height: 5mm
Total length: 175mm

Closed, pre-stretched line. ≥ M3 with GUN entry on both sides for easy threading and clean chip evacuation in the cutting direction. Entry on 2 nets. Ground and nitrided, rake angle approx. 15 °.
Thread size: M8
Thread Type: M
Side angle: 60 °
Tool type: HSS E
Tolerance class: DIN 13 6g
Cutting direction: straight
Pitch: 1.25mm
⌀ outer: 25mm
Height: 9mm

Closed, pre-stretched line. ≥ M3 with GUN entry on both sides for easy threading and clean chip evacuation in the cutting direction. Entry on 2 nets. Ground and nitrided, rake angle approx. 15 °.
Thread Size: M4
Thread Type: M
Side angle: 60 °
Tool type: HSS E
Tolerance class: DIN 13 6g
Cutting direction: straight
Pitch: 0.7mm
⌀ outer: 20mm
Height: 5mm

Closed, pre-stretched line. ≥ M3 with GUN entry on both sides for easy threading and clean chip evacuation in the cutting direction. Entry on 2 nets. Ground and nitrided, rake angle approx. 15 °.
Thread size: M10
Thread Type: M
Side angle: 60 °
Tool type: HSS E
Tolerance class: DIN 13 6g
Cutting direction: straight
Pitch: 1.5mm
⌀ outer: 30mm
Height: 11mm

Jeu de 3 tarauds composé d’un ébaucheur, d’un intermédiaire et d’un finisseur

Special grade for: Stainless steel

Special grade for: Stainless steel

Special grade for: Stainless steel

Special grade for: Stainless steel

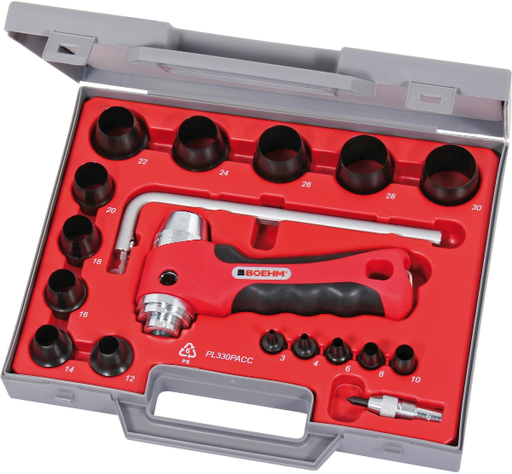

2-component holder (up to size 3-20) with pistol handle with exchangeable precision ground punch cutters. For the production of gaskets two punch cutters of different ⌀ are inserted together in the holder.
For punching or manufacturing discs / rings in one operation. For rubber, leather, felt, plastic, cork, fabric or similar materials.
1 each circle cutter ⌀: 55−330 mm
Centring point No. 832140: 1 pc.
1× each punching tool ⌀ No. 832110: 15 pcs.
size 3; 4; 6; 8; 10; 12; 14; 16; 18; 20; 22; 24; 26; 28; 30
Available combinations of punches inner : outer (mm): 3−10 inner with 12−30 outer 12−20 inner with 22−30 outer
Container length×width×height (mm): Plastic 275×205×50
Use an underlay of wood, leather etc. when punching to avoid damage.
The following combinations are not possible: 20 (inner) with 22 (outer); 30 (inner) with 32 (outer); 40 (inner) with 42 (outer); 50 (inner) with 52 (outer).

2-component holder (up to size 3-20) with pistol handle with exchangeable precision ground punch cutters. For the production of gaskets two punch cutters of different ⌀ are inserted together in the holder.
For punching or manufacturing discs / rings in one operation. For rubber, leather, felt, plastic, cork, fabric or similar materials.
1× each punching tool ⌀: 10 pcs.
size 3; 4; 6; 8; 10; 12; 14; 16; 18; 20
Available combinations of punches inner : outer (mm): 3−10 inner with 12−20 outer
Container length×width×height (mm): Plastic 140×100×40
Use an underlay of wood, leather etc. when punching to avoid damage.
The following combinations are not possible: 20 (inner) with 22 (outer); 30 (inner) with 32 (outer); 40 (inner) with 42 (outer); 50 (inner) with 52 (outer).

Strong, forged design, special tough varnish; taper section (cutting part) bright metal. Slight internal taper for releasing the cut pieces.

Octagonal body, uncoated head

Clés dynamométriques à un bras sans vernier de réglage. Réglables par un appareil de contrôle de clé dynamométrique
