This prosthetic alignment frame is an essential tool for orthopedic centers, designed to precisely align the patient’s prosthesis using centering templates compatible with conical and cylindrical cups. Its robust and ergonomic design ensures a perfect positioning of the prosthetic limb, enhancing the patient’s stability and comfort.

Features & Benefits:
✔ Precise and secure alignment: Ensures optimal centering for a balanced posture and improved walking comfort.
✔ Universal compatibility:

Works with conical and cylindrical cups.
Suitable for transtibial and transfemoral prostheses.
✔ Robust and durable construction:
Reinforced steel structure for maximum strength.
Reduces manual adjustments thanks to increased assembly precision.
✔ Ease of use:
Intuitive centering system reduces installation time.
Compatible with various prosthetic systems.
✔ Ideal for orthopedic centers in low- and middle-income countries:
Optimizes the alignment process by minimizing errors.
Increases prosthetic fitting accuracy for better patient outcomes.
Applications:
✅ Precise prosthetic fitting and assembly
✅ Centering and stabilization of conical and cylindrical cups
✅ Improved patient comfort and mobility

With its ergonomic and robust design, this prosthetic alignment frame is an essential solution for ensuring precise and reproducible adjustments, allowing patients to benefit from a comfortable and perfectly aligned prosthesis.

OOMAALIGGJ

This knee insertion press is an essential tool for orthopedic centers, allowing for precise insertion of knee joint tubes into polypropylene transtibial and transfemoral modules. Designed for ergonomic and efficient use, it ensures optimal fixation while reducing the effort required to assemble the prosthetic components.

Features and Benefits:
✔ Precise and Secure Insertion: Allows perfect alignment of the knee with the tube, minimizing assembly errors.
✔ Optimized for transtibial and transfemoral prostheses: Ideal for mounting modular knees onto sockets.
✔ Robust and Durable Mechanism:

Reinforced steel structure for increased strength.
Designed to reduce stress on the components, preventing tube or joint deformation.
✔ Ease of Use:
Assisted insertion system saves time and effort. Compatible with multiple prosthetic tube diameters.
✔ Suitable for orthopedic centers in low- and middle-income countries:
Reduces the need for complex tools.
Increases the reliability of prosthetic assembly through uniform insertion.

Thanks to its robust and ergonomic design, this insertion press improves the efficiency and precision of the prosthetic manufacturing and assembly process, ensuring reliable and reproducible results.

also referenced under: OOMAALIGMIM

Adapter tubes used to connect lower extremity modular prosthetic parts.

also referenced under: OCPOMODUZ00021, 2R2

Degree of mobility 2-3
Heel height 10mm
Max load: 20-21=90kg, 22-25=95kg, 26-30=100kg
Cosmetic material: PU
Core material: Wood

bar width: 21mm
bar thickness: 4mm
bar length: 317mm (Upper) / 292mm (Lower)
Material: Stainless Steel

bar width: 19mm
bar thickness: 4mm
bar length: 317mm (Upper) / 292mm (Lower)
Material: Stainless Steel

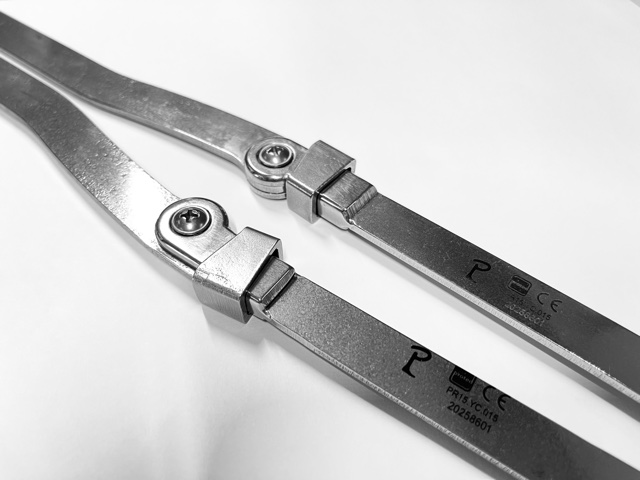

bar width: 14mm
bar thickness: 3mm
bar length: 317mm (Upper) / 292mm (Lower)
Material: Stainless Steel

100% coton

100% coton

100% coton

100% Coton

100% coton

100% coton

Functions and benefits:
The Rehab'Impulse Prosthetic Foot SACH 2.0 (Solid-Ankle Cushion-Heel) is made of soft thermoplastic polyurethane moulded over a POM core. It is designed to provide the user with a cushioned heel and a flexible keel that offers a smooth rolling action during stance phase. The cosmetic toe allows wearing of sandals and gives the foot a natural appearance.

Intended use:
This product is intended for prosthetic fitting on adults with activity levels K1 (household ambulator) and K2 (limited community ambulator).

Compatibility:
The Rehab'Impulse Foot SACH 2.0 is compatible with standard modular technology and the Rehab'Impulse module system:

- 74-00137 Module system, Transtibial, Adult
- 74-00134 Module system, Transfemoral, Adult
- 74-00229 Module system, Long Stump, Adult
- 74-00227 Module system, Transfemoral Connector M10, Child

Included in delivery
- 1x Foot SACH 2.0, Adult
- 1x Socket head cap screw, stainless steel, M10x80mm
- 1x Ribbed lock washer M10

Storage conditions
- Store product in dry conditions
- Store at room temperature (ideally between 15°C and 25°C)
- Keep out of direct sunlight or other sources of light with a high UV content
- Take precautionary measures against sparking and fire

Environmental conditions:
Recommended environmental conditions:
- Temperature range for use : -10°C to 60°C (14°F to 140°F)
- Relative humidity 0% to 90%, no condensing situation
- Avoid exposure to dust, sand, salt water, acids and urine

Functions and benefits:
The Rehab’Impulse Prosthetic Foot SACH 2.0 (Solid-Ankle Cushion-Heel) is made of soft thermoplastic polyurethane moulded over a POM core. It is designed to provide the user with a cushioned heel and a flexible keel that offers a smooth rolling action during stance phase. The cosmetic toe allows wearing of sandals and gives the foot a natural appearance.

Intended use:
This product is intended for prosthetic fitting on children with activity levels K1 (household ambulator) and K2 (limited community ambulator).

Compatibility:
The Rehab’Impulse Foot SACH 2.0 is compatible with standard modular technology and the Rehab’Impulse module system.

- 74-00221 Module system, Transtibial, Child
- 74-00223 Module system, Transfemoral, Child

Included delivery:
- 1x Foot SACH 2.0, Child
- 1x Socket head cap screw, stainless steel, M8x80mm
- 1x Ribbed lock washer M8

Storage conditions:
- Store product in dry conditions
- Store at room temperature (ideally between 15°C and 25°C)
- Keep out of direct sunlight or other sources of light with a high UV content
- Take precautionary measures against sparking and fire

Environmental conditions:
Recommended environmental conditions:
- Temperature range for use : -10°C to 60°C (14°F to 140°F)
- Relative humidity 0% to 90%, no condensing situation
- Avoid exposure to dust, sand, salt water, acids and urine

Max 100kg

also referenced under: OCPOMODU4R21, 4R66

Adapter tubes used to connect lower extremity modular prosthetic parts.

also referenced under: OCPOMODUZ00021, 2R2

Adapter tubes used to connect lower extremity modular prosthetic parts.

also referenced under: OCPOMODUZ00021, 2R2

Product weight 370g
Load range 85kg
Knee flexion range 175°
Material Aluminum alloy 7075

Load range 100 kg
Knee flexion range 110°
Material Stainless steel

Degree of mobility: 2
Knee flexion angle: 175 °

Mobility degree : 2
Proximal connection : Pyramid adapter
Distal connection : Pyramid adapter
Knee flexion angle : 120°
System height : 81mm
Maximum body weight : 100kg

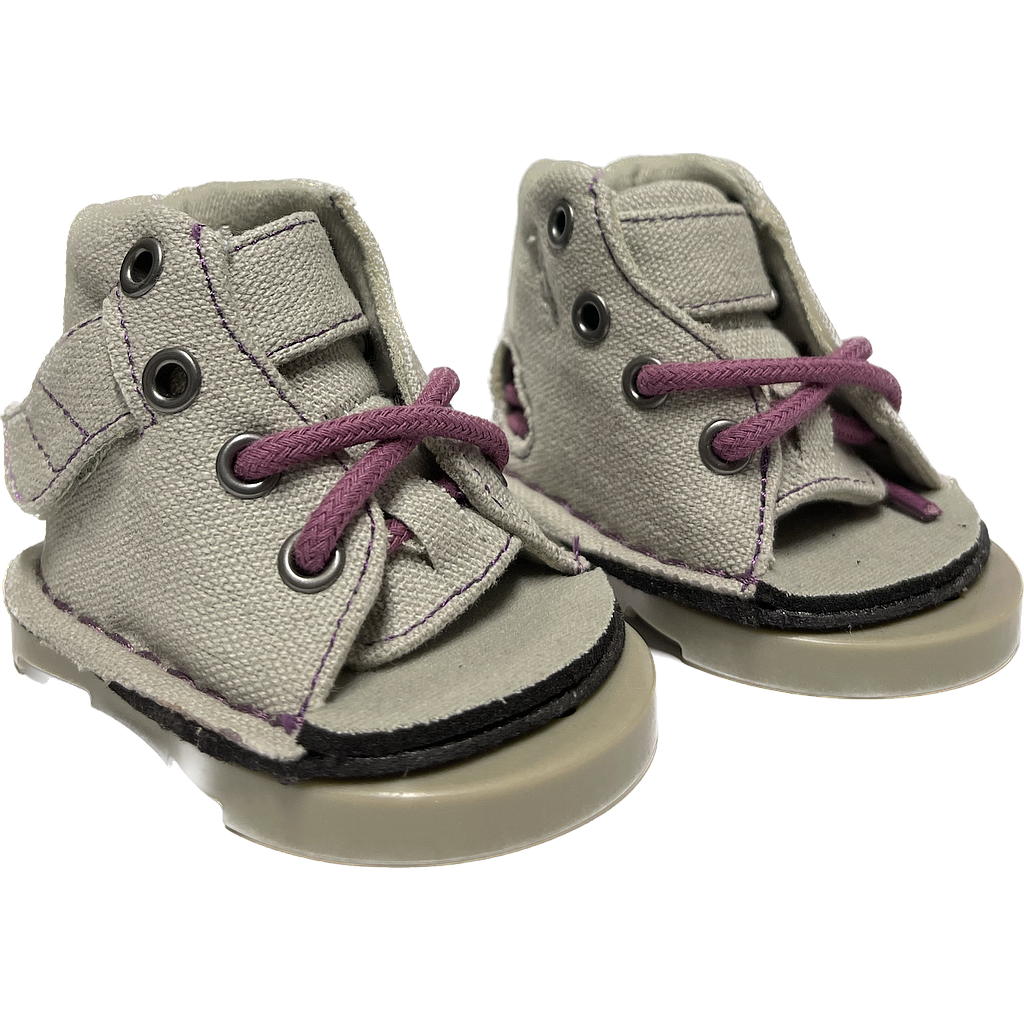

- 7 shoe sizes to fit children from 3 months to 5 years of age
- Shoes should be fitted to allow for some growth. The parents should be instructed to return for larger shoes once the toes start to protrude over the end of the shoes.

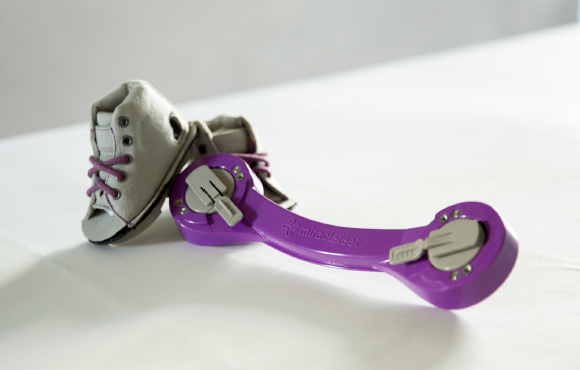

- Modular design: 3 bars sizes (150, 180, 220 mm) & 7 shoe sizes to fit children 3 months – 5 years old.
- Easy to use: Shoes clip on and off the bar to make putting the brace on the child much easier.
- Comfortable: Soft canvas shoes are lined to prevent blisters. Pronounced internal heel cup and inspection hole helps ensure the foot is positioned correctly in the shoe.
- Washable: Shoes and bar can be hand washed.
- Durable: Bar and shoes can be reused if in good condition.
- Child friendly design: Many parents report that this colorful, plastic brace feels less stigmatizing than other models.
- Medically Compliant: Meets Ponseti Method and WHO Assistive Technology product specifications. Registered FDA and CE certified.
- Adjustable: Shoes can be set to 65˚ or 45˚ of abduction to accommodate bi- and unilateral cases.
- Manufacturing: Plastic parts are injection molded in the US. The shoes are made in China.

Above and below knee amputation

Above knee amputation, transfemoral

Above knee amputation, transfemoral. Bottom cover not included

Above knee amputation, transfemoral

Above knee amputation, transfemoral

Below knee amputation, transtibial

Below knee amputation, transtibial

Above knee dual thickness sock with 19mm hole for use with Silicone Lock-Pin system. The upper part of the sock is plain fabric, the lower part is terry fabric.

Maximum lateral stretch 35cm
Maximum circumference 70cm

Above knee dual thickness sock with 19mm hole for use with Silicone Lock-Pin system. The upper part of the sock is terry fabric, the lower part is plain fabric.

Maximum lateral stretch 33cm
Maximum circumference 66cm

Above knee dual thickness sock. The upper part of the sock is plain fabric, the lower part is terry fabric.

Maximum lateral stretch 35cm
Maximum circumference 70cm

Above knee dual thickness sock. The upper part of the sock is terry fabric, the lower part is plain fabric.

Maximum lateral stretch 33cm
Maximum circumference 66cm

Below knee dual thickness sock with 19mm hole for use with Silicone Lock-Pin system. The upper part of the sock is plain fabric and the lower part is terry fabric.

Maximum lateral stretch 33cm
Maximum circumference 66cm
