- creates extra space in socket for sensitive areas when adjusting
Specifications: 6x silicones pads, 2 of each shape
Dimensions: 3 x 7 x 3cm, 7.5 x 8.2 x 3cm, 3.5 x 3.5 x 3cm

Filter and manometer included

- for fittings at the clinic and on the go
Weight: 4.4kg
Size: 30.5 x 12 x 17cm
Max. Vacuum: 0.8 bar
Flow Rate: 68 l/min

- for even heating of the Confidence Socket
- heated using a heat gun

Specifications:
Oven Hood, Stand, Silicone Base & Insulation Cap

Amputation: Below-knee (transtibial) amputees
Socket: Interim socket / Test socket
Remolds: 10 times
All-in-One: mounting plate attached
Offset: 1 cm
Suspension system: Passive vacuum (liner + sleeve) or Pin-Lock (Clutch)
Weight bearing: Total-Surface-Bearing (TSB)

consisting of:
901-MO Mobile Oven
901-VP Mobile Vacuum Pump
901-VA Vacuum Adaptor
901-SP Spacer Pads
901- TSB Tool Storage Bag
901-WB Workshop Bag

Functions and benefits:
The Heavy Duty Nut, M10, Long Stump, is part of the Rehab'Impulse modular system and is designed to provide compatibility with our child long stump kit and the Foot SACH 2.0 Adult. It is intended for childs with a long residual limb.

Intended use:
The Rehab'Impulse Heavy Duty Nut, M10, Long Stump, child, is intended for prosthetic fitting of users with a body weight of up to 80 kg (P4). This product is not intended for excessive physical activities.

Compatibility:
- 74-00229 Module System, Adult - Long Stump
- Foot SACH 2.0 Child – sizes 16 to 20

Included in delivery:
- 10x Heavy Duty Nut, M10

Storage conditions:
- Store product in dry conditions

Environmental conditions:
Recommended environmental conditions:
- Avoid exposure to dust, sand, salt water, acids and urine

Functions and benefits:
The Module System, Long Stump, Adult, is part of the Rehab'Impulse modular system that permits prosthetic fitting at various levels of amputation and disarticulation of the lower extremities. The adult long stump kit consists of a set of components allowing different alignment configurations intended for adults with a long residual limb.

Intended use:
The Rehab'Impulse module system, long stump, adult, is intended for prosthetic fitting of users with a body weight of up to 80 kg (P4) and a long residual limb. This product is not intended for excessive physical activities.

Compatibility:
The components included in the set are compatible with the Rehab'Impulse prosthetic feet:
- Foot, SACH 2.0, sizes 22-28

Included In delivery:
- 1x Cup, TTA/TTC/TFC/LS
- 1x Convex disc
- 1x Concave ankle washer
- 1x Flat washer, SS, 15/44/3
- 1x Hexagonal nut, SS, M10

Storage conditions:
- Store product in dry conditions
- Store at room temperature (ideally between 15°C and 25°C)
- Keep out of direct sunlight or other sources of light with a high UV content
- Take precautionary measures against sparking and fire

Environmental conditions
Recommended environmental conditions:
- Temperature range for use : -10°C to 60°C (14°F to 140°F)
- Relative humidity 0% to 90%, no condensing situation
- Avoid exposure to dust, sand, salt water, acids and urine
Optional for foot fixation (not included in delivery)
- 74-00880 Heavy Duty Nut M10

Functions and benefits:
The Knee Joint, Polycentric, Adult, is designed to provide improved stability throughout stance phase and smooth progression during swing phase with increased toe-clearance. This polycentric knee joint with extension assist provides a wide bending angle of up to 165° with increased stability when kneeling.

Intended use:
The Rehab'Impulse polycentric knee joint, adult, is intended for prosthetic fitting of users with a body weight of up to 80 kg (P4). This product is not intended for excessive physical activities.

Compatibility:
The polycentric knee joint is compatible with the Rehab'Impulse modular system. A specially designed pyramid adapter kit (74-00337) offers compatibility with standard modular tube clamp adapters.

- 74-00134 Module System, Transfemoral, Adult
- 74-00337 Pyramid Adapter, Knee Joint, Adult

Included in delivery:
- 1x Knee Joint, Polycentric, Adult
- 3x Spacer for stability adjustment (see user manual for mounting instructions)

Storage conditions:
- Store product in dry conditions
- Store at room temperature (ideally between 15°C and 25°C)
- Keep out of direct sunlight or other sources of light with a high UV content
- Take precautionary measures against sparking and fire

Environmental conditions:
Recommended environmental conditions:

- Temperature range for use : -10°C to 60°C (14°F to 140°F)
- Relative humidity 0% to 90%, no condensing situation
- Avoid exposure to dust, sand, salt water, acids and urine

Functions and benefits:
The Module System, Transfemoral, Child, is part of the Rehab'Impulse modular system that permits prosthetic fitting for various levels of amputation and disarticulation of the lower extremities. The child transfemoral kit consists of a set of components allowing different alignment configurations.

Intended use:
The Rehab'Impulse module system, transfemoral, child, is intended for prosthetic fitting of users with a body weight of up to 60 kg (P3). This product is not intended for excessive physical activities.

Compatibility:
The components included in the set are compatible with the Rehab'Impulse children knee joints and prosthetic feet:
- 74-00240 Knee Joint, Monocentric, Child, Beige
- 74-00241 Knee Joint, Monocentric, Child, Olive
- 74-00242 Knee Joint, Monocentric, Child, Terra
- Foot, SACH 2.0, sizes 14-21

Included in delivery*:
- 1x Cup, TTA/TTC/TFC/LS
- 1x Convex disc
- 1x Conical cup, transfemoral, child
- 1x Concave cylinder, M8, child
- 1x Convex ankle washer, child
- 1x Screw, countersunk head, FT, SS, M10x50
- 2x Flat washer, SS, 15/44/3
- 1x Flat washer, SS, 10.5/25/1.5
- 1x Hexagonal nut, SS, M10
- 1x Coiled spring expansion pin, SS, 5x40

Storage conditions:
- Store product in dry conditions
- Store at room temperature (ideally between 15°C and 25°C)
- Keep out of direct sunlight or other sources of light with a high UV content
- Take precautionary measures against sparking and fire

Environmental conditions:
Recommended environmental conditions:
- Temperature range for use : -10°C to 60°C (14°F to 140°F)
- Relative humidity 0% to 90%, no condensing situation
- Avoid exposure to dust, sand, salt water, acids and urine
*Please note: Knee joint and foot not included with the system. To be ordered separately

Functions and benefits:
The Knee Joint, Monocentric, Child, is a durable and versatile prosthetic knee joint with an integrated manual locking system. This monocentric knee joint provides a bending angle of up to 125°.

Intended use:
The Rehab'Impulse monocentric knee joint, child, is intended for prosthetic fitting of users with a body weight of up to 60 kg (P3). This product is not intended for excessive physical activities.

Compatibility:
The monocentric knee joint is compatible with the Rehab'Impulse modular system:

- 74-00223 Module System, Transfemoral, Child

Included in delivery:
- 1x Knee Joint, Monocentric, Child

Storage conditions:
- Store product in dry conditions
- Store at room temperature (ideally between 15°C and 25°C)
- Keep out of direct sunlight or other sources of light with a high UV content
- Take precautionary measures against sparking and fire

Environmental conditions:
Recommended environmental conditions:

- Temperature range for use : -10°C to 60°C (14°F to 140°F)
- Relative humidity 0% to 90%, no condensing situation
- Avoid exposure to dust, sand, salt water, acids and urine

Functions and benefits:
The Knee Joint, Monocentric, Adult, is a durable and versatile prosthetic knee joint with an integrated manual locking system. This monocentric knee joint provides a bending angle of up to 125°.

Intended use:
The Rehab'Impulse monocentric knee joint, adult, is intended for prosthetic fitting of users with a body weight of up to 80 kg (P4). This product is not intended for excessive physical activities.

Compatibility:
The monocentric knee joint is compatible with the Rehab'Impulse modular system. A specially designed pyramid adapter kit (74-00337) offers compatibility with standard modular tube clamp adapters.

- 74-00134 Module System, Transfemoral, Adult
- 74-00337 Pyramid Adapter, Knee Joint, Adult

Included in delivery:
- 1x Knee Joint, Monocentric, Adult

Storage conditions:
- Store product in dry conditions
- Store at room temperature (ideally between 15°C and 25°C)
- Keep out of direct sunlight or other sources of light with a high UV content
- Take precautionary measures against sparking and fire

Environmental conditions:
Recommended environmental conditions:

- Temperature range for use : -10°C to 60°C (14°F to 140°F)
- Relative humidity 0% to 90%, no condensing situation
- Avoid exposure to dust, sand, salt water, acids and urine

Functions and benefits:
The Module System, Transtibial, Child, is part of the Re- hab’Impulse modular system that permits prosthetic fitting for various levels of amputation and disarticulation of the lower extremities.The child transtibial kit consists of a set of components allowing different alignment configurations.

Intended use:
The Rehab’Impulse module system, transtibial, child, is intended for prosthetic fitting of users with a body weight of up to 60 kg (P3). This product is not intended for excessive physical activities.

Compatibility:
The components included in the set are compatible with the Rehab’Impulse prosthetic feet:
- Foot, SACH 2.0, sizes 14-21

Included in delivery*:
- 1x Cup, TTA/TTC/TFC/LS
- 1x Convex disc
- 2x Concave cylinder, M8, child
- 1x Convex ankle washer, child
- 1x Screw, countersunk head, FT, SS, M8x60
- 1x Flat washer, SS, 10.5/40/1.5

Storage conditions:
- Store product in dry conditions
- Store at room temperature (ideally between 15°C and 25°C)
- Keep out of direct sunlight or other sources of light with a high UV content
- Take precautionary measures against sparking and fire

Environmental conditions:
Recommended environmental conditions:

- Temperature range for use: -10°C to 60°C (14°F to 140°F)
- Relative humidity 0% to 90%, no condensing situation
- Avoid exposure to dust, sand, salt water, acids and urine
* Please note: Foot not included with the system. To be ordered separatly.

Functions and benefit:
The Module System, Transtibial, Adult, is part of the Rehab’Impulse modular system that permits prosthe- tic fitting for various levels of amputation and disarti- culation of the lower extremities. The adult transtibial kit consists of a set of components allowing different alignment configurations.

Intended use:
The Rehab’Impulse module system, transtibial, adult, is intended for prosthetic fitting of users with a body weight of up to 80 kg (P4). This product is not intended for excessive physical activities.

Compatibility:
The components included in the set are compatible with the Rehab’Impulse prosthetic feet:
- Foot, SACH 2.0, sizes 22-28

Included in delivery*:
- 1x Cup, TTA/TTC/TFC/LS
- 1x Convex disc
- 2x Concave cylinder, M10, adult
- 1x Convex ankle washer, adult
- 1x Screw, countersunk head, FT, SS, M10x60
- 1x Flat washer, SS, 15/44/3

Storage conditions:
- Store product in dry conditions
- Store at room temperature (ideally between 15°C and 25°C)
- Keep out of direct sunlight or other sources of light with a high UV content
- Take precautionary measures against sparking and fire

Environmental conditions:
Recommended environmental conditions:

- Temperature range for use : -10°C to 60°C (14°F to 140°F)
- Relative humidity 0% to 90%, no condensing situation
- Avoid exposure to dust, sand, salt water, acids and urine
* Please note : Foot not included with the system. To be ordered separately.

kit with 5 pairs of joints and 1 assembly threaded rod

kit with 5 pairs of joints and 1 assembly threaded rod

Used to ensure connection between ankle and foot
Length from joint
center=60mm

Used to ensure connection between ankle and foot
Length from joint
center=60mm

beige color

Non-shaped colored PE foam for modular transtibial prostheses.

Suitable to use on below knee prostheses. Features a hole (diameter: 22mm) and can be used on both right and left side.

Flexible, non-shaped colored foam for modular transtibial prostheses.

Suitable to use on above knee prostheses. Features a hole (diameter: 22mm)

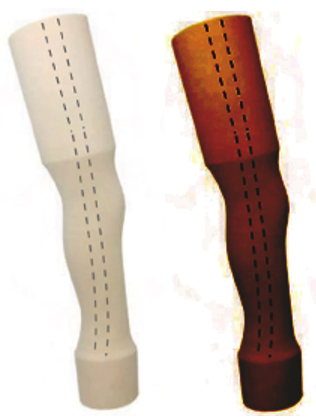

Flexible colored foam, preshaped for modular transfemoral protheses. Should only be used with modular knee joints with internal ewtension assists.
Knee flexion: 15°

110°

also referenced under: 5R9

also referenced under: ODROSTOC5R16, 5R1=6

113mm

Lenght: 65.5mm
Sliding range: 12mm

Max. body weight: 150kg

PR01.K3 is a flexible and light carbon foot, specially designed for patients with a lower extremity Syme's amputation. The upper part of the foot features a carbon-fiber plate whereas the toes are composed of two carbon sheets. The foot is suitable with a steel rotating lamination anchor.
Include:
- Carbon Foot shell (in beige, dark brown and very dark brown color)
- Carbon Foot Stocking

Mobility degree: 3-4
Include:
- Carbon Foot shell (in beige, dark brown and very dark brown color)
- Carbon Foot Stocking

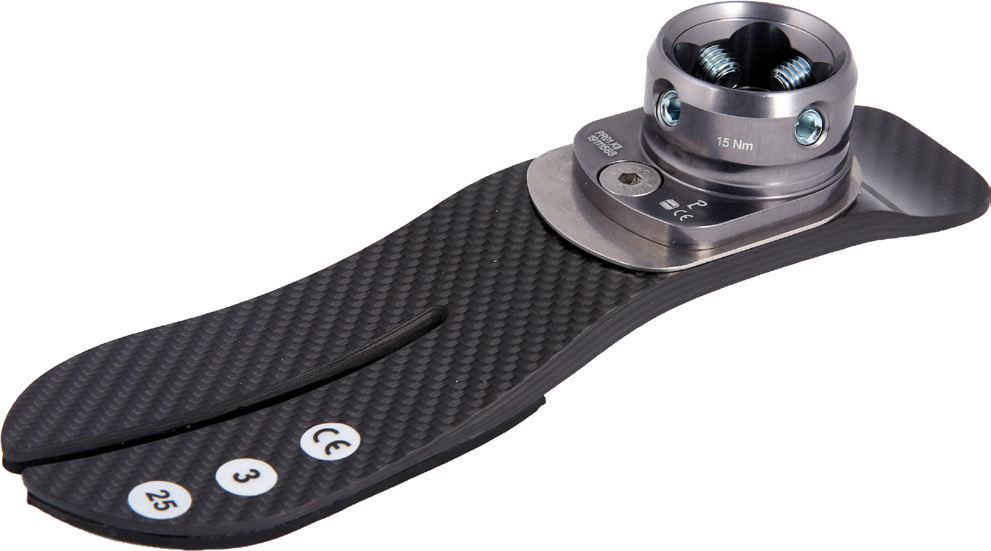

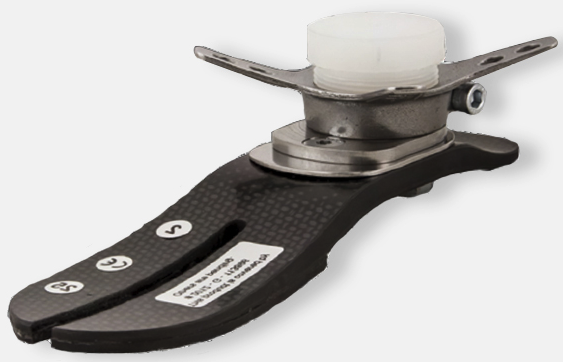

Syme Plus' static alignment properties and 10° internal and external rotation features makes it recommendable to Syme's amputees.
Mobility degree: 1-2, Heel height: 10mm, Max. load 80kg, Material: Carbon Fiber
Include:
- Carbon Foot shell (in beige, dark brown and very dark brown color)
- Carbon Foot Stocking

CHOPART PLUS is recommendable in Chopart's amputations. Its rotation feature makes the apllications more easy for the technicians.
Include:
- Carbon Foot shell (in beige, dark brown and very dark brown color)
- Carbon Foot Stocking

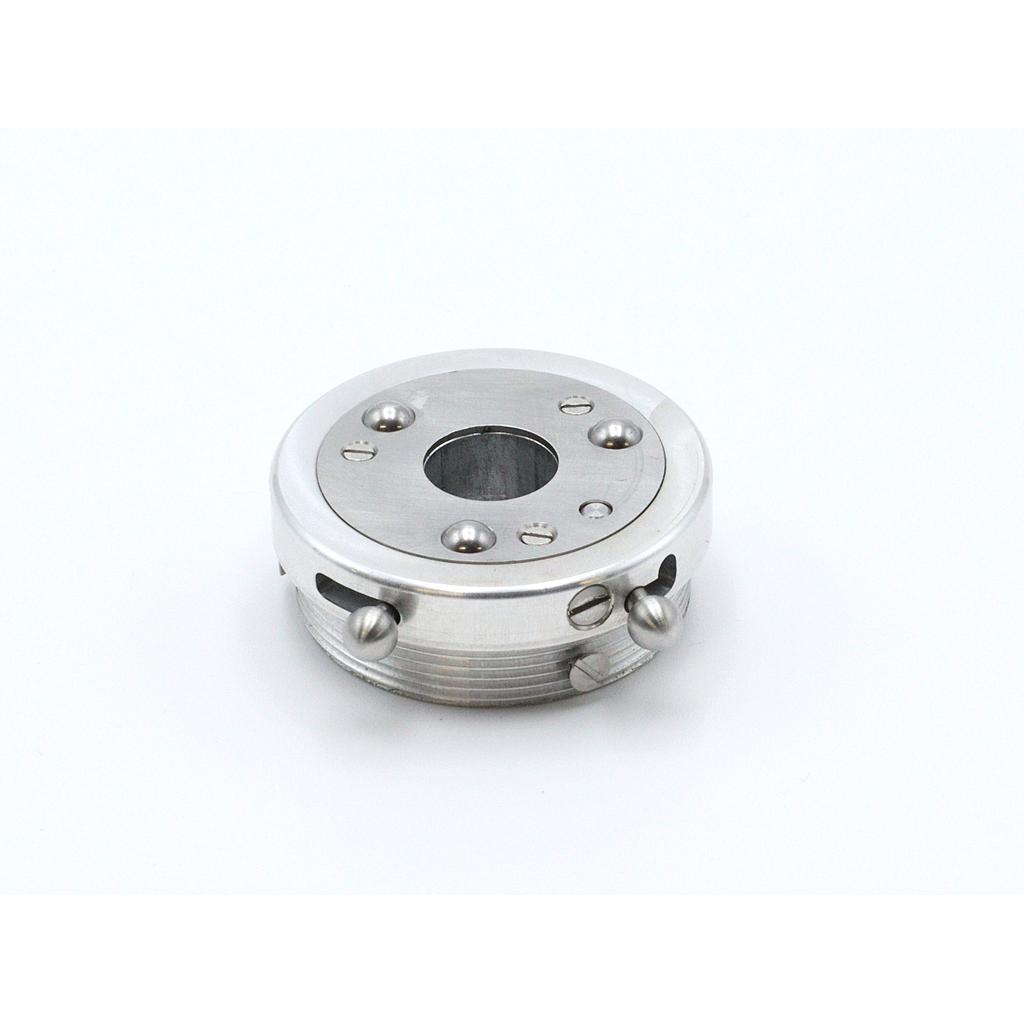

UNIVERSAL WRIST
BRAND: ORTHOPUS
Materials: stainless steel + aluminium
Weight: 93g (with tool holder)
Sizes: Ø53x18 mm
Made in France
NB: TO HAVE A COMPLETE AND FUNCTIONAL WRIST, IT IS NECESSARY TO BE EQUIPPED WITH THE WRIST AND THE TOOL HOLDER (REF 80 P 20.HW) AS ON THE SECOND PICTURE

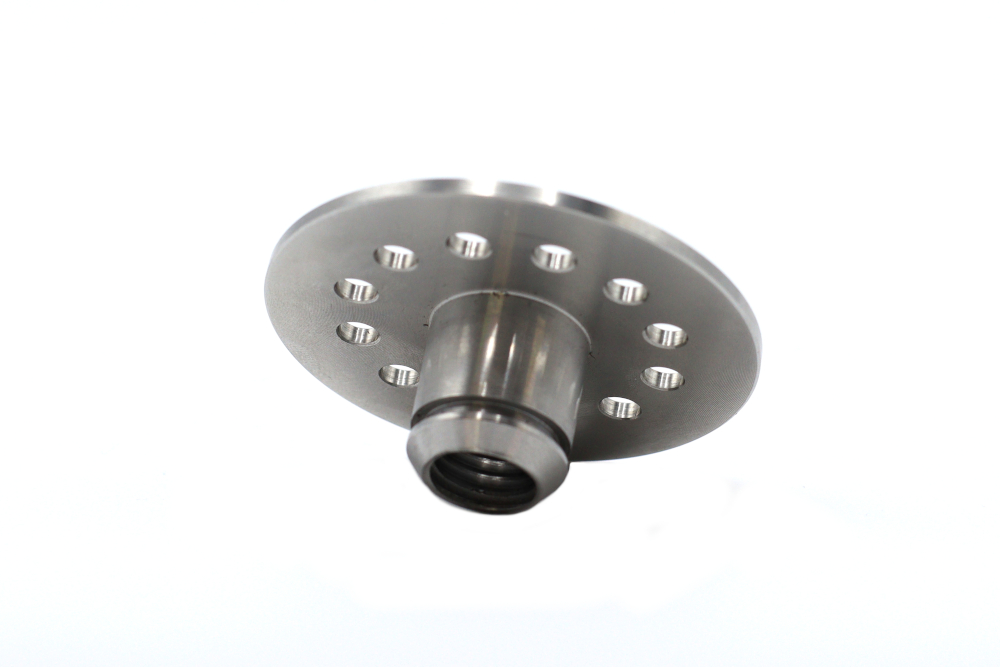

Adapted to upper-limb amputations including disarticulation of the wrist, this mechanical wrist fits directly into a socket and connects quickly to a large number of tools. The universal wrist is equipped with two levers to connect and disconnect a tool, or to lock (prono-supination) rotation as required.

BRAND: ORTHOPUS
Material: stainless steel
Dimensions: Ø53
Weight: 40.8g
Thread: M10
Made in France
It allows you to use all kinds of tools for everyday life by quickly attaching them to the universal wrist (REF 80 P 20.W).

Max 125kg

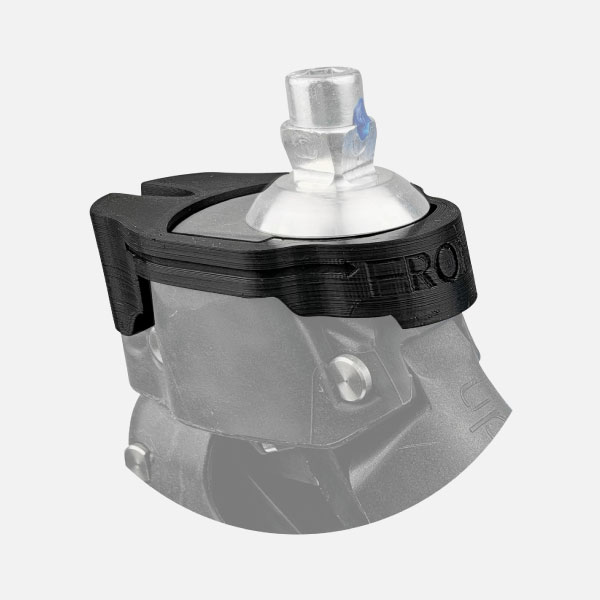

The Upya aesthetic clip is specially designed to fit the ankle of your Upya foot.
Its flat surface facilitates the application of an aesthetic leg foam.
WEIGHT: 20 grams
MATERIAL: PLA 3D impression

WARNING, it is recommended to have Upya and its spare parts installed by an orthopaedic professional.

bar width: 15.5mm
bar thickness: 3.5mm
bar length: 22.5mm (Upper) / 18.5mm (Lower)
Material: Stainless Steel
