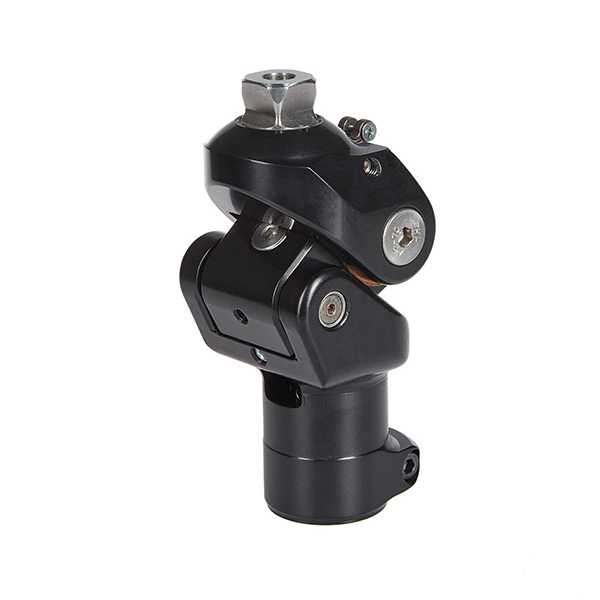

Single Axis Knee Joint 6Н02A is intended for patients with low and moderate activity, unilateral and bilateral amputations at any level except of articulation in the knee joint. Knee Joint 6Н02A provides a secure stance phase with forced fixation if required.
There is a built-in adjustable extension assist. The adjustment of the knee joint and extension assist does not require disassembly of the prosthesis.
Activity level: М1, М2
Maximum flexion angle: 130°
Material: Aluminium
Maximum weight of patient: 100kg
Weight: 520g

Functions and benefits:
The Heavy Duty Nut, M10, Long Stump, is part of the Rehab'Impulse modular system and is designed to provide compatibility with our child long stump kit and the Foot SACH 2.0 Adult. It is intended for childs with a long residual limb.

Intended use:
The Rehab'Impulse Heavy Duty Nut, M10, Long Stump, child, is intended for prosthetic fitting of users with a body weight of up to 80 kg (P4). This product is not intended for excessive physical activities.

Compatibility:
- 74-00229 Module System, Adult - Long Stump

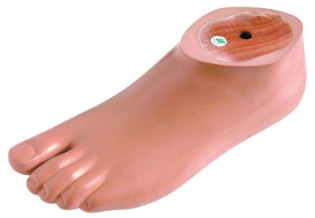

- Foot SACH 2.0 Child – sizes 16 to 20

Included in delivery:
- 10x Heavy Duty Nut, M10

Storage conditions:
- Store product in dry conditions

Environmental conditions:
Recommended environmental conditions:
- Avoid exposure to dust, sand, salt water, acids and urine

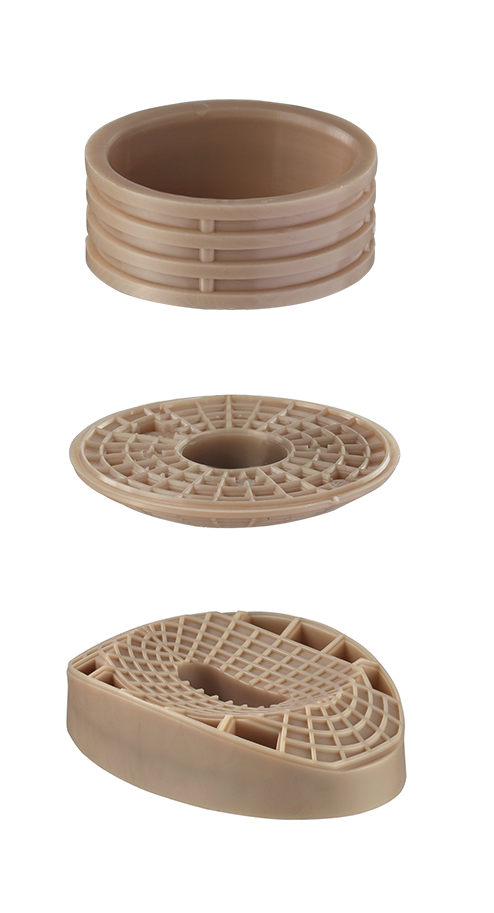

Functions and benefits:

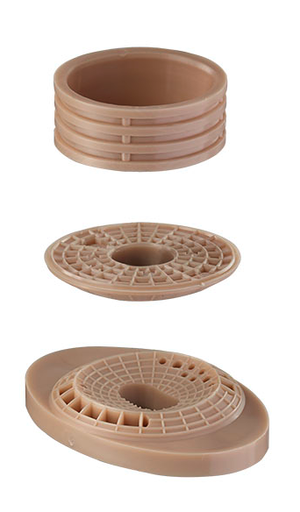

The Module System, Long Stump, Adult, is part of the Rehab'Impulse modular system that permits prosthetic fitting at various levels of amputation and disarticulation of the lower extremities. The adult long stump kit consists of a set of components allowing different alignment configurations intended for adults with a long residual limb.

Intended use:
The Rehab'Impulse module system, long stump, adult, is intended for prosthetic fitting of users with a body weight of up to 80 kg (P4) and a long residual limb. This product is not intended for excessive physical activities.

Compatibility:
The components included in the set are compatible with the Rehab'Impulse prosthetic feet:
- Foot, SACH 2.0, sizes 22-28

Included In delivery:
- 1x Cup, TTA/TTC/TFC/LS
- 1x Convex disc
- 1x Concave ankle washer
- 1x Flat washer, SS, 15/44/3
- 1x Hexagonal nut, SS, M10

Storage conditions:
- Store product in dry conditions
- Store at room temperature (ideally between 15°C and 25°C)
- Keep out of direct sunlight or other sources of light with a high UV content
- Take precautionary measures against sparking and fire

Environmental conditions
Recommended environmental conditions:
- Temperature range for use : -10°C to 60°C (14°F to 140°F)
- Relative humidity 0% to 90%, no condensing situation
- Avoid exposure to dust, sand, salt water, acids and urine
Optional for foot fixation (not included in delivery)
- 74-00880 Heavy Duty Nut M10

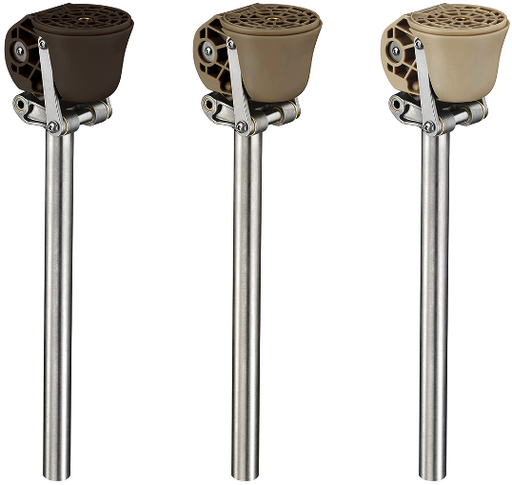

Functions and benefits:
The Knee Joint, Polycentric, Adult, is designed to provide improved stability throughout stance phase and smooth progression during swing phase with increased toe-clearance. This polycentric knee joint with extension assist provides a wide bending angle of up to 165° with increased stability when kneeling.

Intended use:
The Rehab'Impulse polycentric knee joint, adult, is intended for prosthetic fitting of users with a body weight of up to 80 kg (P4). This product is not intended for excessive physical activities.

Compatibility:
The polycentric knee joint is compatible with the Rehab'Impulse modular system. A specially designed pyramid adapter kit (74-00337) offers compatibility with standard modular tube clamp adapters.

- 74-00134 Module System, Transfemoral, Adult
- 74-00337 Pyramid Adapter, Knee Joint, Adult

Included in delivery:
- 1x Knee Joint, Polycentric, Adult
- 3x Spacer for stability adjustment (see user manual for mounting instructions)

Storage conditions:
- Store product in dry conditions
- Store at room temperature (ideally between 15°C and 25°C)
- Keep out of direct sunlight or other sources of light with a high UV content
- Take precautionary measures against sparking and fire

Environmental conditions:
Recommended environmental conditions:

- Temperature range for use : -10°C to 60°C (14°F to 140°F)
- Relative humidity 0% to 90%, no condensing situation
- Avoid exposure to dust, sand, salt water, acids and urine

Functions and benefits:

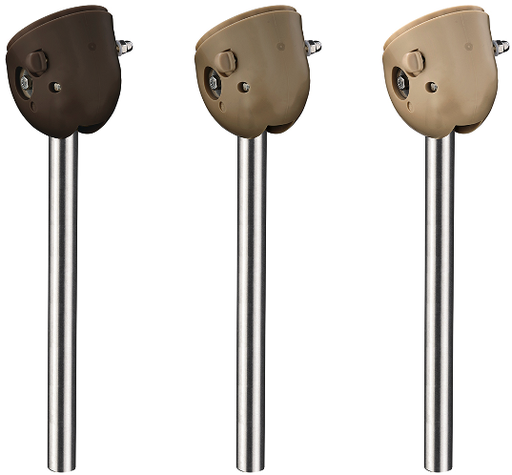

The Knee Joint, Monocentric, Child, is a durable and versatile prosthetic knee joint with an integrated manual locking system. This monocentric knee joint provides a bending angle of up to 125°.

Intended use:
The Rehab'Impulse monocentric knee joint, child, is intended for prosthetic fitting of users with a body weight of up to 60 kg (P3). This product is not intended for excessive physical activities.

Compatibility:
The monocentric knee joint is compatible with the Rehab'Impulse modular system:

- 74-00223 Module System, Transfemoral, Child

Included in delivery:
- 1x Knee Joint, Monocentric, Child

Storage conditions:
- Store product in dry conditions
- Store at room temperature (ideally between 15°C and 25°C)
- Keep out of direct sunlight or other sources of light with a high UV content
- Take precautionary measures against sparking and fire

Environmental conditions:
Recommended environmental conditions:

- Temperature range for use : -10°C to 60°C (14°F to 140°F)
- Relative humidity 0% to 90%, no condensing situation
- Avoid exposure to dust, sand, salt water, acids and urine

Functions and benefits:

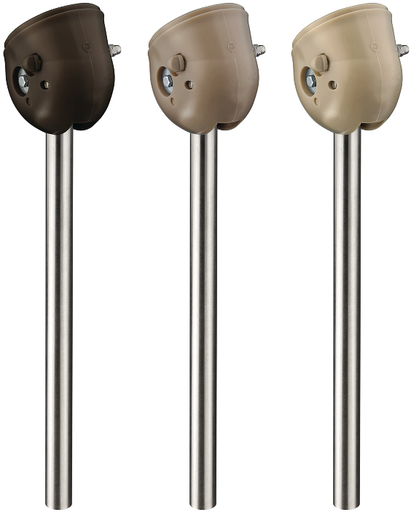

The Knee Joint, Monocentric, Adult, is a durable and versatile prosthetic knee joint with an integrated manual locking system. This monocentric knee joint provides a bending angle of up to 125°.

Intended use:
The Rehab'Impulse monocentric knee joint, adult, is intended for prosthetic fitting of users with a body weight of up to 80 kg (P4). This product is not intended for excessive physical activities.

Compatibility:
The monocentric knee joint is compatible with the Rehab'Impulse modular system. A specially designed pyramid adapter kit (74-00337) offers compatibility with standard modular tube clamp adapters.

- 74-00134 Module System, Transfemoral, Adult
- 74-00337 Pyramid Adapter, Knee Joint, Adult

Included in delivery:
- 1x Knee Joint, Monocentric, Adult

Storage conditions:
- Store product in dry conditions
- Store at room temperature (ideally between 15°C and 25°C)
- Keep out of direct sunlight or other sources of light with a high UV content
- Take precautionary measures against sparking and fire

Environmental conditions:
Recommended environmental conditions:

- Temperature range for use : -10°C to 60°C (14°F to 140°F)
- Relative humidity 0% to 90%, no condensing situation
- Avoid exposure to dust, sand, salt water, acids and urine

With hickory handle ergonomic shape, varnished.
Hammer head drop forged and ground to size. Carefully hardened and tempered. Head painted, face and peen bright finished.
With nylon handle protection sleeve. Size 200−1000 additionally with forged-on handle protection collar.

Multi-material handle with optimized grip area in terms of torque and comfort. Chrome-vanadium steel blade, chrome-plated

Multi-material handle with optimized grip area in terms of torque and comfort. Chrome-vanadium steel blade, chrome-plated

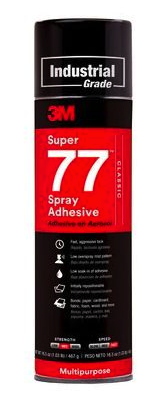

Product Description
- A high tack, high coverage and fast drying adhesive.
Product Features
• A high tack, high coverage fast drying, transparent adhesive for permanently attaching foils, carpeting, many
lightweight foams, paper, cardboard, felt and cloth to painted or unpainted metals, wood, hardboard and other
base materials.
• It provides high initial "grab" with su􀉣cient open time to allow for positioning of materials.
• Low soak-in gives better looking and higher coverage bonds.
• Soft, non-dimpling glue lines

Build height: 5mm
Maximum patient weight: 125kg
Material: Stainless steel
Weight: 84g

Build height: 24mm
Maximum patient weight: 150kg
Material: Titanium
Weight: 101g

strong quality, 3 threads, conical shape
Designated use:
- effective to even out differing volume
- strong fabric
- this type without opening for pin may be worn directly on the skin
Characteristics:
- very comfortable wear and warming effect due to wool content
- during wearing, the stocking shape adapts to the individual shape of the residual limb
- provides excellent cushioning effect and climate management, since wool may absorb abundant moisture, without feeling damp
Material:
- 90 % (WO) wool, 10% spandex
- colour: off-white
- machine washable at 30°C

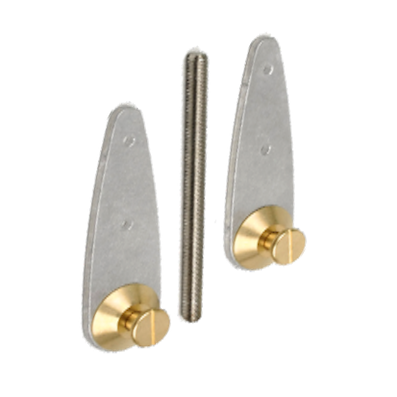

kit with 5 pairs of joints and 1 assembly threaded rod

kit with 5 pairs of joints and 1 assembly threaded rod

Body drop forged. Jaws chemically blackened, head bright polished. Notched jaws for crimping terminals to DIN 46228.
Plastic coated handles.

230mm

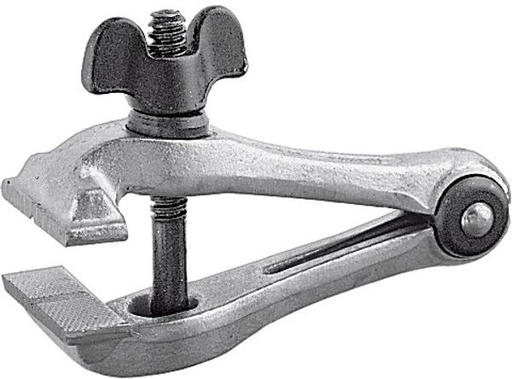

Forged steel; wide jaws with prism. Reinforced shank with secure hinge guide and enclosed special spring. Spindle with trapezoidal thread and strong butterfly nut.
overall length: 120 mm
Jaw width: 45 mm
Jaw capacity: 22 mm

Stamped steel
Width of the jaws: 40mm

Suitable for:

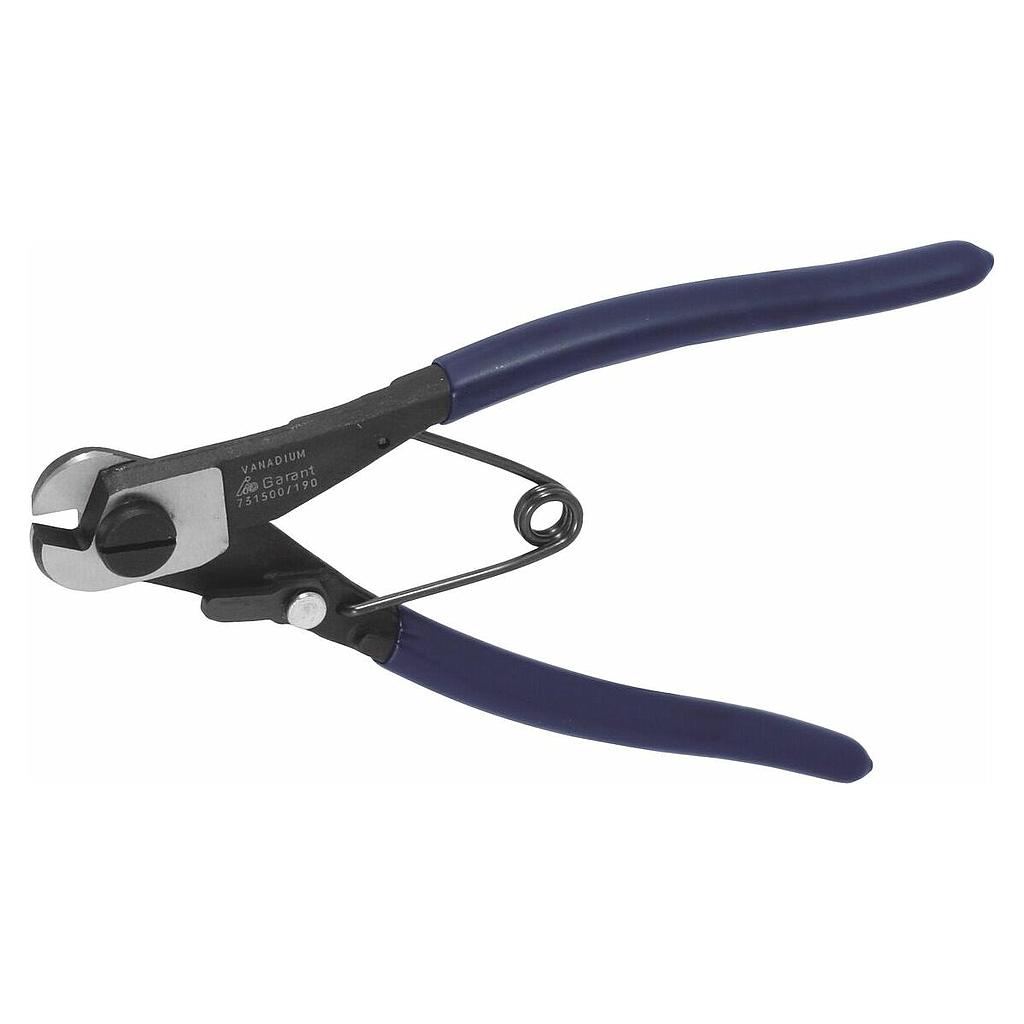

Wire cable cutter

Strong design, fully drop forged from steel. With screw joint and opening spring. Cutter edge hardness 64 HRC. Handles with light PVC coating.
For cutting wire ropes, multi-core cables etc.
Chrome vanadium special steel, oil-hardened.
overall length: 190 mm
for wire ropes/round mild steel bar: ⌀8 mm
for wire ropes (maximum 1600 N/mm2): ⌀5 mm
for round steel bar (maximum 1200 N/mm2): ⌀4 mm

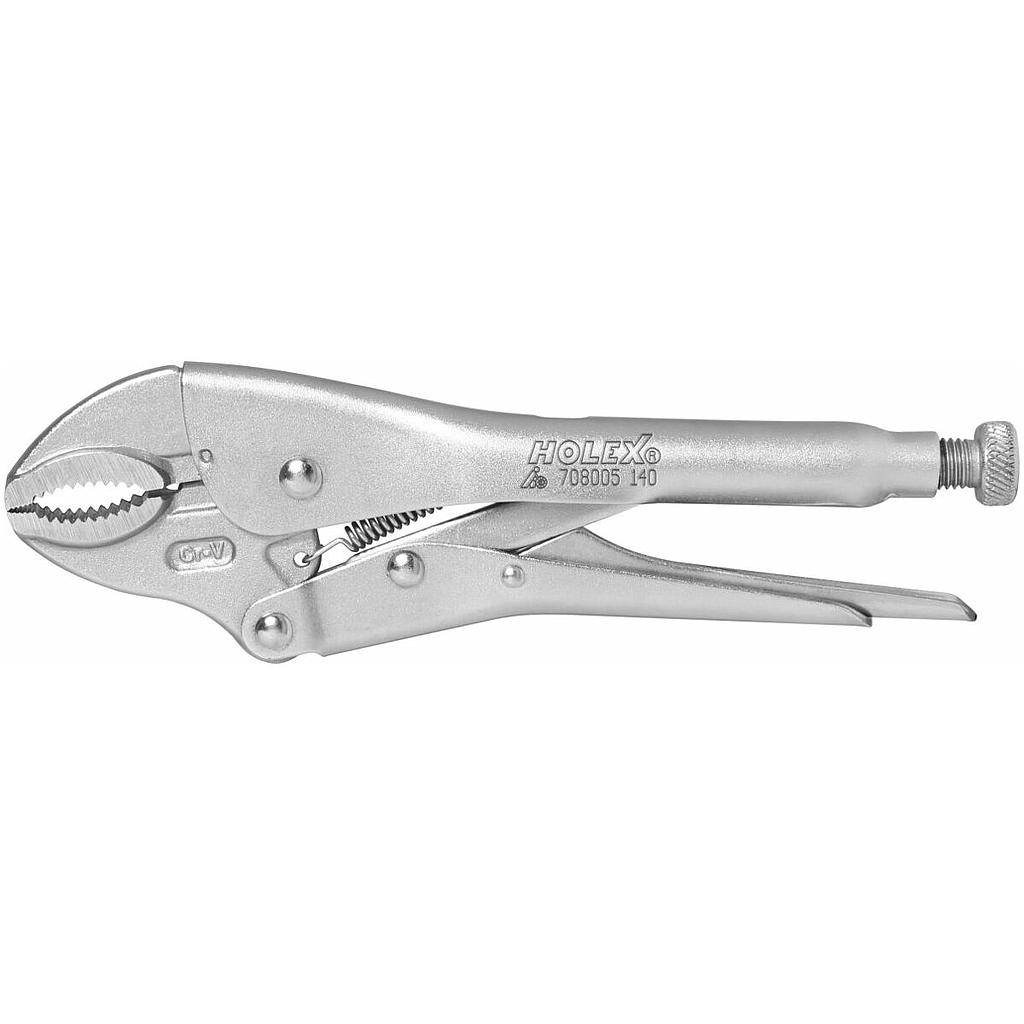

Serrated jaws and powerful steel spring clamp body. Distance and clamping pressure adjustable via a knurled screw. Nickel plated pliers.
Oval jaw shape

Serrated jaws and powerful steel spring clamp body. Distance and clamping pressure adjustable via a knurled screw. Nickel plated pliers.
Oval jaw shape

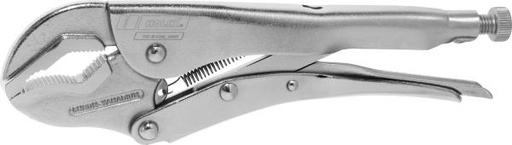

Serrated jaws and sturdy spring steel body. Span and clamping pressure adjustable with a knurled screw. Fully nickel-plated.
Jaw shape double Vee.
For clamping profiled and flat materials. Clamping force up to 10,000 N.
Material: Jaws of chrome vanadium steel, drop forged.
Jaw capacity: 40 mm
overall length: 250 mm
Jaw length: 35 mm
ETOOPLIL0825
74-00872

With special slim head and long handles. High strength precision ground cutting edges.
Standard: DIN ISO 9242
Material: Special tool steel, drop-forged, and oil-hardened.
Cutting capability: medium hard wire up to ⌀2.5 mm
overall length: 220 mm

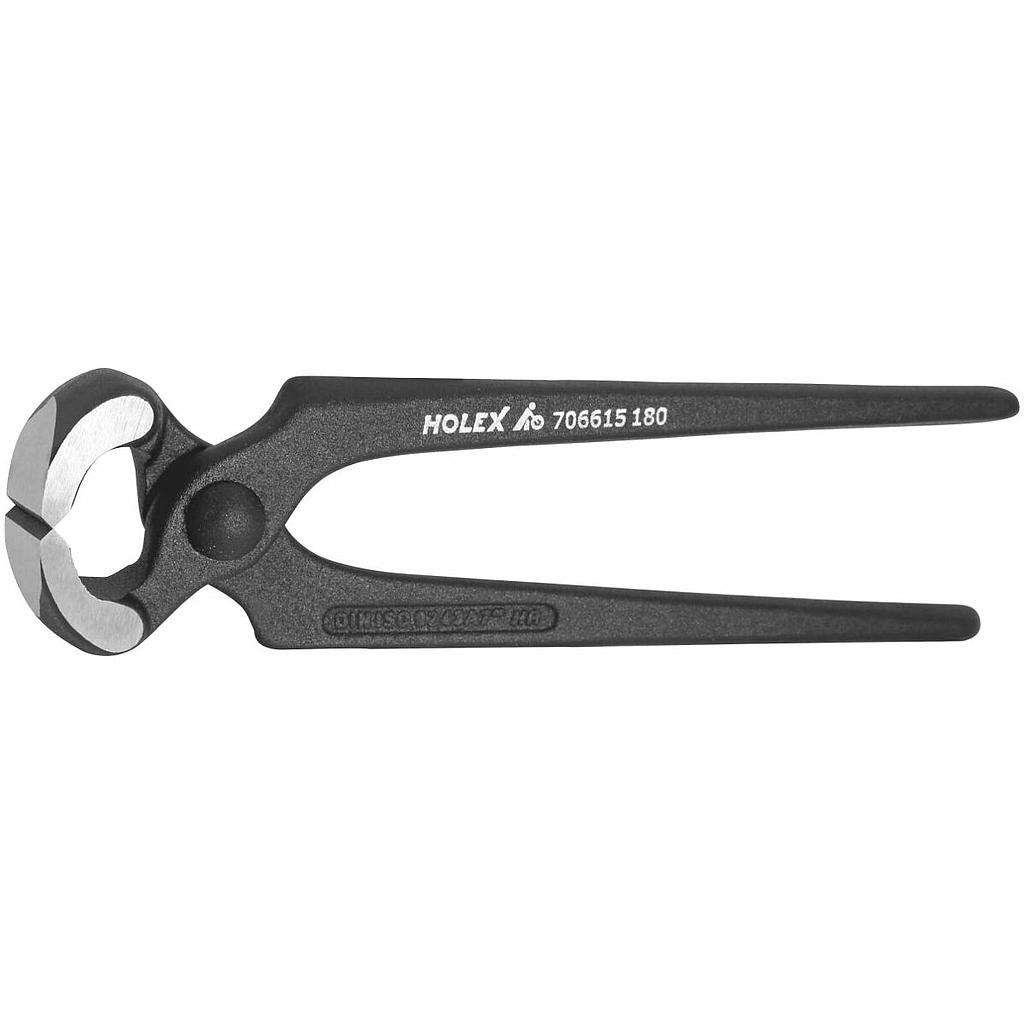

Sturdy model, wear resistant. Jaws chemically blackened, head bright polished.
Standard: DIN ISO 9243
Material: Special tool steel, drop-forged, and oil-hardened.
Surface: chemically blackened, head bright polished
Cutting capability: medium hard wire up to ⌀2 mm
overall length: 210 mm

Sturdy model, wear resistant. Jaws chemically blackened, head bright polished.
Standard: DIN ISO 9243
Material: Special tool steel, drop-forged, and oil-hardened.
Surface: chemically blackened, head bright polished
Cutting capability: medium hard wire up to ⌀2 mm
overall length: 180 mm

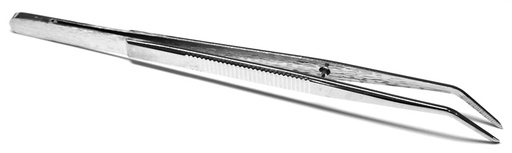

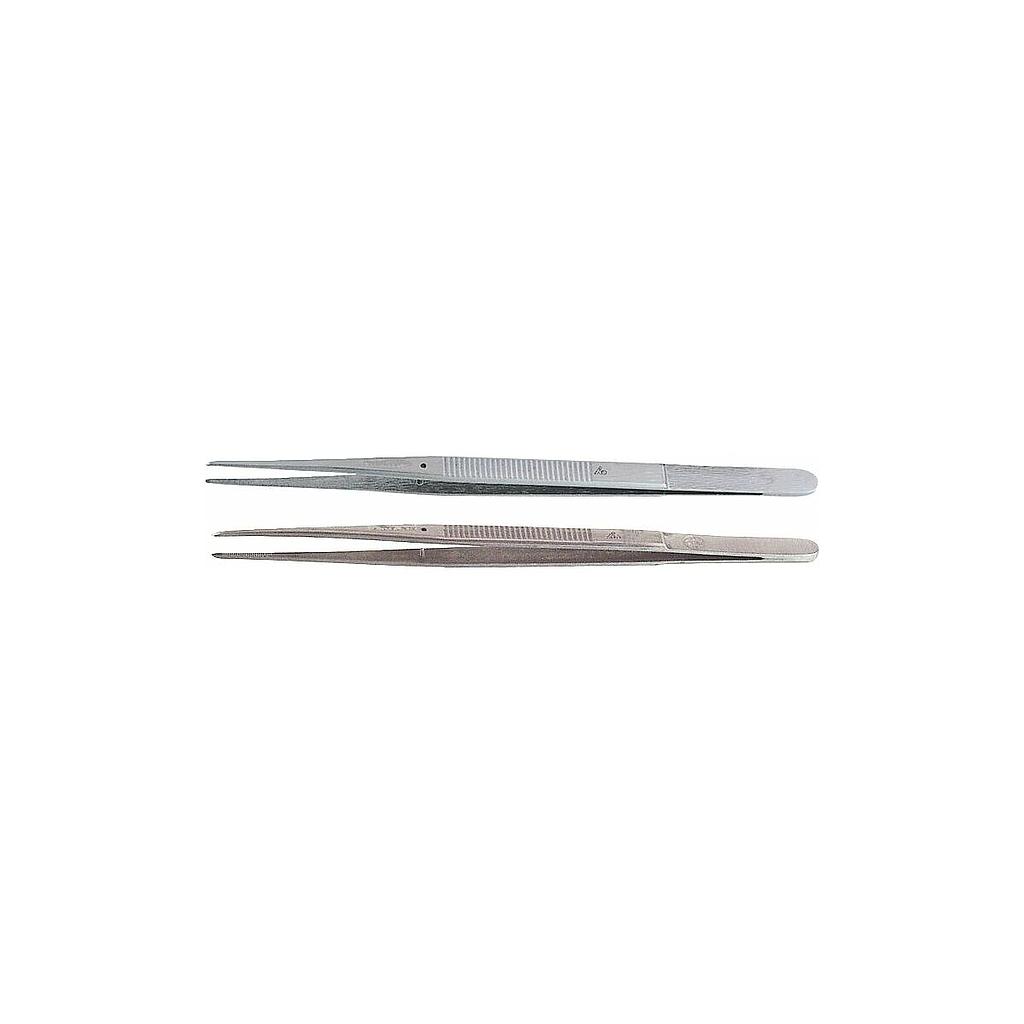

Inside serrated.
Of special steel, nickel-plated (No. 727520 / 7560 painted black).
Length: 150 mm
Tip characteristics: narrow/angled, inner face serrated
Point form: 22b
Surface of tweezers: nickel-plated
Tip exchangeable: no

Striated inside

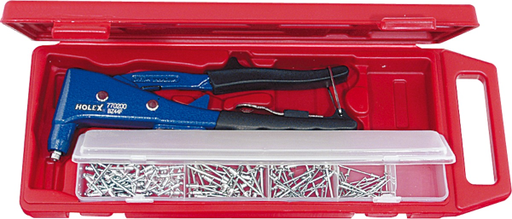

Hand pop riveter with 50 each aluminium pop rivets D×L: 2.4×5.5 / 3.2×6.3 4.0×6.3 / 4.8×6.0 mm
Comprising a high quality hand pop riveter with lever action and an assortment of 200 aluminium blind rivets, in strong plastic case
74-01208

for leather and fine metal sheets

Replacement wheel with needle bearing and quick-change axle.
Technical data
⌀ wheel 20 mm
Wheel width 6.2 mm
Roll bore 7.8 mm

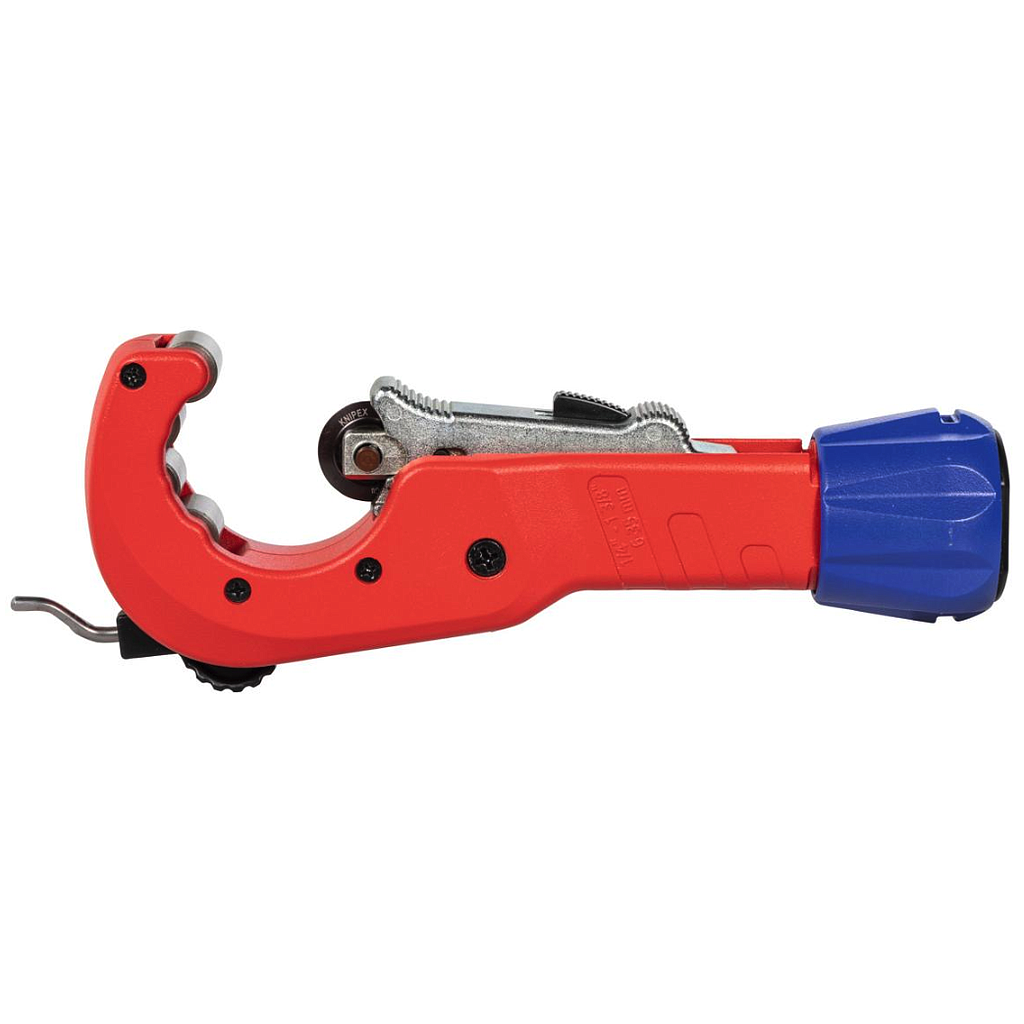

Lightweight and durable magnesium metal body with needle bearing and thumbwheel guide rollers. Hand deburrer retractable in the body. With spare rollers.
Advantages):
Automatic hold and tightening on the tube thanks to the quick one-hand QuickLock adjustment.
Quick and precise positioning of the wheel according to different tube diameters.
Use:
Universal for cutting thin-walled stainless steel, copper and aluminum tubes (up to 2 mm thick).
Technical data
For ⌀ ext. pipe: 6mm - 35mm

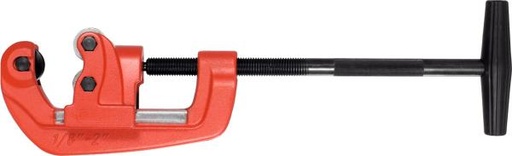

Body of stainless steel drop forged. Wear-resistant spindle with plastic handle. Cutter wheel for steel pipes of stainless steel, accurately hardened for long tool life. Guide rollers of special steel; chrome-plated.
For clean and right-angled cutting off of pipes.
The external burr is rolled over automatically when cutting. The cut pipe end is immediately ready for thread cutting.
Cutter wheel: ⌀32 mm
Cutter wheel width: 19 mm
Cutter wheel bore: 9 mm
for pipe outer: ⌀1/8 − 2 inch
Number of guide rollers: 2
Number of cutter wheels: 1
ETOOCUTTPI51

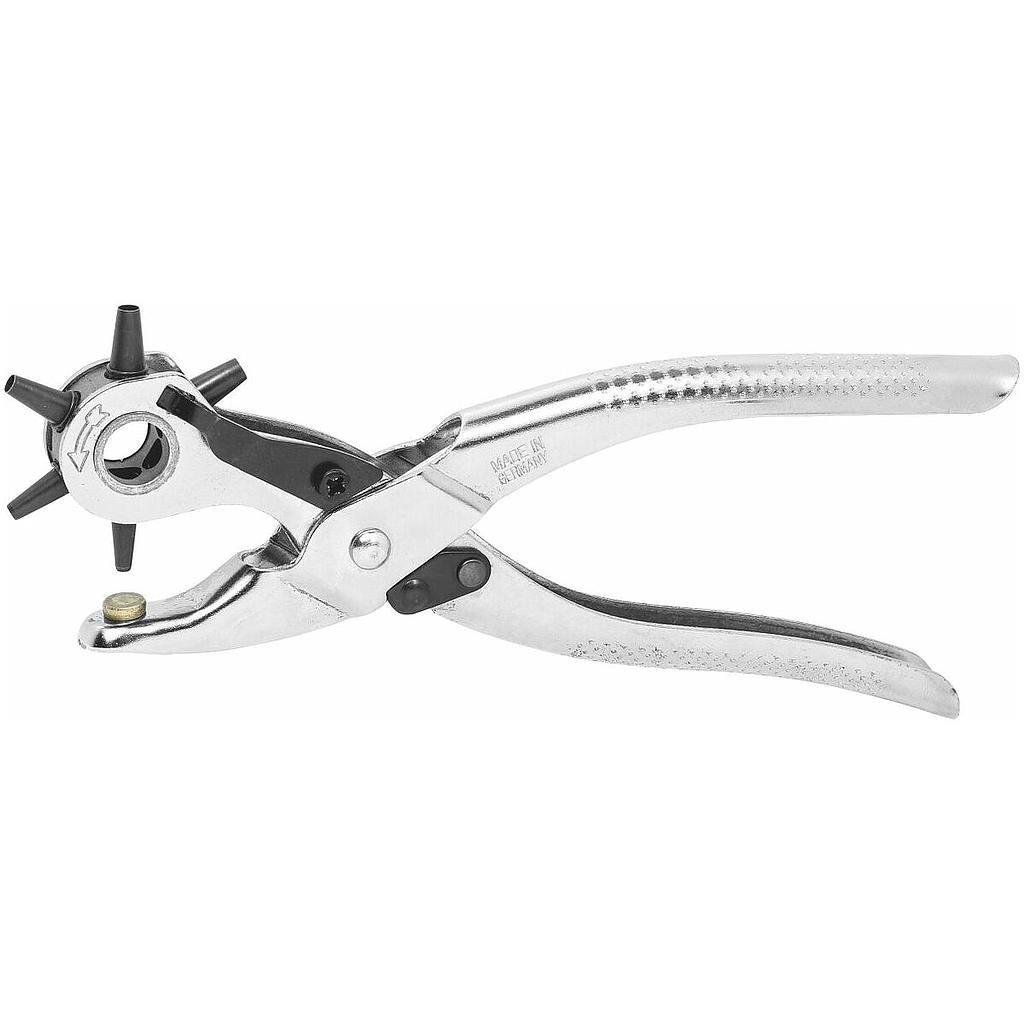

Strong pressed steel shanks with rotating wheel and lock. With 6 different hollow punches (⌀ 2.0; 2.5; 3.0; 3.5; 4.0 and 4.5 mm).
Use a soft material, e.g. leather, as an underlay to avoid damage when a lot of pressure is applied.

for perforating leather, fabric and plastic, with 6 interchangeable nozzles with a diameter of 2.0 / 2.5 / 3.0 / 3.5 / 4.0 / 5.0 mm, with opening spring and locking system, powder coated for good rust protection, gripper body and nozzles: special tool steel, oil hardened
ETOOPUNCRP01
74-00839

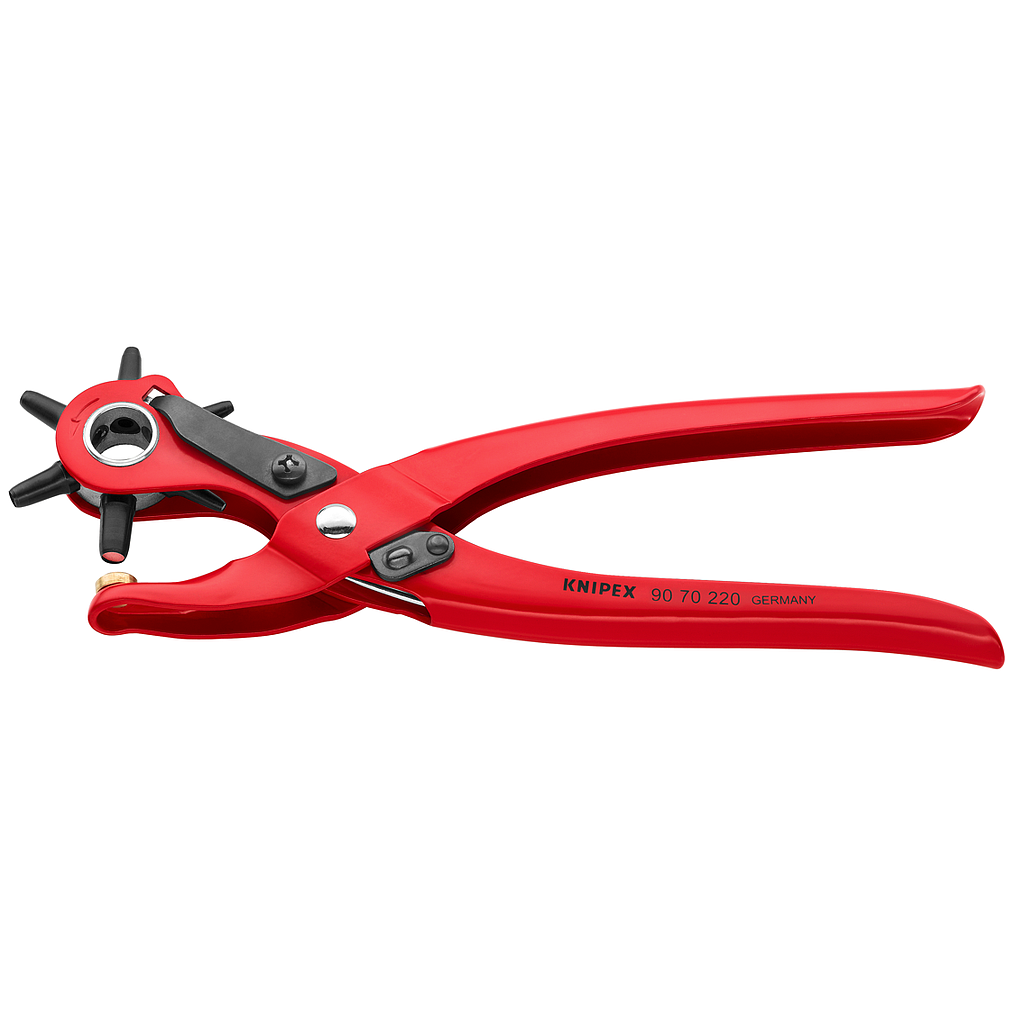

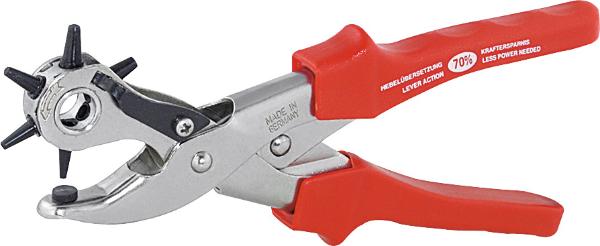

Strong pressed steel shanks with rotating wheel and lock. With 6 different hollow punches (2.0; 2.5; 3.0; 3.5; 4.0 and 4.5 mm ⌀).
70% less force required due to efficient leverage. Ergonomically shaped plastic grips.
For soft materials such as leather use an underlay to avoid damage when a lot of pressure is applied.
overall length: 250 mm

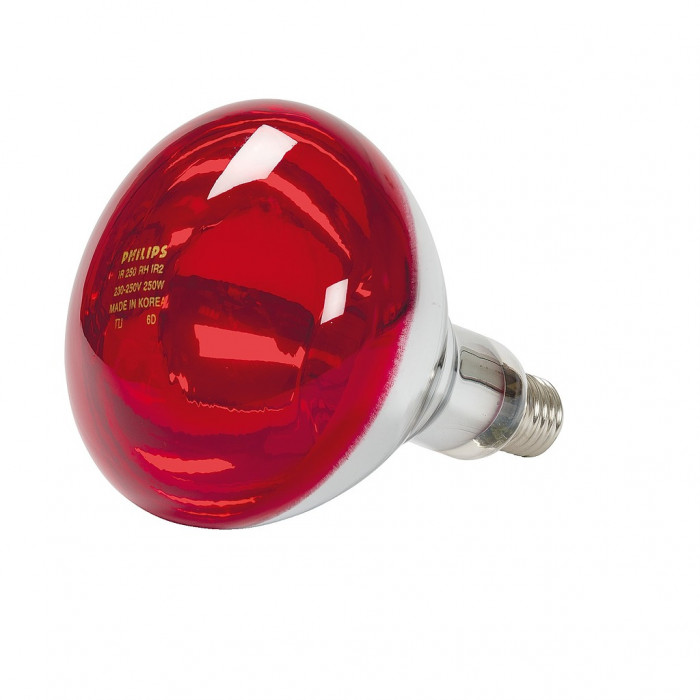

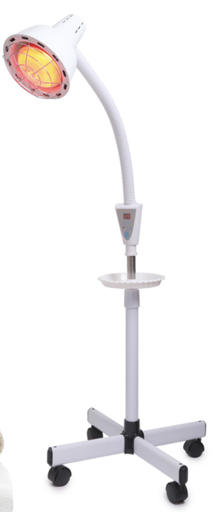

250W
