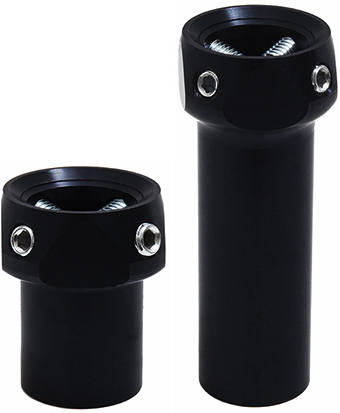

Adapter tubes used to connect lower extremity modular prosthetic parts.

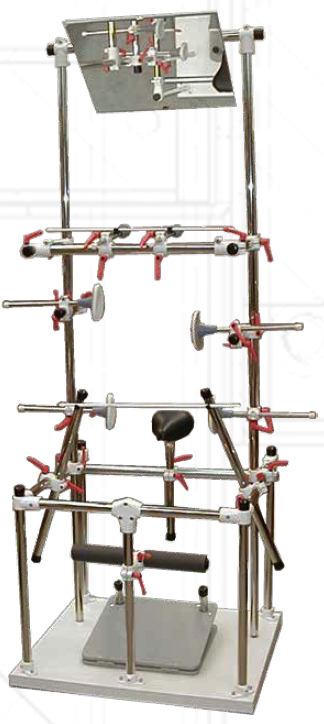

Included:
Basic-unit Assistant-System
Foot-plate Assistant-System
Scoliosis-unit Assistant-System
Mirror-unit Assistant-System
Head strap with frame Assistant-System
Block and tackle Assistant-System
Seat- / stand-support (with fixing parts)

Equipment:
Quick-action clamping device, two inflatable clamping devices for attaching sockets, holder for knee joint adapter inserts, integrated measuring accessories, e.g. mm rulers, goniometers, height-adjustable footplate, TT and TF alignment pads. To be used for bench alignment of Ottobock modular lower limb prostheses (TF and TT) according to Ottobock alignment recommendations
Dimensions:
WxDxH 800 x 900 x 2,100 mm
31 1/2 x 35 3/8 x 82 5/8 inch
Scope of delivery:
Includes one right and one left adapter insert for Ottobock knee joints (adapter insert article numbers: 743Y579, 743Y580, 743Y581, 743Y582, 743Y583, 743Y584, 743Y608, 743Y629, 743Y681)

Equipment:
Quick-action clamping device, two inflatable clamping devices for attaching sockets, holder for knee joint adapter inserts, integrated measuring accessories, e.g. mm rulers, goniometers, height-adjustable footplate, TT and TF alignment pads. To be used for bench alignment of Ottobock modular lower limb prostheses (TF and TT) according to Ottobock alignment recommendations
Dimensions:
WxDxH 800 x 900 x 2,100 mm
31 1/2 x 35 3/8 x 82 5/8 inch
Scope of delivery:
Includes one right and one left adapter insert for Ottobock knee joints (adapter insert article numbers: 743Y579, 743Y580, 743Y581, 743Y582, 743Y583, 743Y584, 743Y608, 743Y629, 743Y681)

The heel height measuring device comes with an integrated database for storing user data and orders, a multilingual display (DE, EN, NL, FR) with backlight, colour touchscreen with measurements in cm, mm or inches as well as a sturdy and easy-to-clean lower plate with crosshairs to help you position measuring objects precisely. Straightforward zero point calibration (alternative: using the lower plate(s) as the reference point).
Dimensions WxDxH: 500 x 400 x 600 mm
Electrical connection in V/Hz/kW: 1 x 230 / 50–60 / 0.1
Colour: light grey [RAL 7035]
Material: Steel, stainless steel, aluminium
Type of Planning and Equipment: Orthopedic Shoe Technology and Leather Processing

- Adapter ring, holder for suction hose, for clamping in a vice
- Structure made of square and galvanized steel tubes
- Holder for SACH* foot adapter 743Y34 Cylindrical head screw 501T3=M10X60 SACH* foot adapter with threaded connection 2R8=M10 Single-channel suction hose 755R90, dimensions WxDxH 42 x 30 x 400 mm, connection Ø 13 mm Two-channel suction hose 755R100, dimensions W x D x H 42 x 30 x 520 mm, connection Ø 6 mm
- 260 x 1,020 x 300mm, 10kg

110–240 V / 50–60 Hz

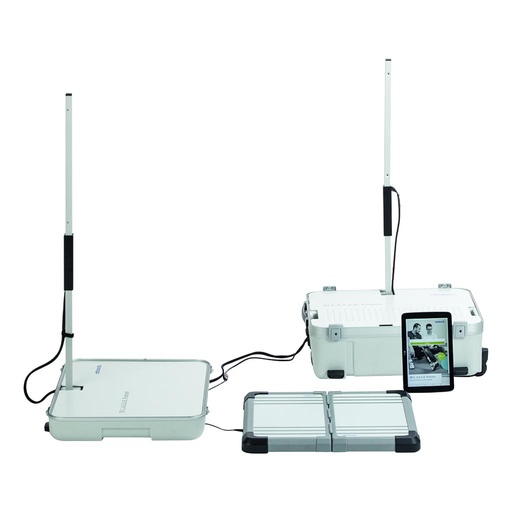

During measurement, it is possible to check the effect of joint stabilization with ground reaction forces.
Thanks to the adjustment of plantar flexion under load, the precise adjustment of the medical device can be performed very quickly and in a targeted way:
- Easy transportation
- Modern and functional design
- Data logging of the exhaustive and automatic equipment
- Simplifies communication with caregivers
Tablet with help function:
- Synchronous measurement and representation of the line of force of the two legs with display of the distribution of the load
- Measurement of vertical forces just as in L.A.S.A.R. Posture
- Complete tutorials, help functions and integrated alignment recommendations
- Simplified transition to another view of the camera
- Representation of vertical and horizontal forces indicating actual load
- Screen capture function to quickly record and analyze the conditions of the measurement
- Complete patient database with instrumentation flow, comparison view and possibility of creating a PDF

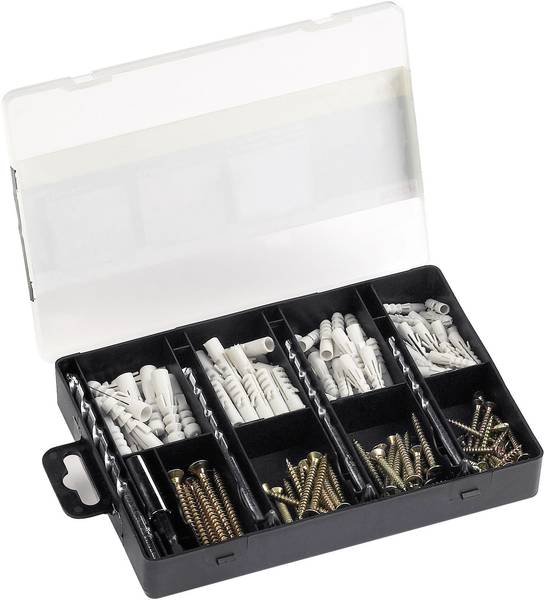

4 stone drill Ø 5/6/7/8 mm
3 x screwdriver bits L = 25 mm PZ 2/2/2
75 x 3.5 x 30 screws: 25 pieces, 20 pieces 4.0 x 35, 20 pieces 4.0 x40, 10 pieces 5.0 x 50
90 plugs: 30 pieces ø 5 mm, 25 pieces ø 6 mm, 20 pieces ø 7 mm, 15 pieces ø 8 mm
Universal holder, magnetic.

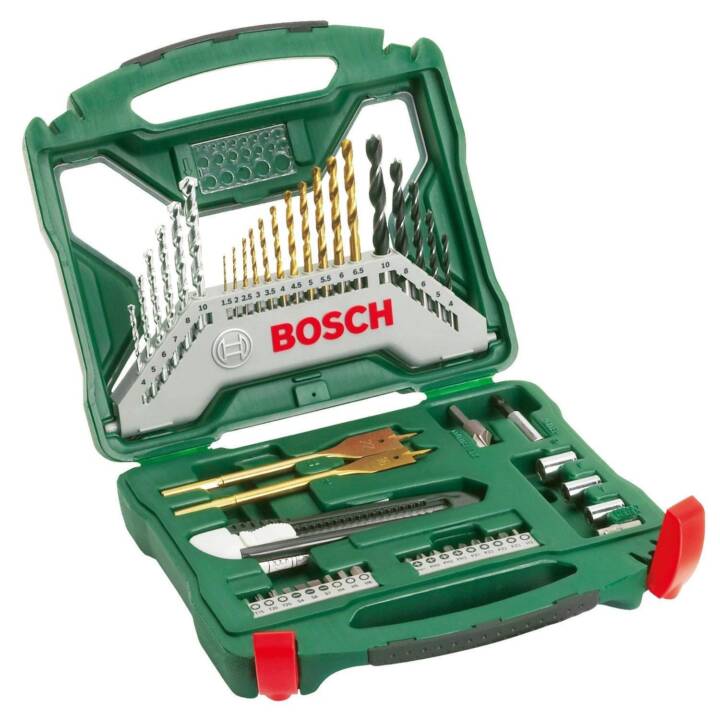

Ideally equipped to handle virtually any task: High-performance DIY enthusiast set for precise, clean drilling in metal, masonry and wood, as well as high-grade screwdriver bits and nut setters for the most commonly used screw head types. Comes with a universal carpet knife.
Features & Benefits
11 metal drill bits, Ø 1.5-6.5 mm, with titanium nitride coating that excel through their fast drilling progress and particularly long service life (not suitable for use in aluminium).
6 robust carbide-tipped masonry drill bits, Ø 4-10 mm, that impress with their long service life, fast stock removal, low heat development and precision.
5 sharp wood drill bits, Ø 4-10 mm, with centring tip and shoulder cutter for precise, tear-free hole drilling, as well as 2 spade bits diameter 16/22 mm with titanium nitride coating.

11 HSS-TiN metal drill bits, Ø 1.5-6.5 mm
6 masonry drill bits, Ø 4-10 mm
5 wood drill bits, Ø 4-10 mm
2 spade bits, Titanium, Ø 16/22 mm
18 screwdriver bits, L=25 mm
PH 1/2/2/3
PZ 1/2/2/3
S 4/6/7
HEX 3/4/5/6
T 15/20/25
3 nutsetters, Ø 7/8/10 mm
1 diameter gauge
1 knife
1 adapter for nut setters
1 universal holder, magnetic
1 countersink

Handle with rotating centring cap and quick-spinning zone. Blade of special steel.
For description see No. 664600, 668800, 625770 and 627470.

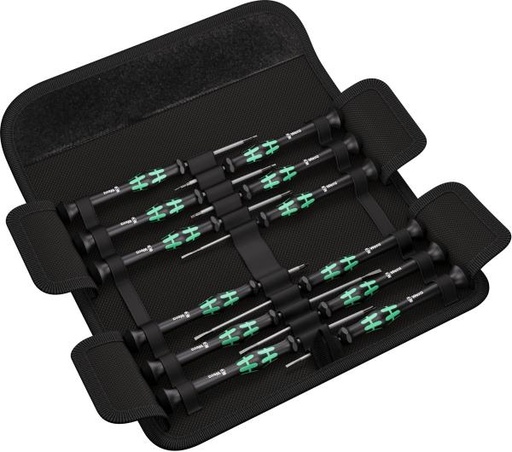

12 pieces in a textile tool roll. 1 each slot-head screwdriver No. 664600 size 1.5; 1.8; 2; 2.5; 3. 1 each screwdriver for Phillips No. 668800 size 00 and 0. 1 each screwdriver for Torx ® similar to No. 625770 size TX5 and TX6. 1 each hexagon screwdriver No. 627470 size 0.9; 1.5; 2

Single piece, i.e. shank and tip of one piece. Shanks for direct fitting in electric screwdrivers.
With centre hole for socket head screws with a tamper-proof pin.
Application: For hexagon socket head screws DIN 7426.
Standard: DIN ISO 1173
Material: Chrome vanadium special alloy, high strength.
Drive profile: Hexagon screwdriver with hole
Hexagon: 6 mm
overall length: 89 mm
Bit hexagon shank: E6.3

Single piece, i.e. shank and tip of one piece. Shanks for direct fitting in electric screwdrivers.
With centre hole for socket head screws with a tamper-proof pin.
Application: For hexagon socket head screws DIN 7426.
Standard: DIN ISO 1173
Material: Chrome vanadium special alloy, high strength.
Drive profile: Hexagon screwdriver with hole
Hexagon: 5 mm
overall length: 89 mm
Bit hexagon shank: E6.3

Single piece, i.e. shank and tip of one piece. Shanks for direct fitting in electric screwdrivers.
With centre hole for socket head screws with a tamper-proof pin.
Application: For hexagon socket head screws DIN 7426.
Standard: DIN ISO 1173
Material: Chrome vanadium special alloy, high strength.
Drive profile: Hexagon screwdriver with hole
Hexagon: 4 mm
overall length: 89 mm
Bit hexagon shank: E6.3

Single piece, i.e. shank and tip of one piece. Shanks for direct fitting in electric screwdrivers.
With centre hole for socket head screws with a tamper-proof pin.
Application: For hexagon socket head screws DIN 7426.
Standard: DIN ISO 1173
Material: Chrome vanadium special alloy, high strength.
Drive profile: Hexagon screwdriver with hole
Hexagon: 3 mm
overall length: 89 mm
Bit hexagon shank: E6.3

Single piece, i.e. shank and tip of one piece. Shanks for direct fitting in electric screwdrivers.
With centre hole for socket head screws with a tamper-proof pin.
Application: For hexagon socket head screws DIN 7426.
Standard: DIN ISO 1173
Material: Chrome vanadium special alloy, high strength.
Drive profile: Hexagon screwdriver with hole
Hexagon: 2 mm
overall length: 89 mm
Bit hexagon shank: E6.3

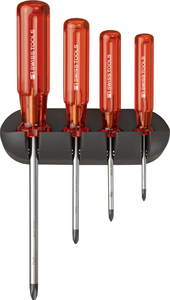

Classic screwdrivers set with wall mount
PH 0; PH 1; PH 2; PH 3
for Phillips screws
precise, true-to-size tips, optimal fit in the screw heads
slim handle, compact and for universal applications
high-quality materials used, impact-resistant and oil/gasoline resistant
special alloy based on spring steel, exceptional elasticity coupled with high grade hardening
laser-marked serial number, lifetime guarantee

Multimatized handle with grip zone optimized in terms of torque and comfort

Multimatized handle with grip zone optimized in terms of torque and comfort

Multimatized handle with grip zone optimized in terms of torque and comfort
74-01214

Multimatized handle with grip zone optimized for torque and comfort
74-01213

Multimatized handle with grip zone optimized for torque and comfort
74-01705

Multimatized handle with grip zone optimized for torque and comfort,
74-01704

Multimatized handle with grip zone optimized for torque and comfort
74-01216

Multimatized handle with grip zone optimized for torque and comfort
74-01215

Classic screwdriver set in a high-quality paperboard box

for slotted screws, universal applications
parallel tip, optimum transmisson of force, no cam-out
slim handle, compact and for universal applications
high-quality materials used, impact-resistant and oil/gasoline resistant
special alloy based on spring steel, exceptional elasticity coupled with high grade hardening
laser-marked serial number, lifetime guarantee

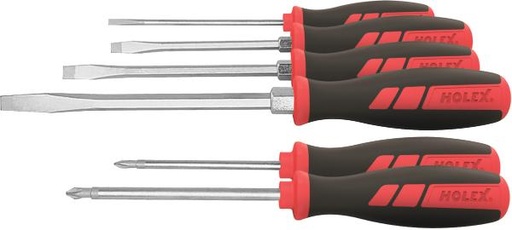

Multi-component power handle with grip zone optimised for torque and comfort. Blade of chrome vanadium steel.
1 each slot-head screwdriver size 3.5; 5.5; 7; 8.
1 each screwdriver for Phillips size 1; 2.

Long style with wide chamfer; forged; ground bright finish. Each chisel is tested for hardness and edge holding properties.
Material: Top quality special steel with wooden handle.
overall length: 250 mm
Blade width: 16 mm

Long style with wide chamfer; forged; ground bright finish. Each chisel is tested for hardness and edge holding properties.
Material: Top quality special steel with wooden handle.
overall length: 235 mm
Blade width: 10 mm

Long style with wide chamfer; forged; ground bright finish. Each chisel is tested for hardness and edge holding properties.
Material: Top quality special steel with wooden handle.
overall length: 215 mm
Blade width: 6 mm

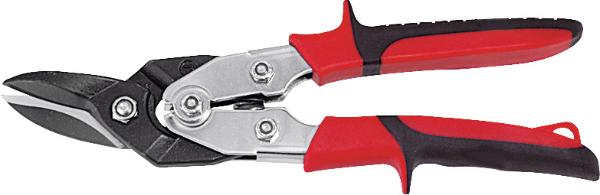

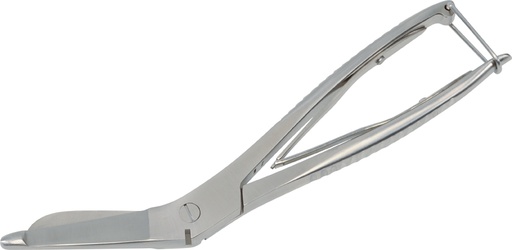

Micro-serrated. Snip jaws made of stainless steel (HRC 58 − 60), handles of sheet steel, nickel plated. 2-component handle with non-slip insert of soft material, easy on the hand.
Cutting capacity: Metal sheets up to 1.8 mm, stainless steel sheets up to 1.2 mm.
Application:
For curved and short straight cutting.
74-01713

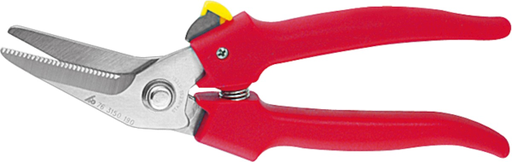

Made of stainless steel, with return spring.
Offset jaws, plastic coated handles.
Widely applicable. Ideal for thin sheet metal, plastics, leather, cardboard, paper, cord, fabrics etc.
overall length: 190 mm
Length cutter: 40 mm

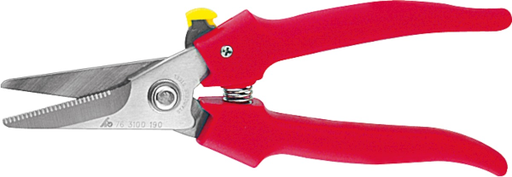

Made of stainless steel, with return spring.
Straight jaws, plastic coated handles.
Widely applicable. Ideal for thin sheet metal, plastics, leather, cardboard, paper, cord, fabrics etc.
overall length: 140 mm
Length cutter. 30 mm

260mm

210mm

240mm
74-00841
719G2

74-00806, 719G1

74-00692

150mm

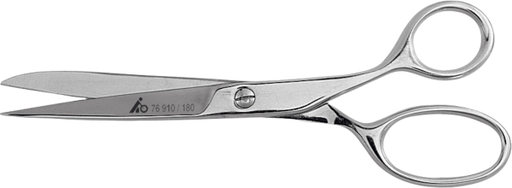

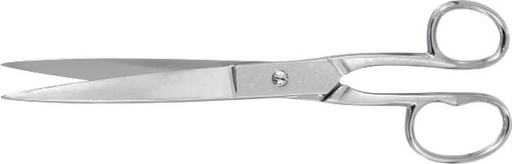

Strong, very long, and slim blades; fully nickel-plated. Made of stainless steel.
Paper, fabric, thin material, and much more.
overall length: 250 mm

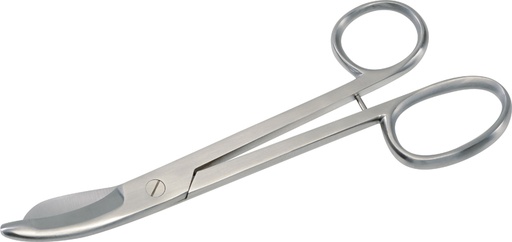

Robust blades. Made of stainless steel

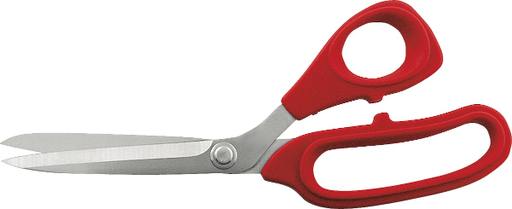

Soft ergonomic plastic handles. Special stainless steel blades (52 - 54 HRC).
Paper, cardboard, fabric, leather, rubber, rope, etc.
Total length: 250 mm

Ergonomic soft-grip handles of plastic. Blades of non-rusting stainless steel (52 - 54 HRC).
Paper, cardboard, fabric, leather, rubber, rope, etc.
Total length: 225 mm
74-00786

Ergonomic soft-grip handles of plastic. Blades of non-rusting stainless steel (52 - 54 HRC).
Paper, cardboard, fabric, leather, rubber, cord, and much more.
overall length: 200 mm

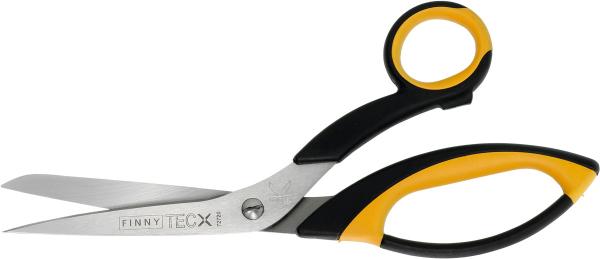

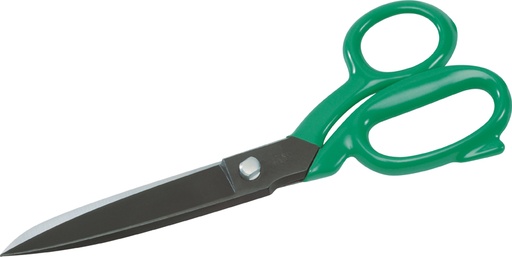

For cutting TF sleeves, sleeves with textile coating

Fabric shears with micro toothing and ergonomic 2-component handles. Blades of stainless steel.
Glass fibre, aramides, and many more
Length blade: 85mm
overall length: 200mm
